Oil Pump: Construction

The pump consists of a parachoid rotor pair, a housing and a cover. The inner rotor has nine teeth and the outer rotor has ten teeth.

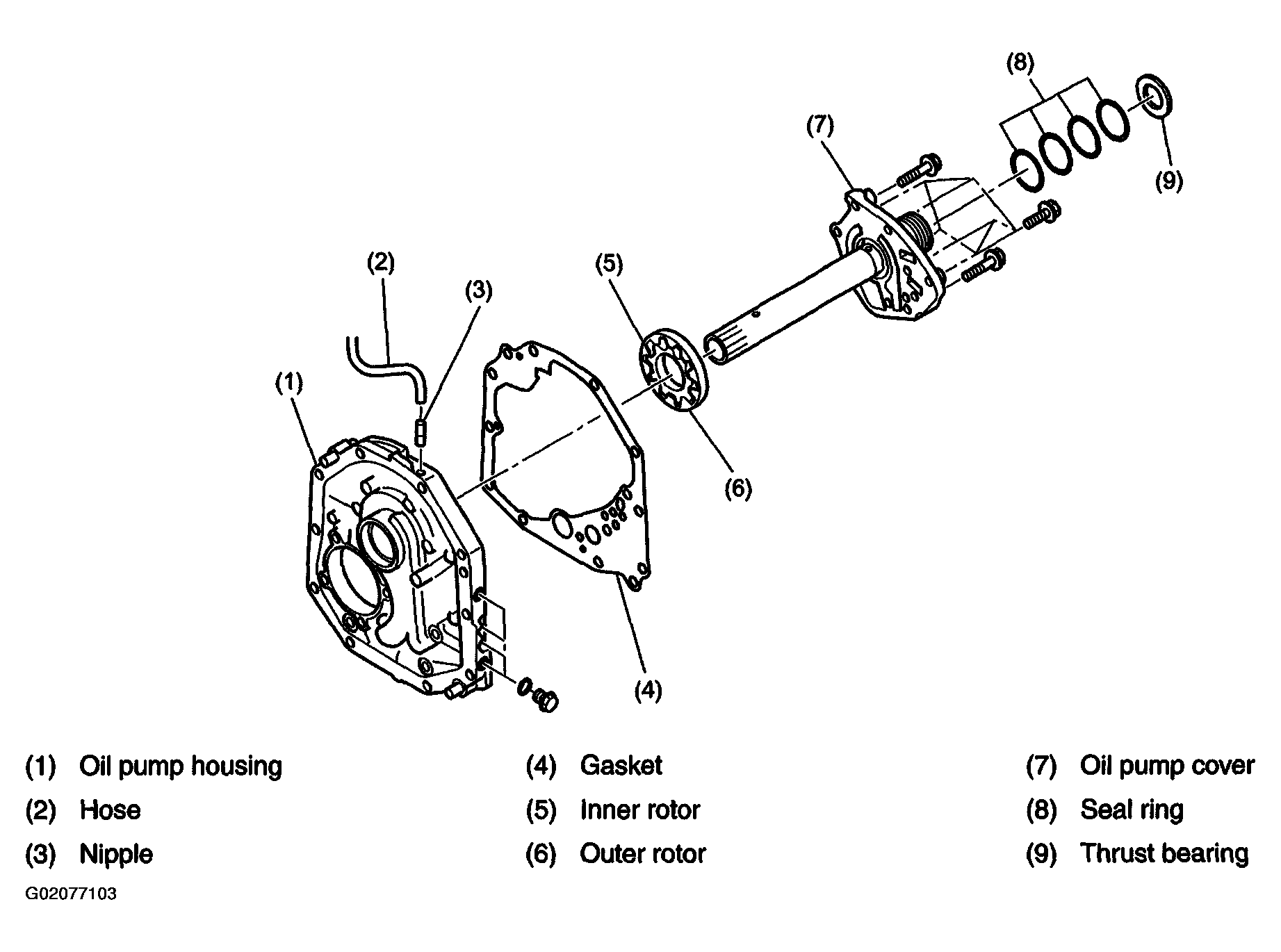

Fig 1: Exploded View Of Oil Pump

Courtesy of SUBARU OF AMERICA, INC.
