Differential Gear

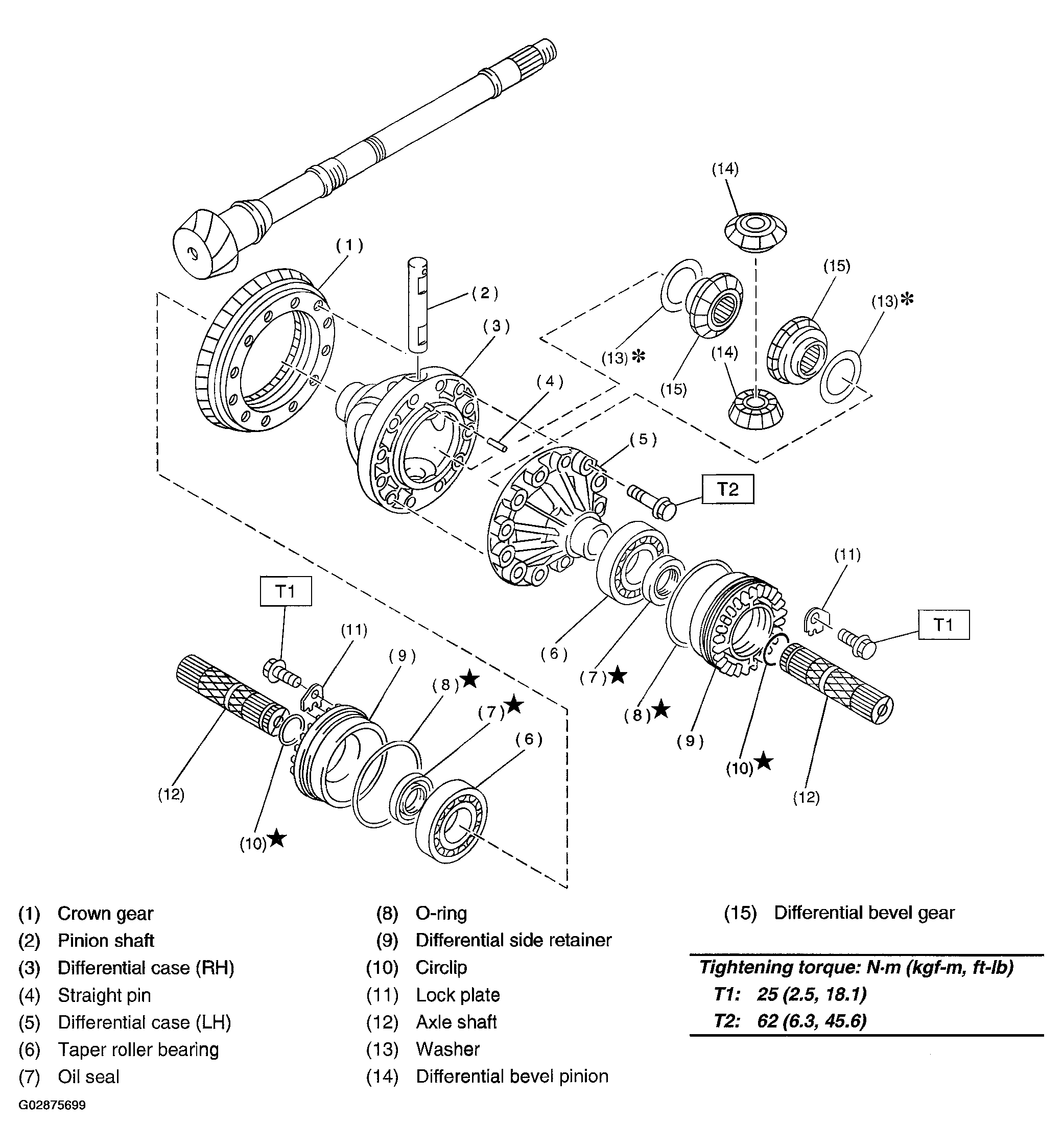

Fig 1: Exploded View Of Differential Gear With Torque Specifications
G02875699Courtesy of SUBARU OF AMERICA, INC.
