Transmission Mounting

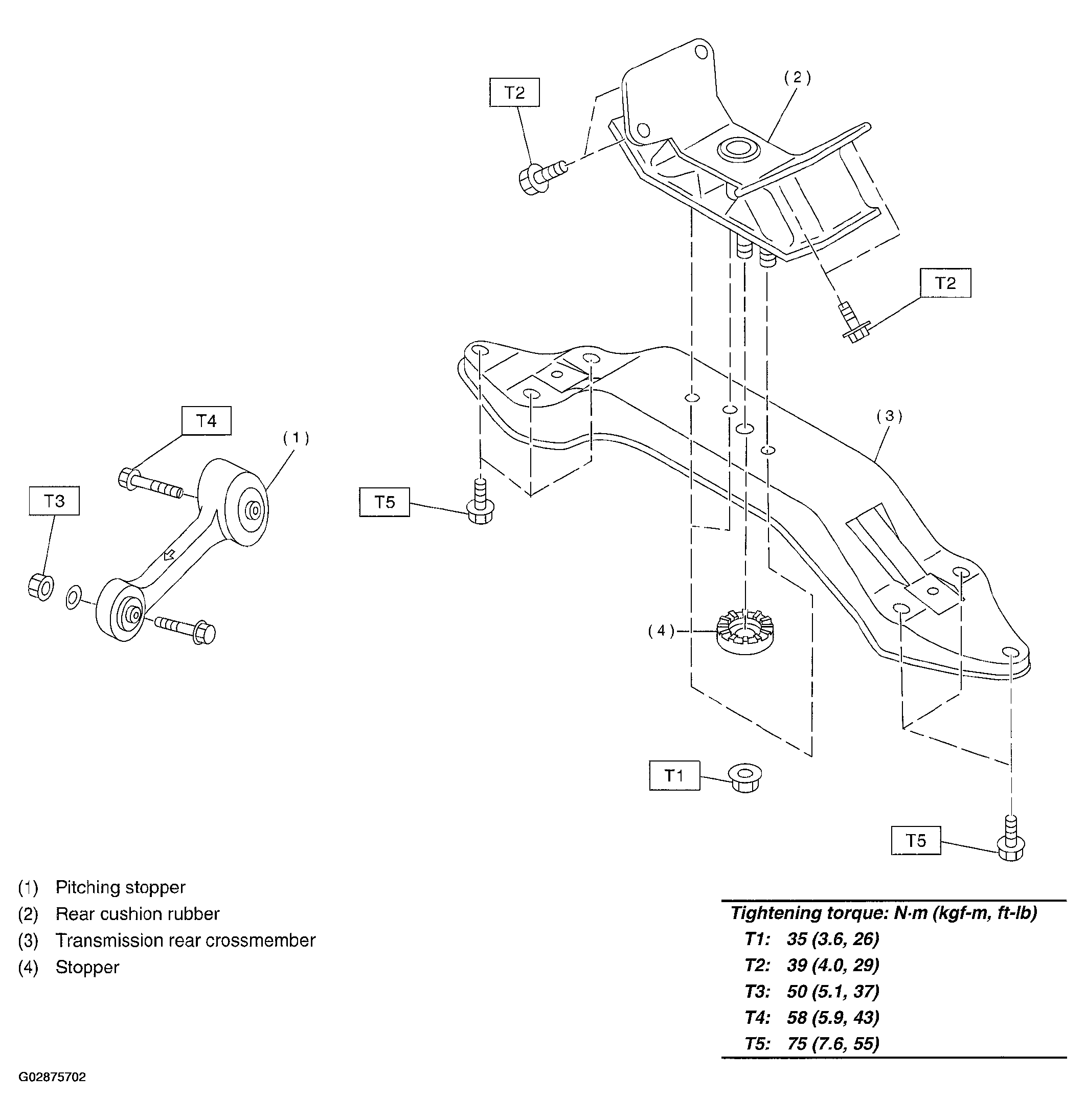

Fig 1: Exploded View Of Transmission Mounting With Torque Specifications
G02875702Courtesy of SUBARU OF AMERICA, INC.
