Reduction Drive Gear: Disassembly

  1. Take out the seal rings.

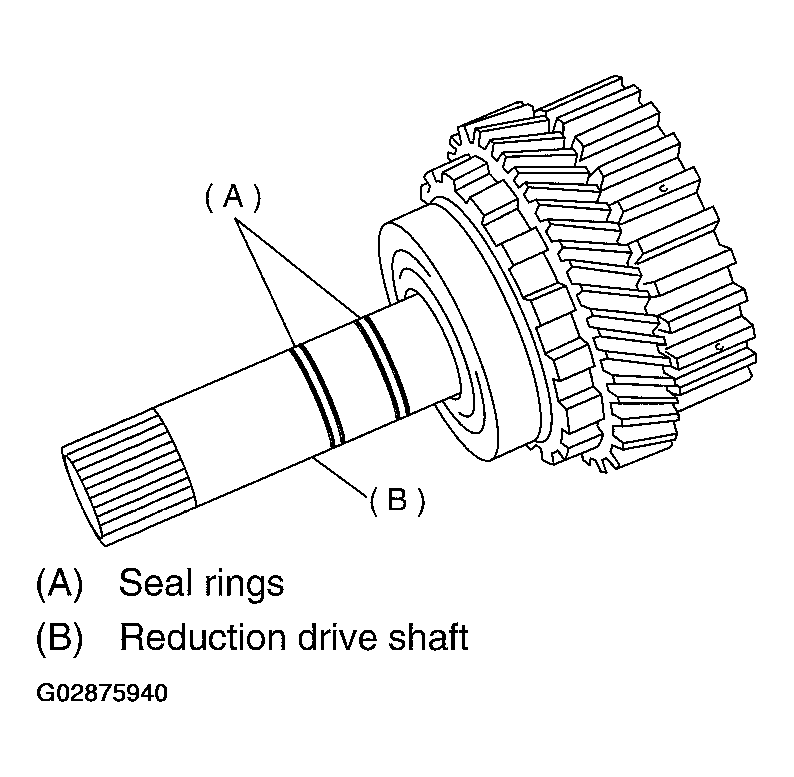

    Fig 1: Removing Seal Rings
    G02875940Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove the ball bearing.
    1. ST 498077600 REMOVER
    Fig 2: Removing Ball Bearing
    G02875941Courtesy of SUBARU OF AMERICA, INC.
  3. Using a press, remove the reduction drive gear.
    Fig 3: Removing Reduction Drive Gear
    G02875942Courtesy of SUBARU OF AMERICA, INC.
