Side Retainer

WARNING: This page is about a different variant/trim than selected.
  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.
    1. ST 499797000 INSTALLER

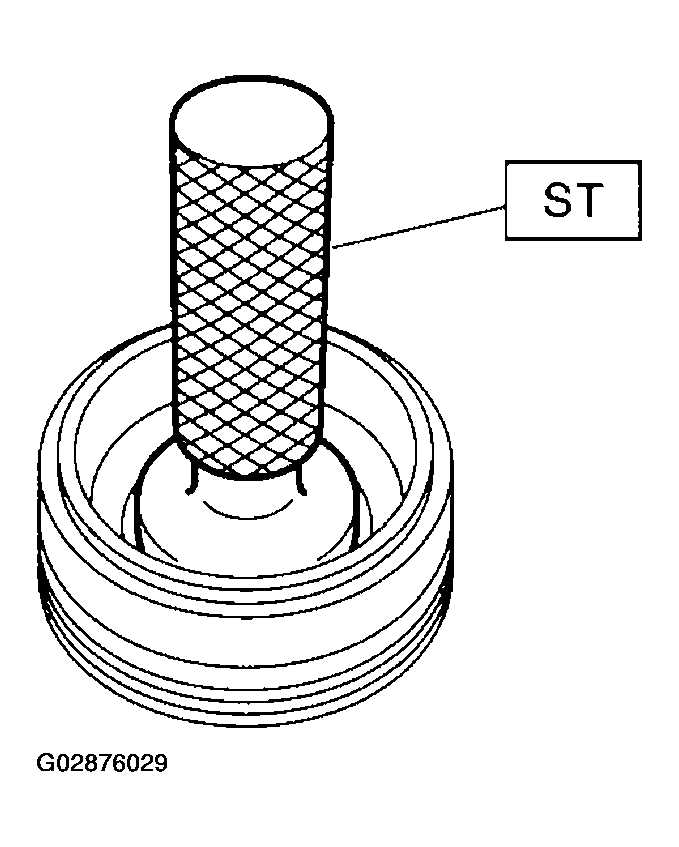

    Fig 1: Installing New Oil Seal Using ST & Hammer
    G02876029Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.
    Fig 2: Installing New O-Ring
    G02876030Courtesy of SUBARU OF AMERICA, INC.
