With ABS

G Sensor

REMOVAL





1. Disconnect battery ground cable.
2. Remove console cover.
3. Disconnect connector from G sensor.





4. Remove G sensor from body.

CAUTION: Do not drop or bump G sensor.

INSTALLATION





1. Install in the reverse order of removal.

NOTE: Do not install G sensor in the wrong direction. There is an arrow mark on the sensor showing which side faces the vehicle front.

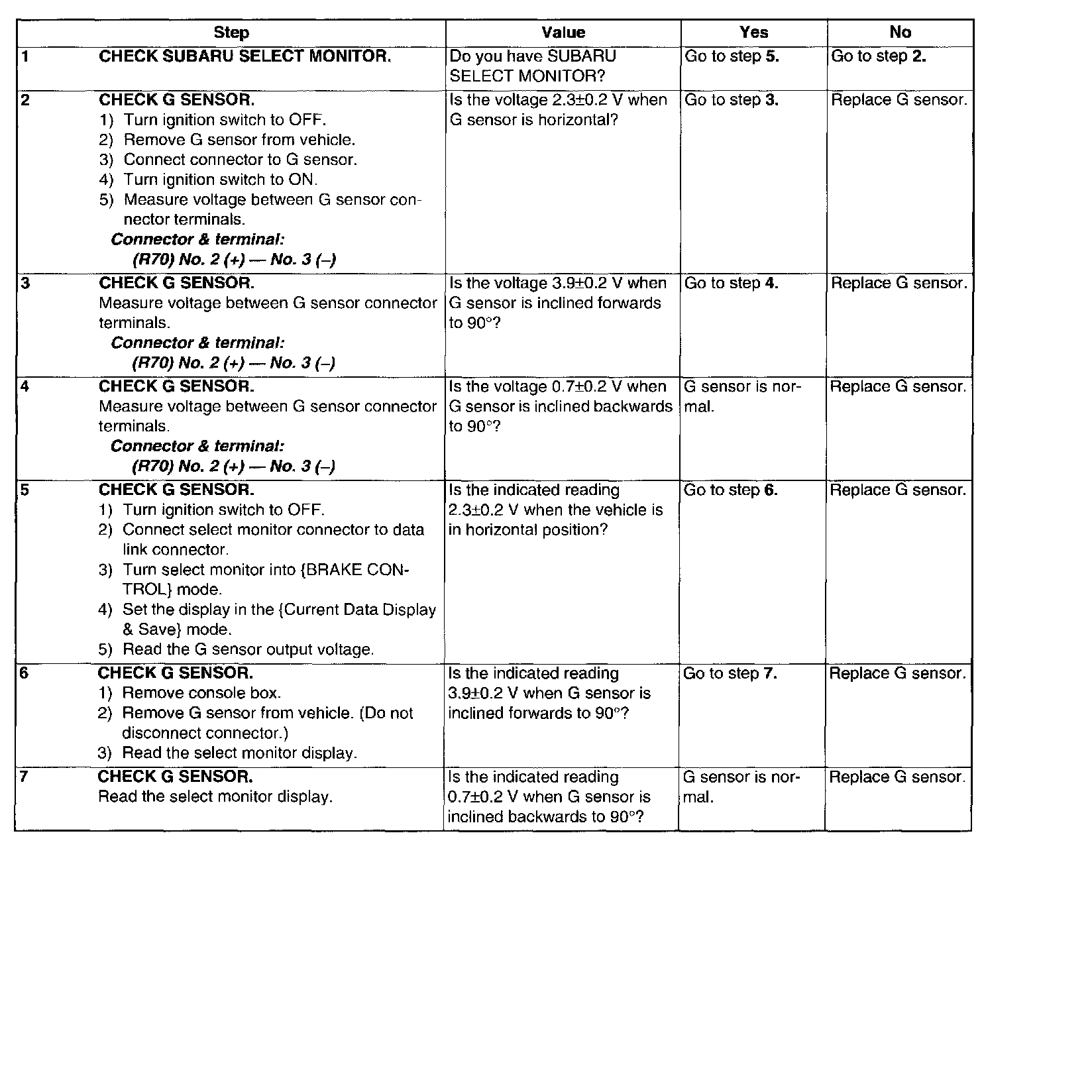

INSPECTION
