Transmission Control Systems

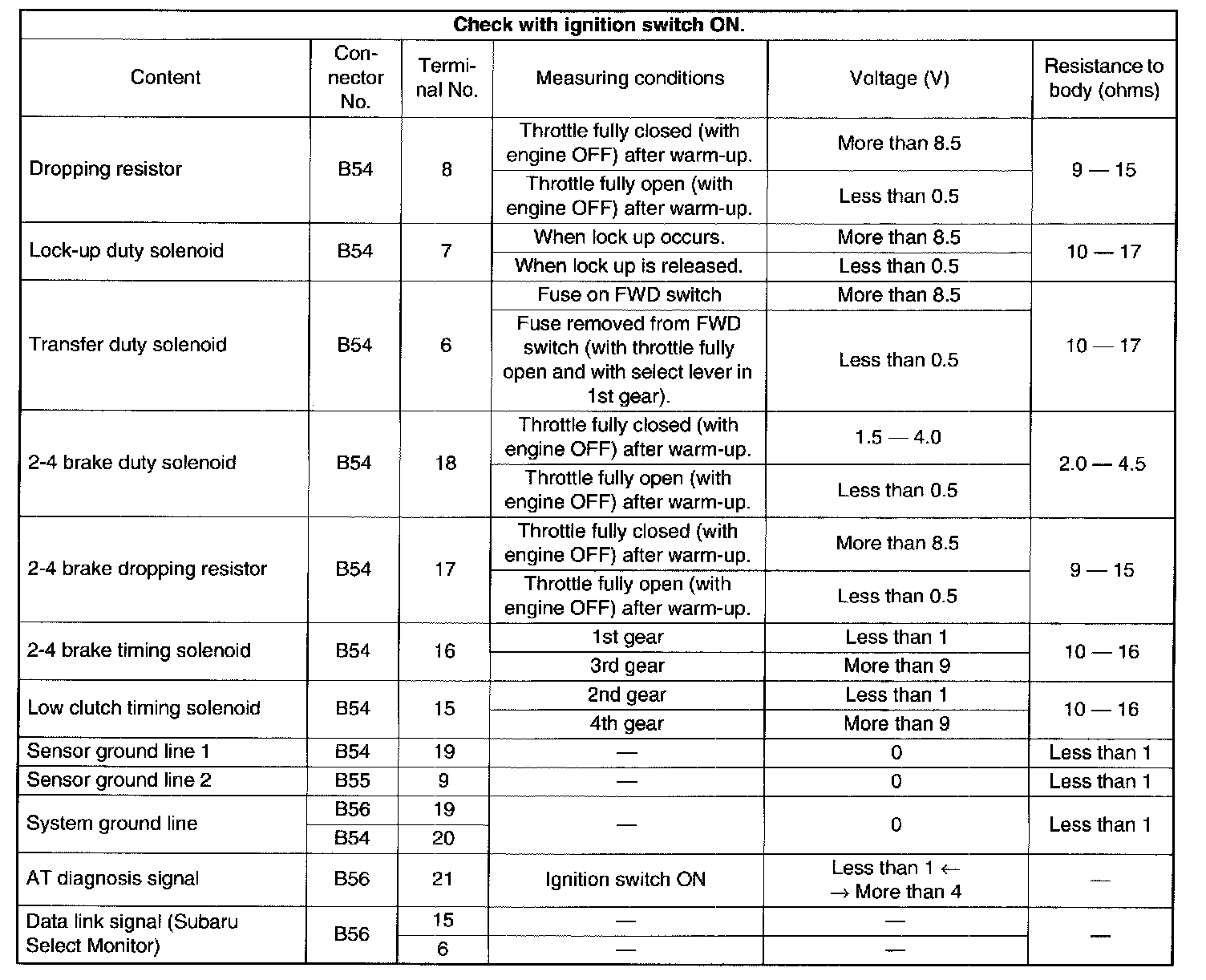

Transmission Control Module (TCM) I/O Signal Part 1:

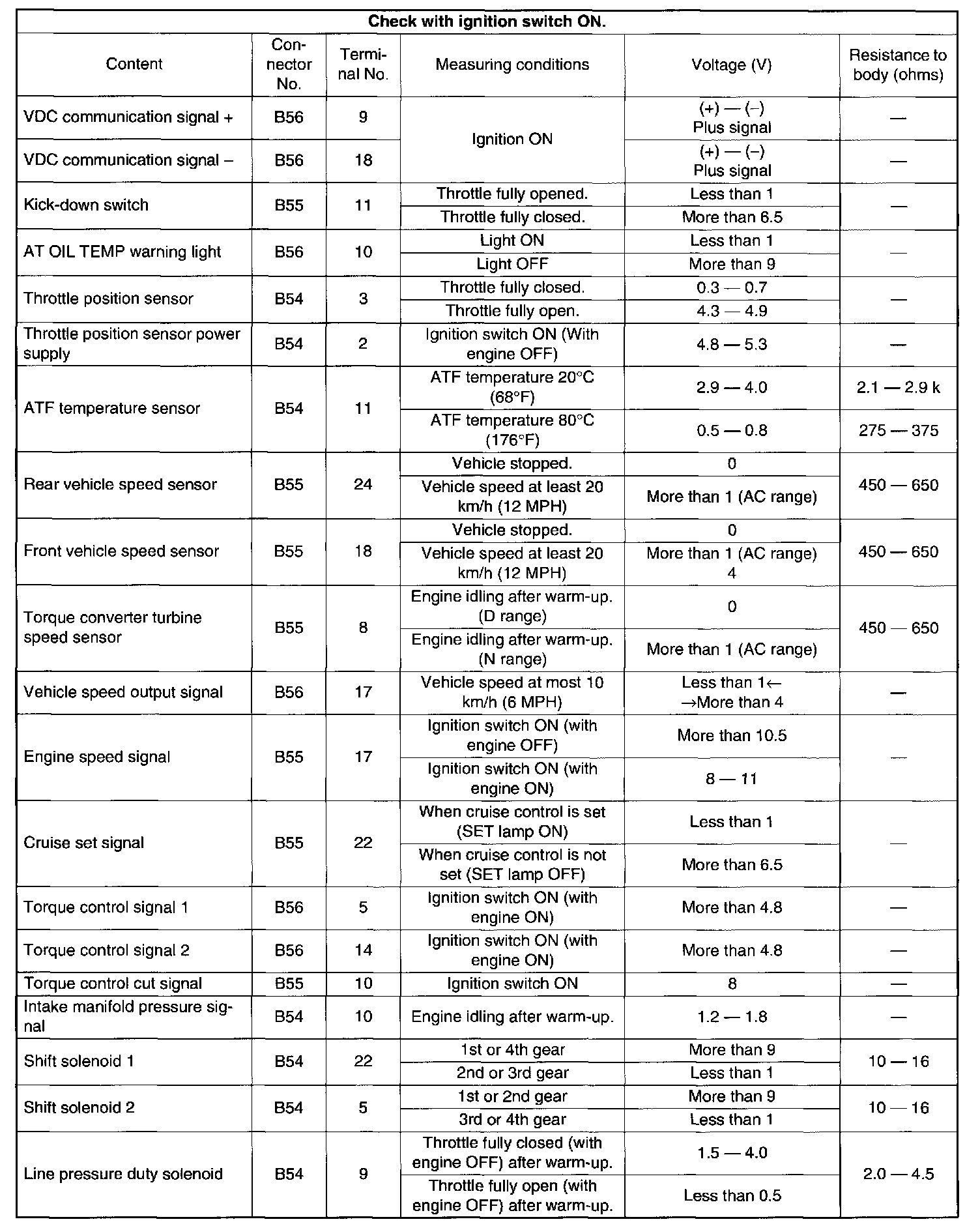

Transmission Control Module (TCM) I/O Signal Part 2:

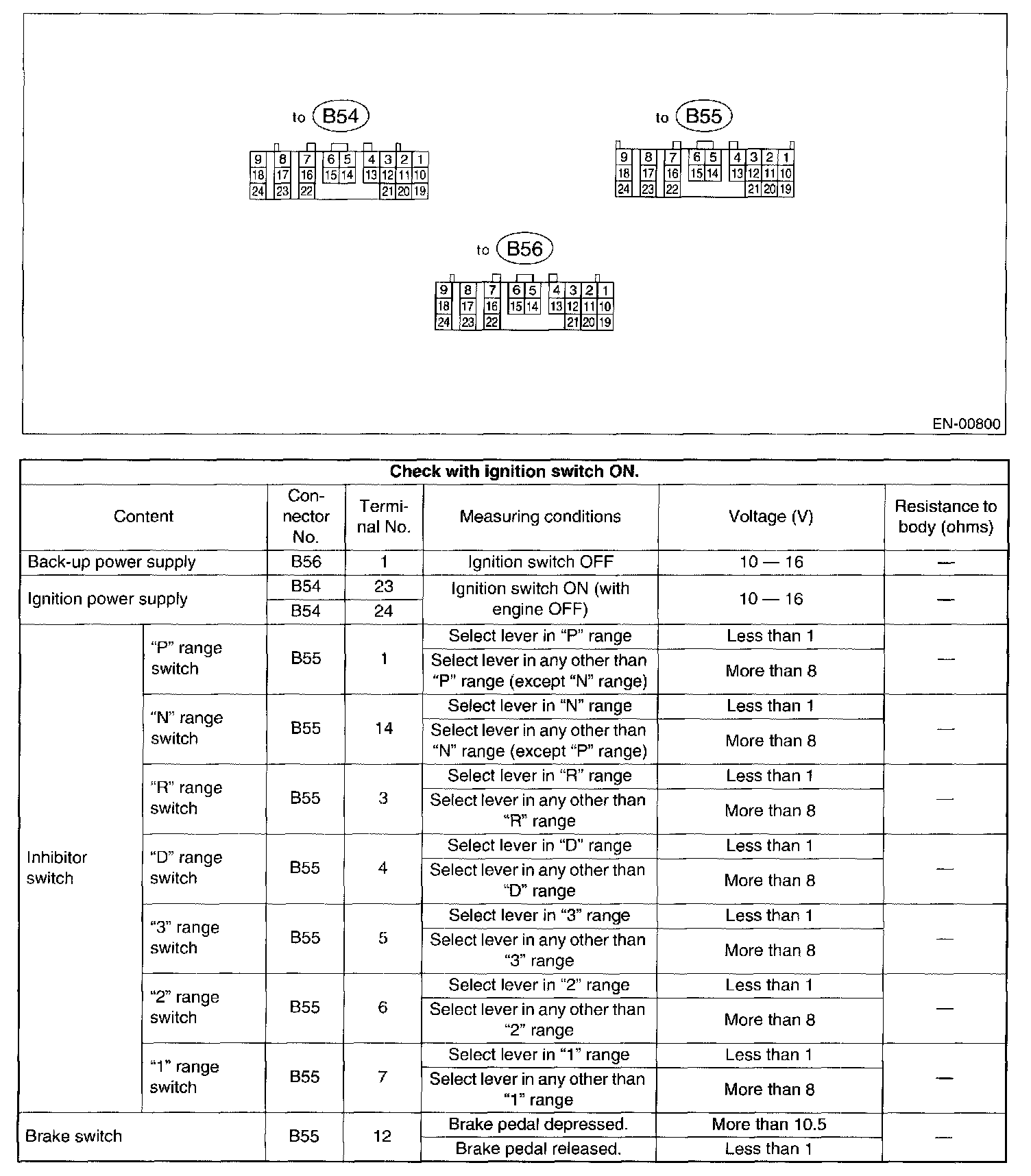

Transmission Control Module (TCM) I/O Signal Part 3:
