Schematic

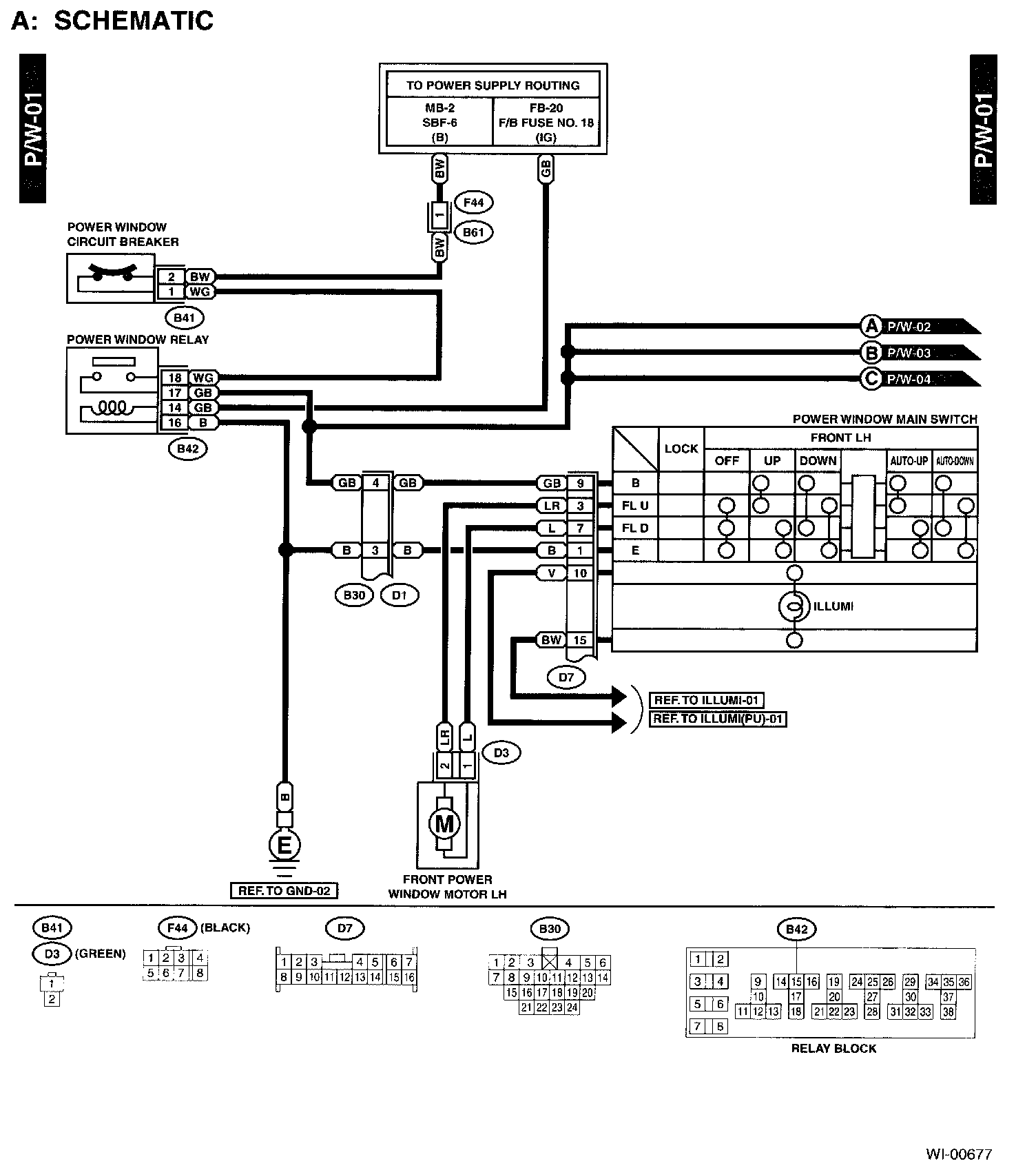

P/W-01:

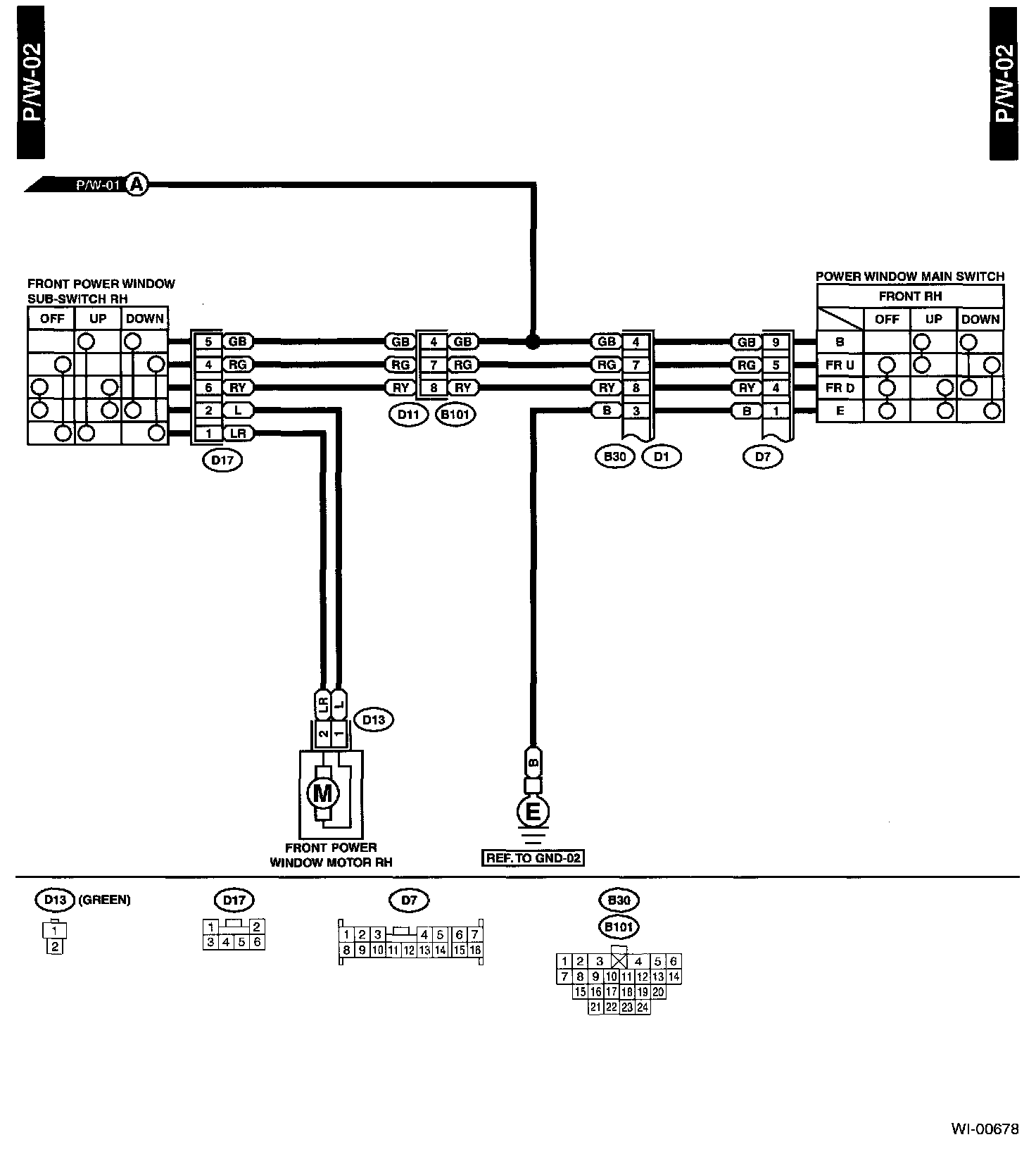

P/W-02:

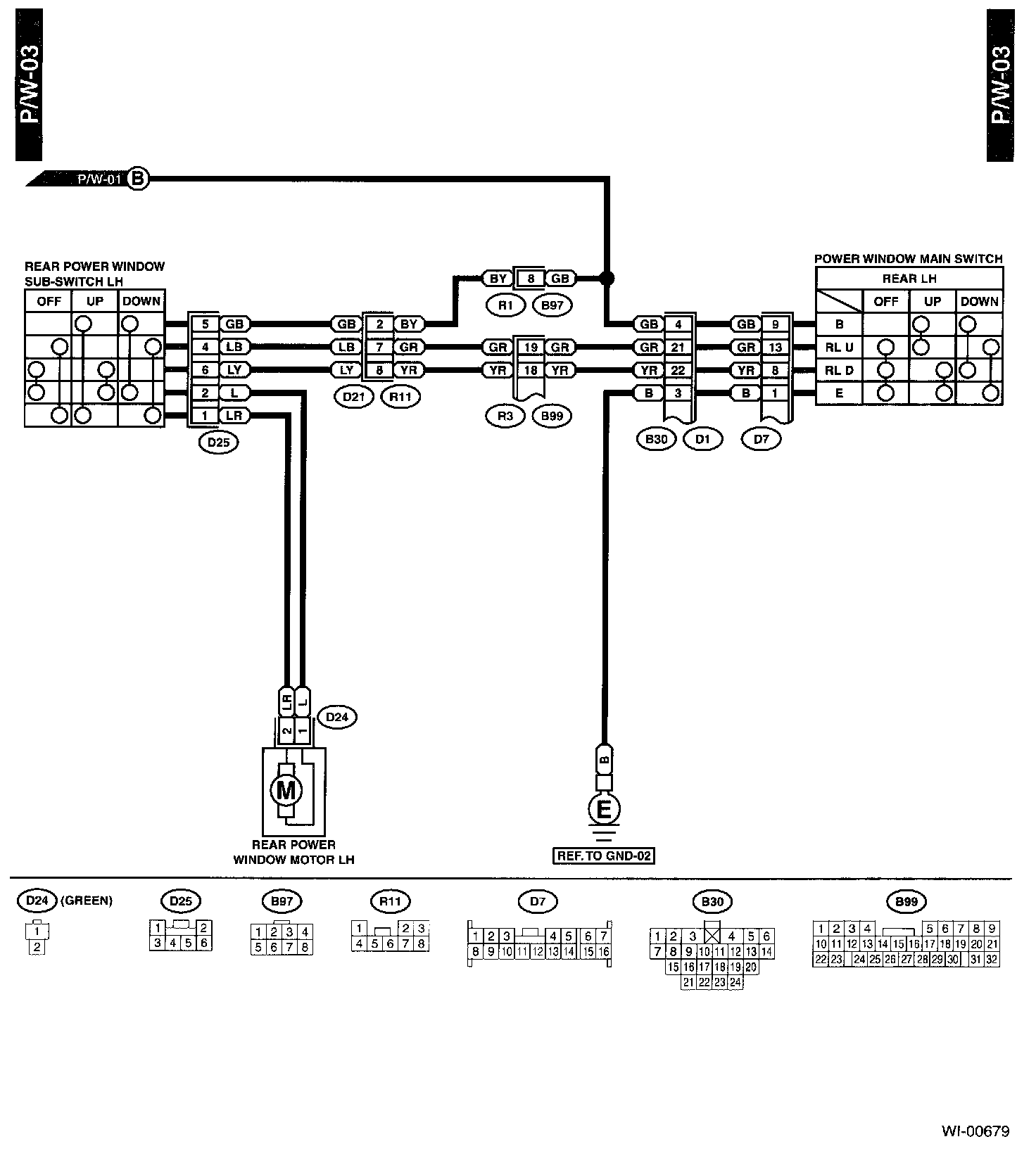

P/W-03:

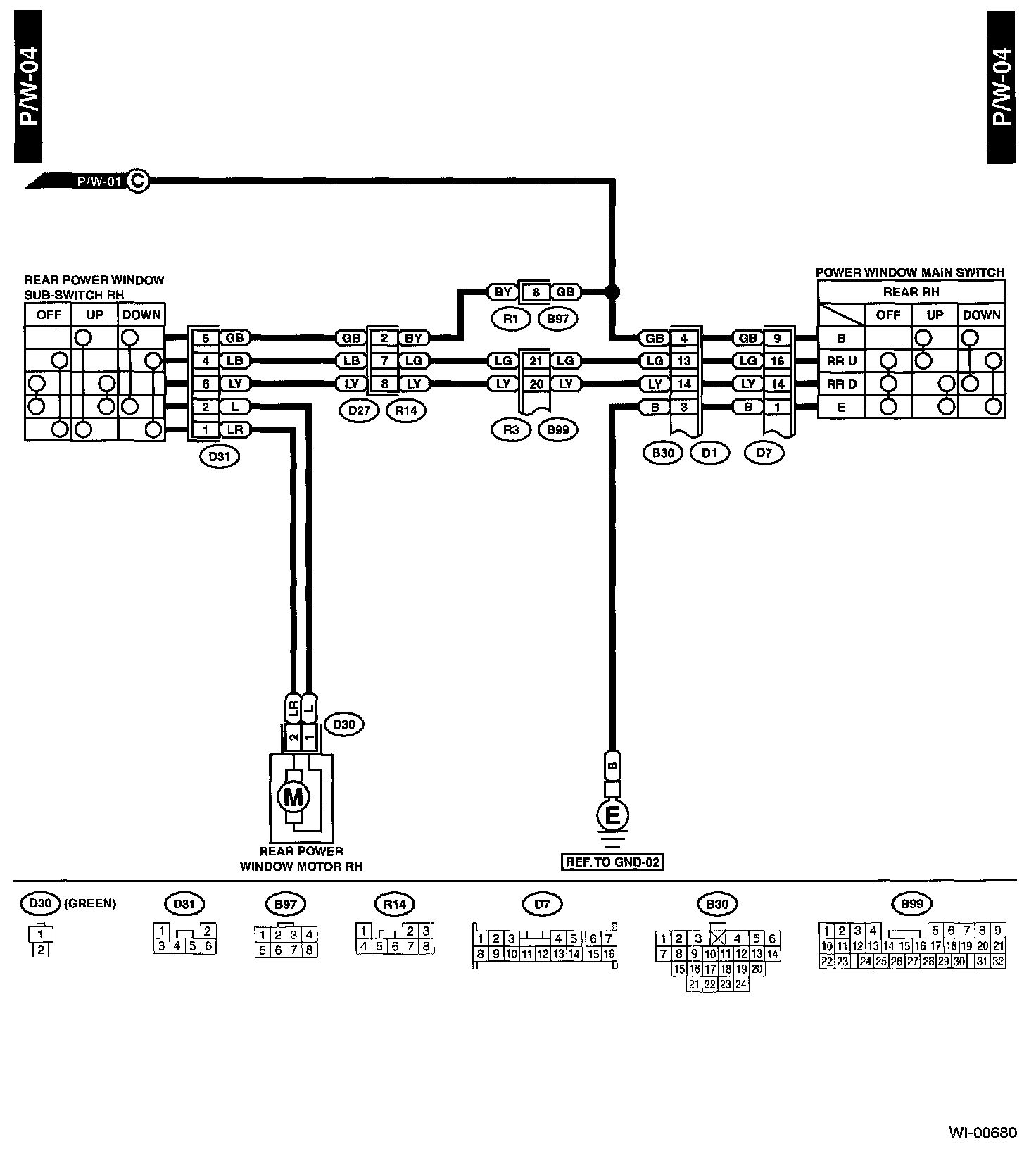

P/W-04:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
