Hydraulic Control Unit (H/U)

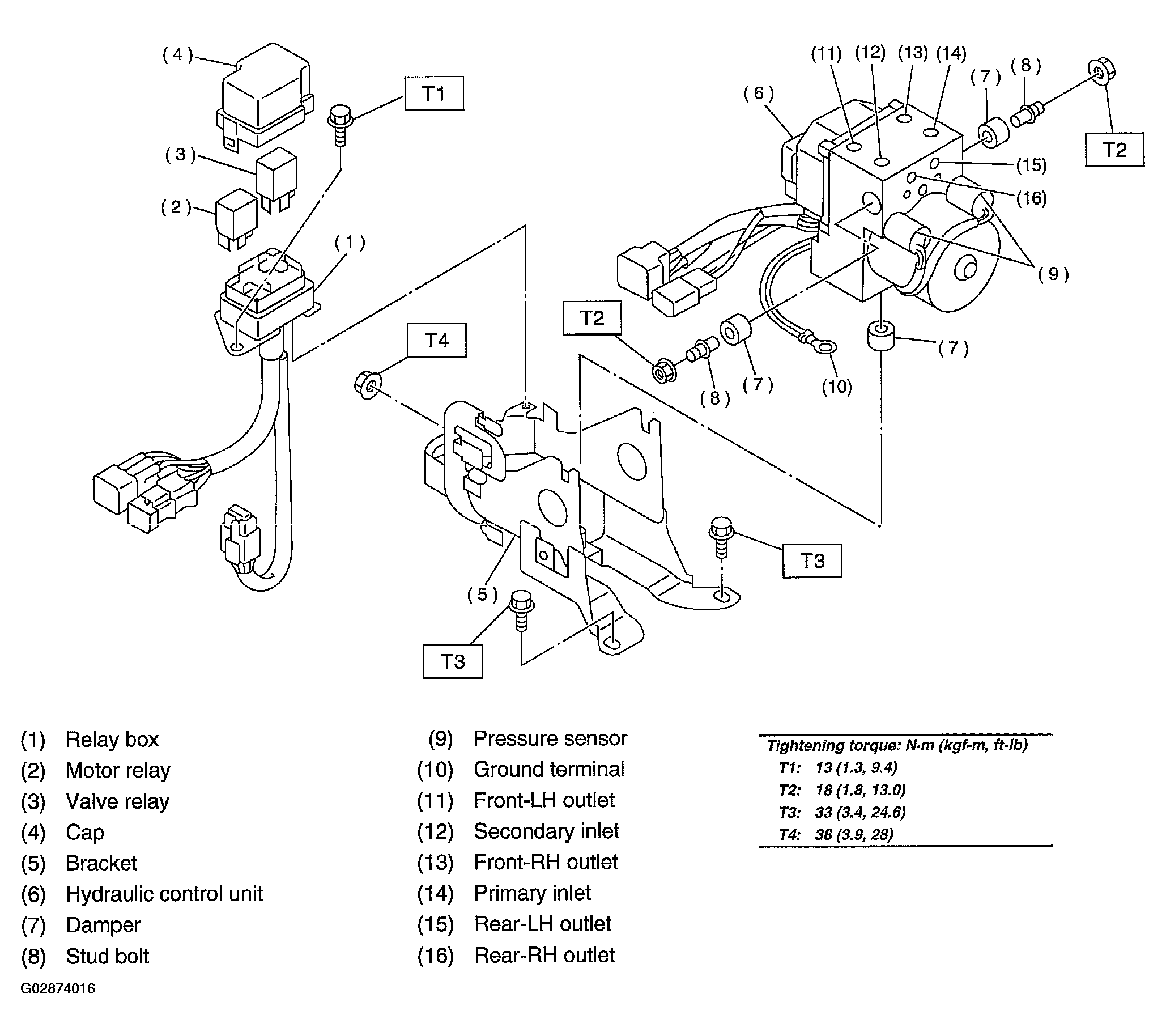

Fig 1: Identifying Hydraulic Control Unit Components
Courtesy of SUBARU OF AMERICA, INC.
