Without SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.

When ABS warning light illuminates, read and record diagnostic trouble code (DTC) indicated by ABS warning light.

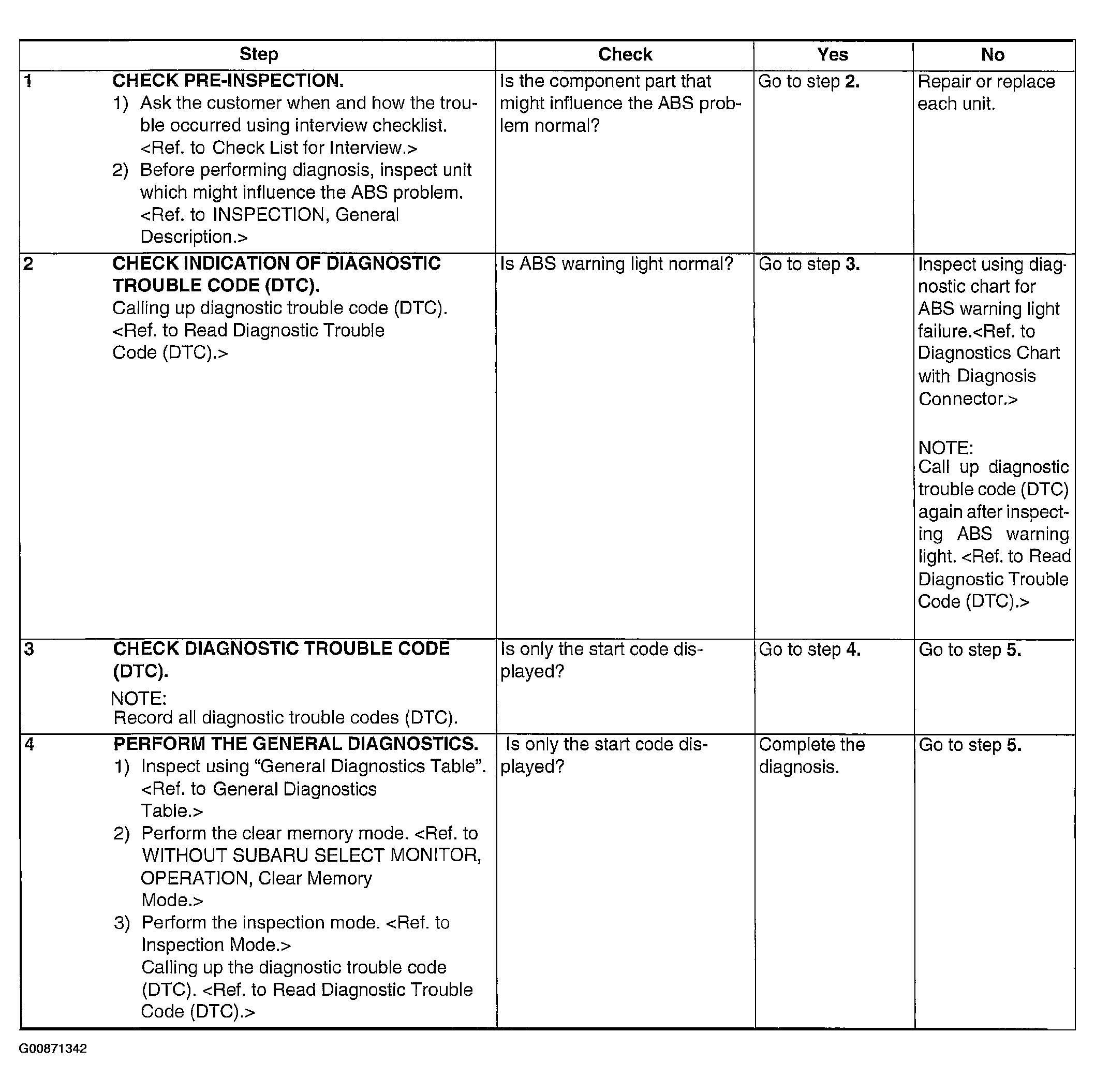

Fig 1: Procedure (Without Subaru Select Monitor) Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

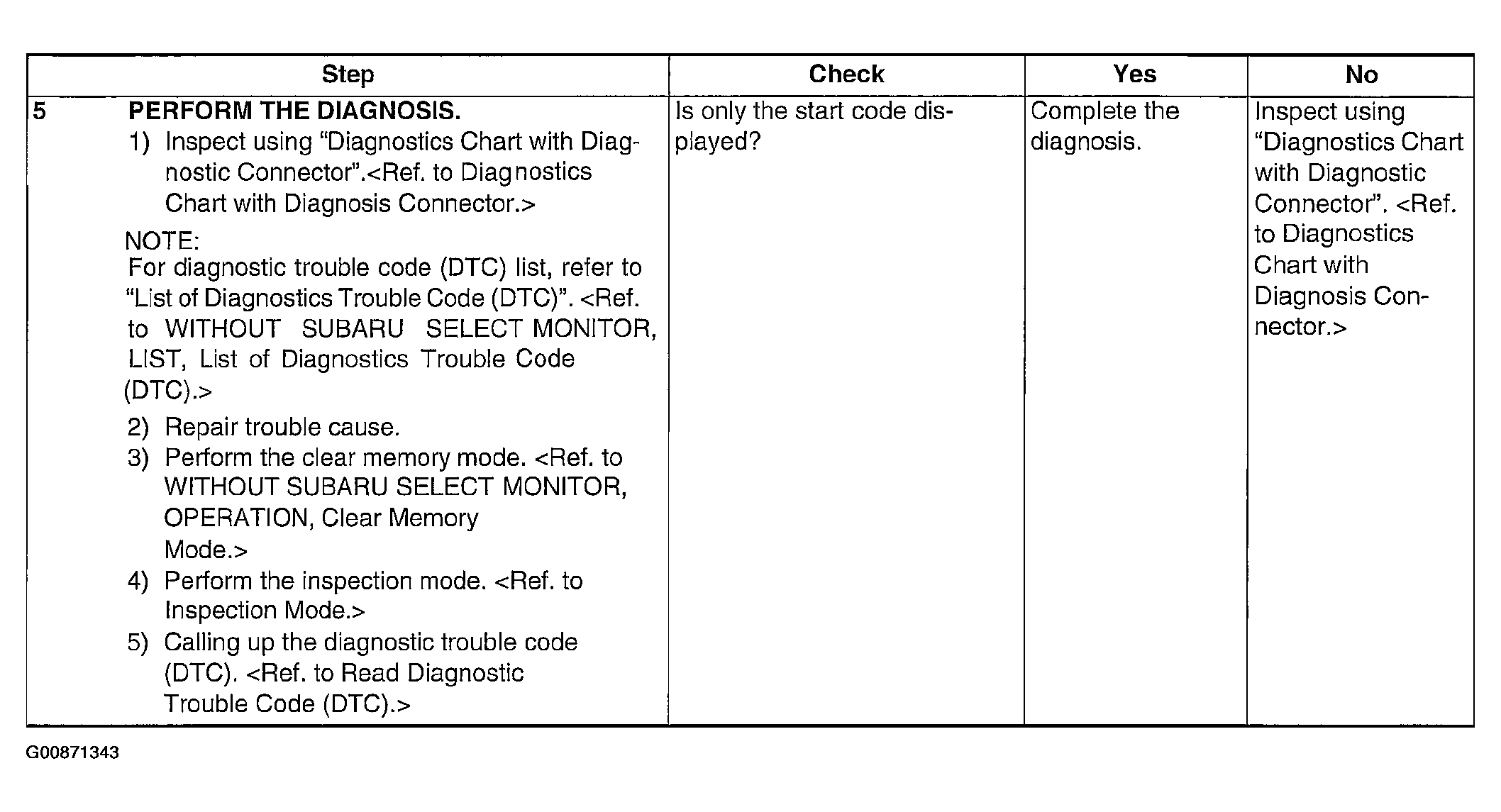

Fig 2: Procedure (Without Subaru Select Monitor) Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
