Home
>>
Subaru
>>
2004
>>
Baja Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4SO)
>>
Drive Cycle
>>
Operation
>>
Drive According To The Following Drive Pattern
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Drive According To The Following Drive Pattern

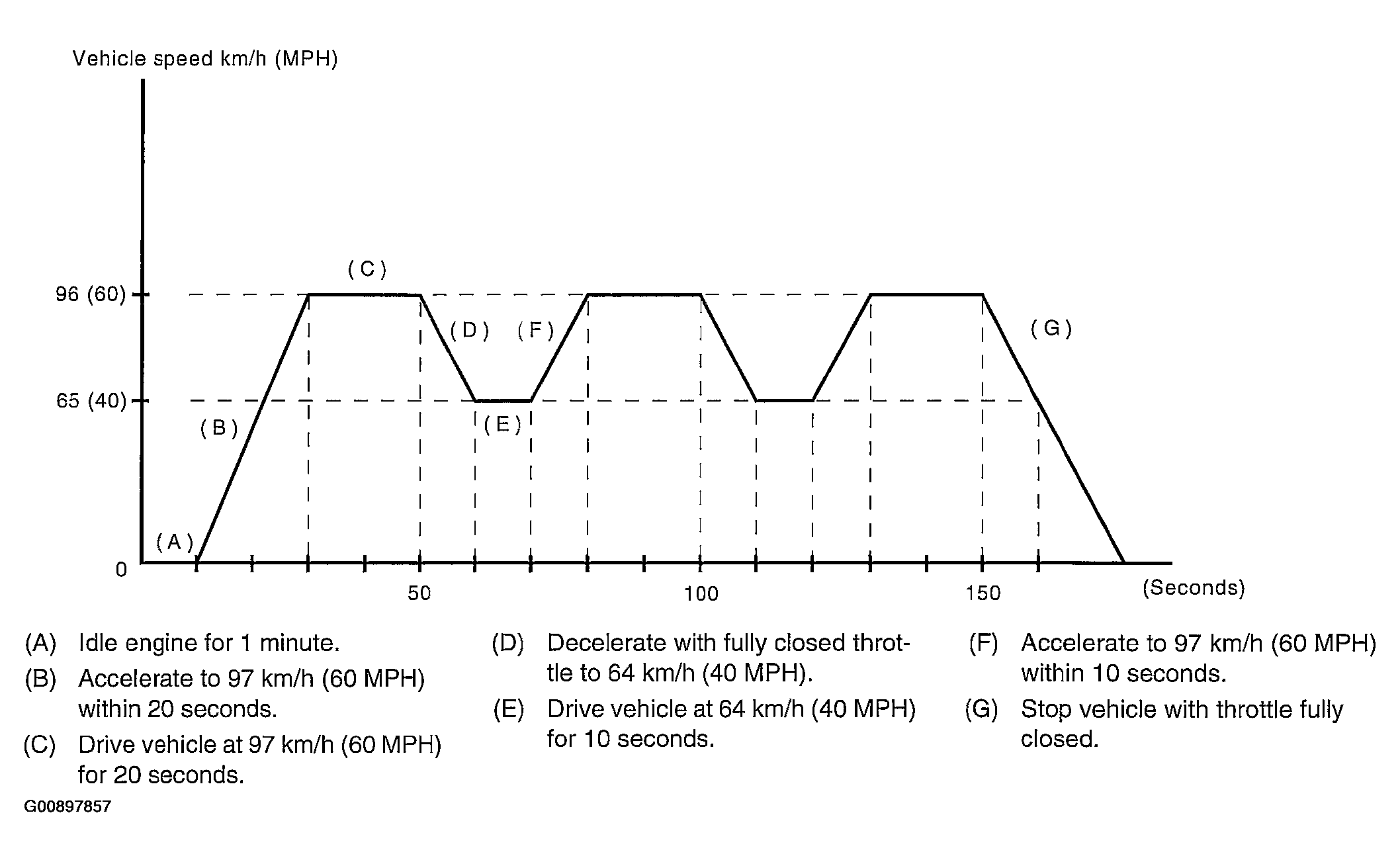

Fig 1: Identifying Drive Pattern
Courtesy of SUBARU OF AMERICA, INC.

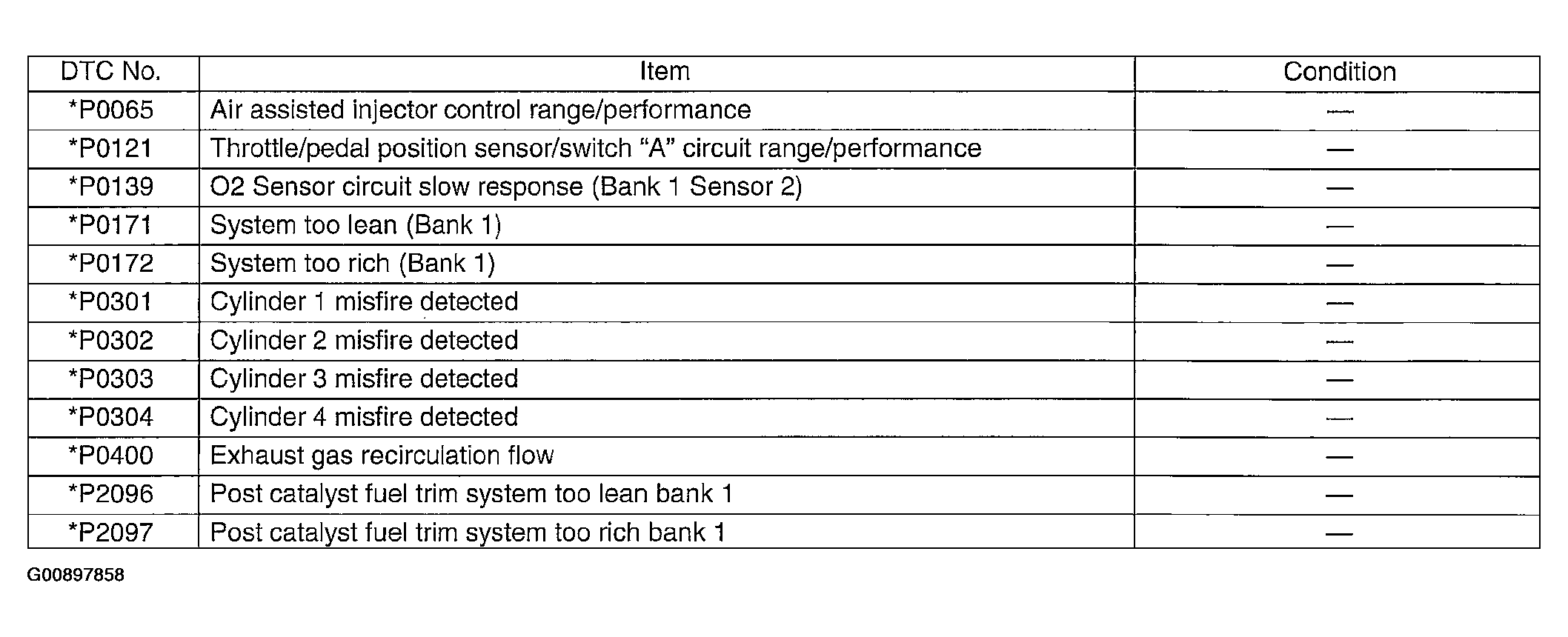

Fig 2: Diagnostic Trouble Code Item & Condition Table
Courtesy of SUBARU OF AMERICA, INC.
