Air Flow And Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

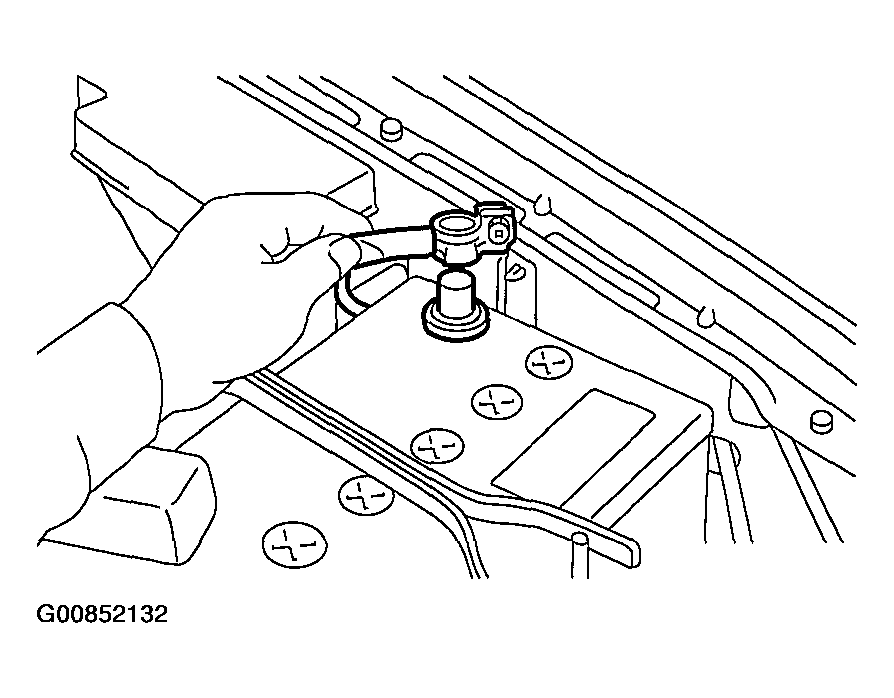

    Fig 1: Disconnecting Ground Cable From Battery
    G00852132Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the air flow and intake air temperature sensor.

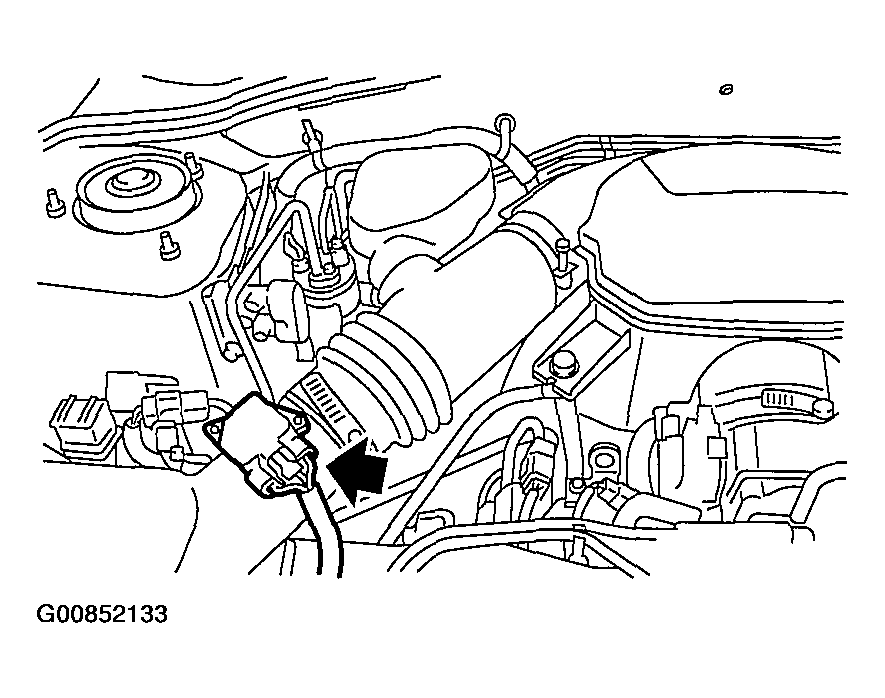

    Fig 2: Disconnecting Connector From Air Flow & Intake Air Temperature Sensor
    G00852133Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air flow and intake air temperature sensor from air cleaner case.
