Fuel Filler Pipe: Disassembly

Disconnect evaporation hose from evaporation pipe assembly.

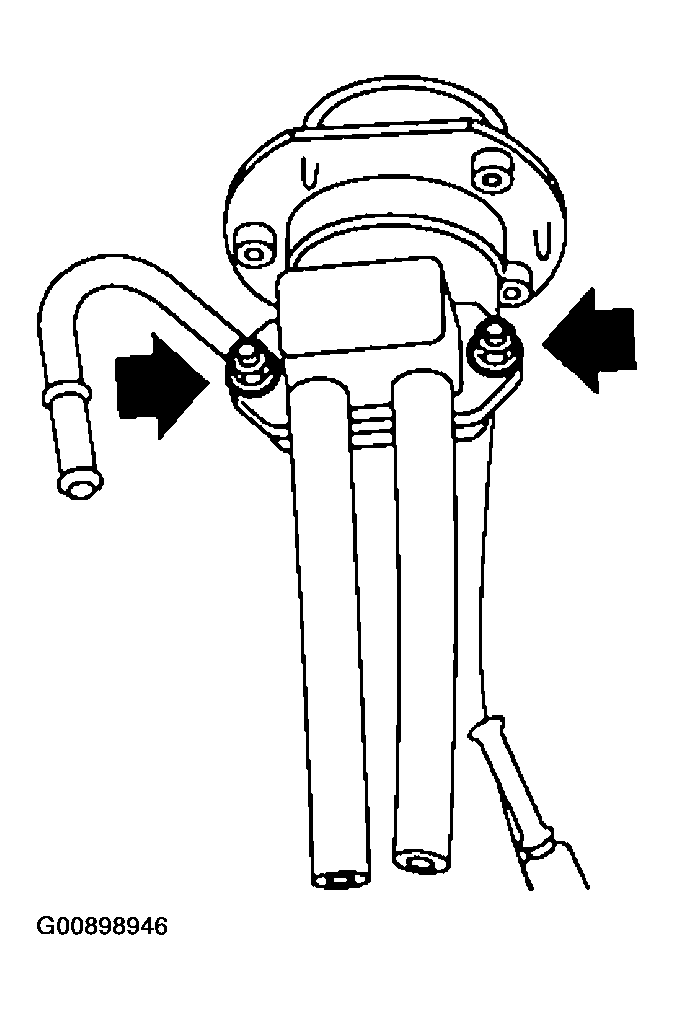

Fig 1: Removing Evaporation Hose From Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove shut valve from fuel filler pipe.

Fig 2: Removing Shut Valve From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove nut which holds evaporation pipe assembly on fuel filler pipe.

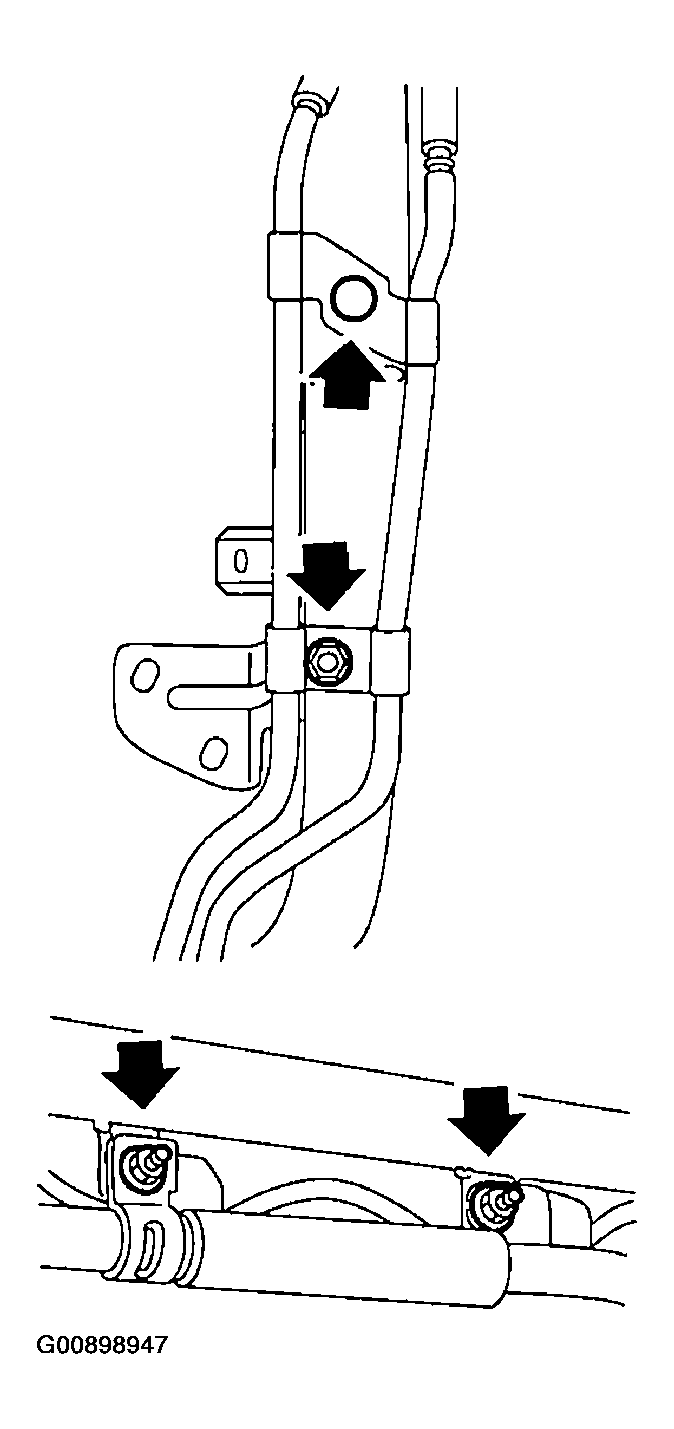

Fig 3: Removing Nut Holding Evaporation Pipe Assembly On Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
