Read Freeze Frame Data For Engine (OBD Mode)

On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after displayed the information of engine type.
On the << Engine Diagnosis >> display screen, select the {OBD System} and press the [YES] key.
On the << OBD Menu >> display screen, select the {Freeze Frame Data} and press the [YES] key.
- A list of the support data is shown in the following table.

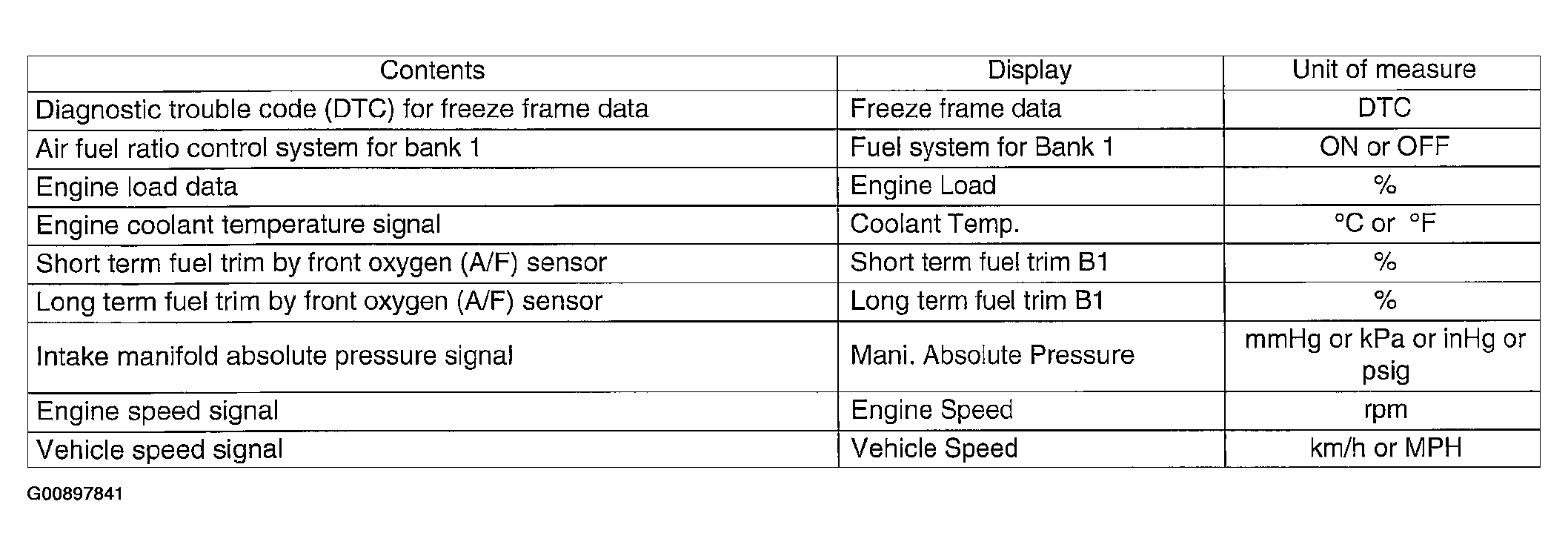

Fig 1: Freeze Frame Data (OBD MODE)
Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.
