BAJA (Pickup): Electrical

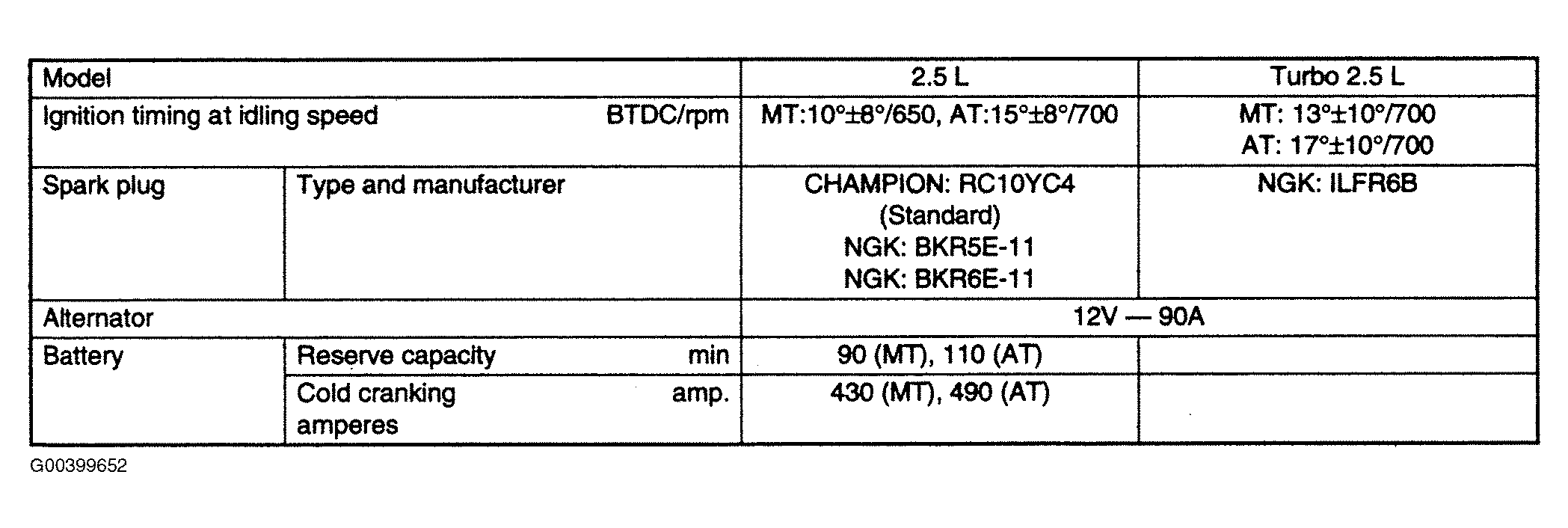

Fig 1: Electrical Specifications Chart

G00399652

Courtesy of SUBARU OF AMERICA, INC.
