Transmission Mounting: General

The transmission mounting consists of a pitching stopper, cushion rubber, and a cross member.

In addition to support the transmission, these components absorb noise and vibration caused by the transmission.

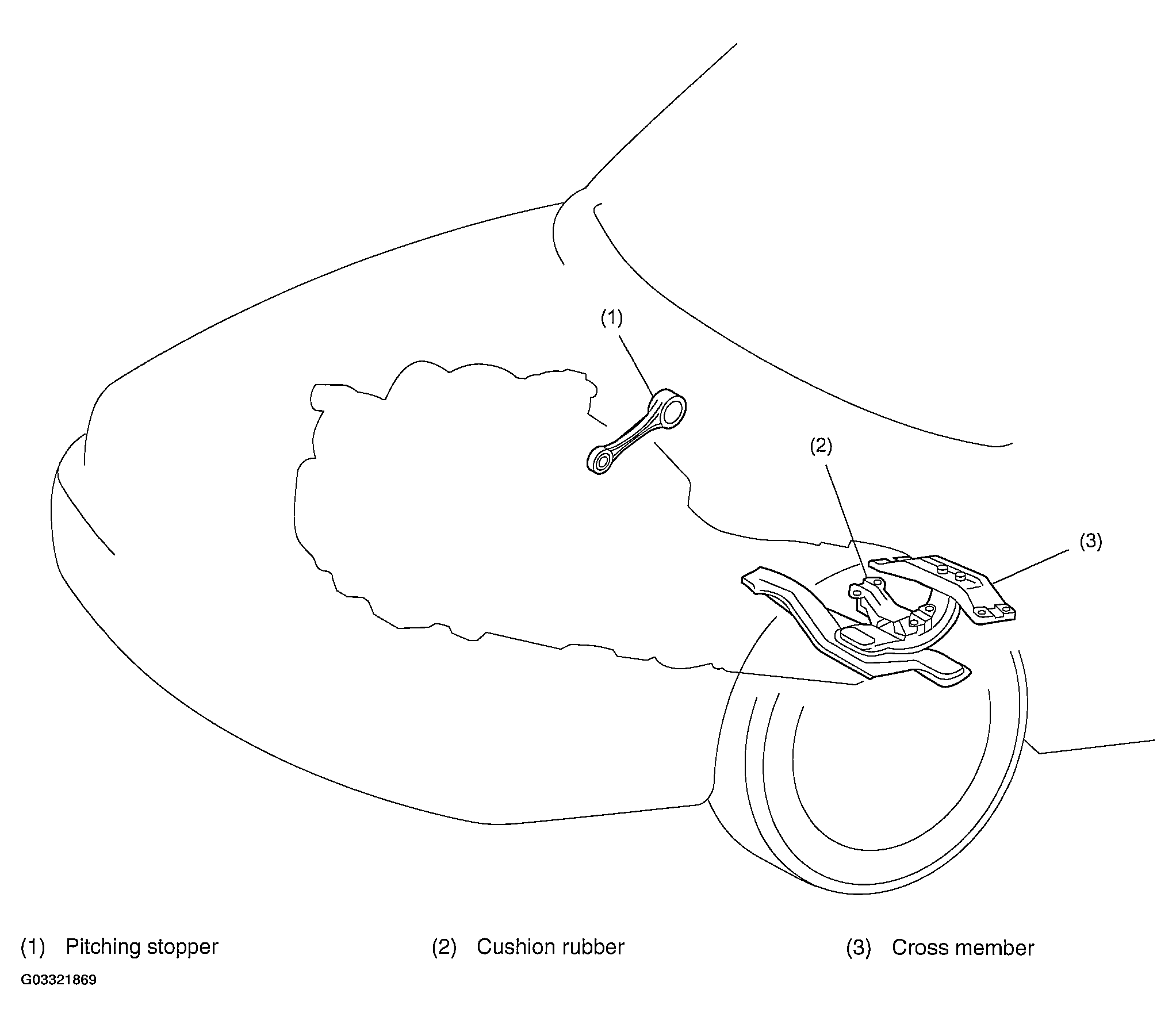

Fig 1: Identifying Transmission Mounting
G03321869Courtesy of SUBARU OF AMERICA, INC.
