Engine Coolant Temperature Sensor: Removal

Disconnect the ground cable from battery.

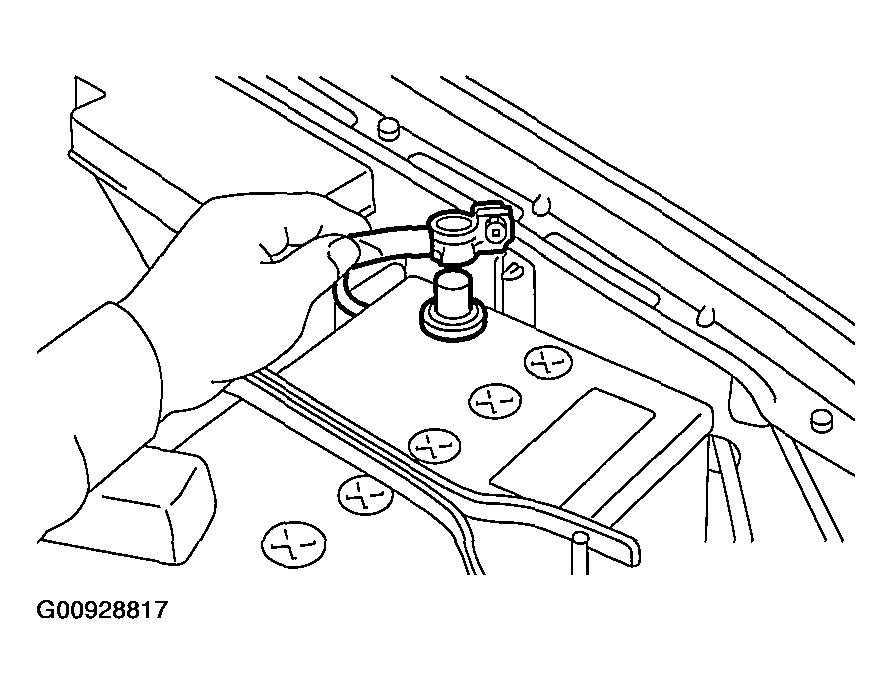

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator. Refer to REMOVAL , Generator.
Drain the engine coolant. Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Disconnect the connector from the engine coolant temperature sensor.

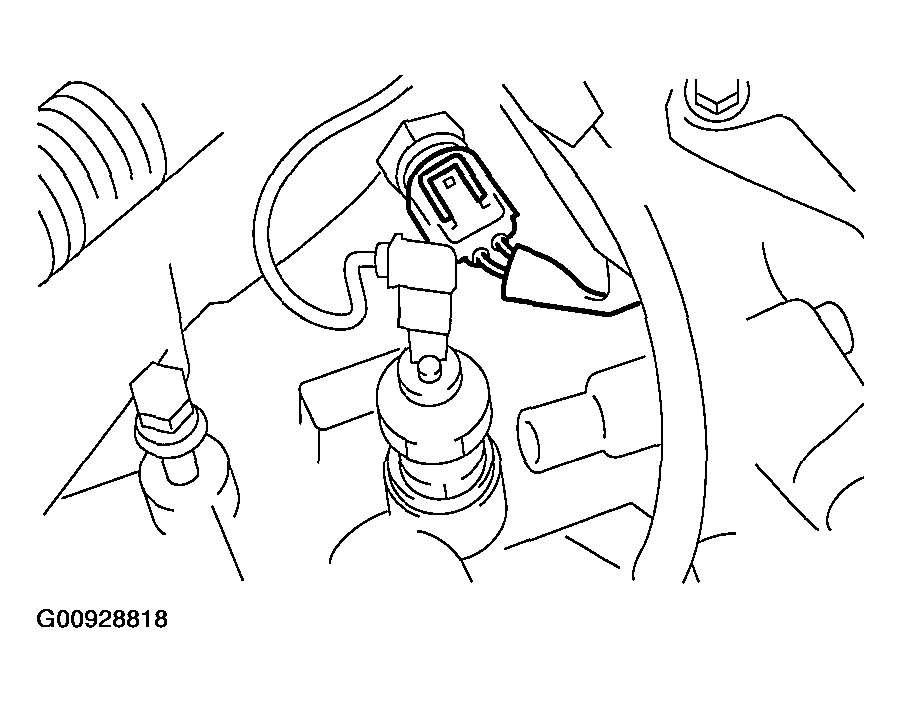

Fig 2: Removing Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine coolant temperature sensor.
