Exhaust Temperature Sensor: Installation

Before installing exhaust temperature sensor, apply anti-seize compound only to the threaded portion of exhaust temperature sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to protector of exhaust temperature sensor.

Anti-seize compound:

SS-30 by JET LUBE
Install the exhaust temperature sensor.
NOTE: Align the harness (A) of exhaust temperature sensor to the marking (B) of joint pipe, and tighten the screws.

Tightening torque:

21 N.m (2.1 kgf-m, 15.2 ft-lb)

Fig 1: Installing Exhaust Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the joint pipe. Refer to INSTALLATION , Joint Pipe.
Connect the battery ground cable to battery.

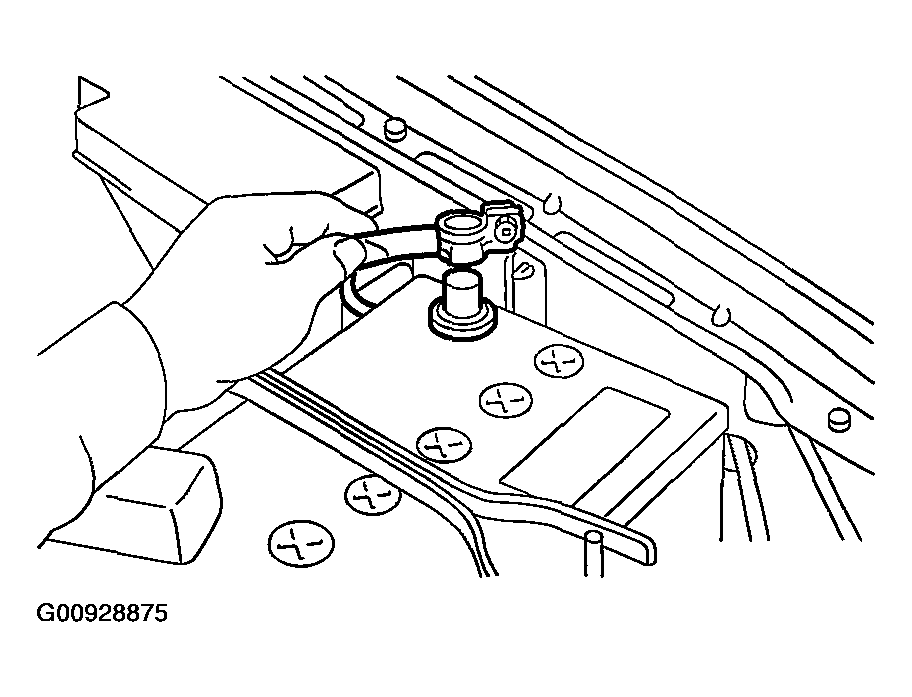

Fig 2: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
