Fuel Pump Control Unit: Removal

  1. Disconnect the ground cable from battery.

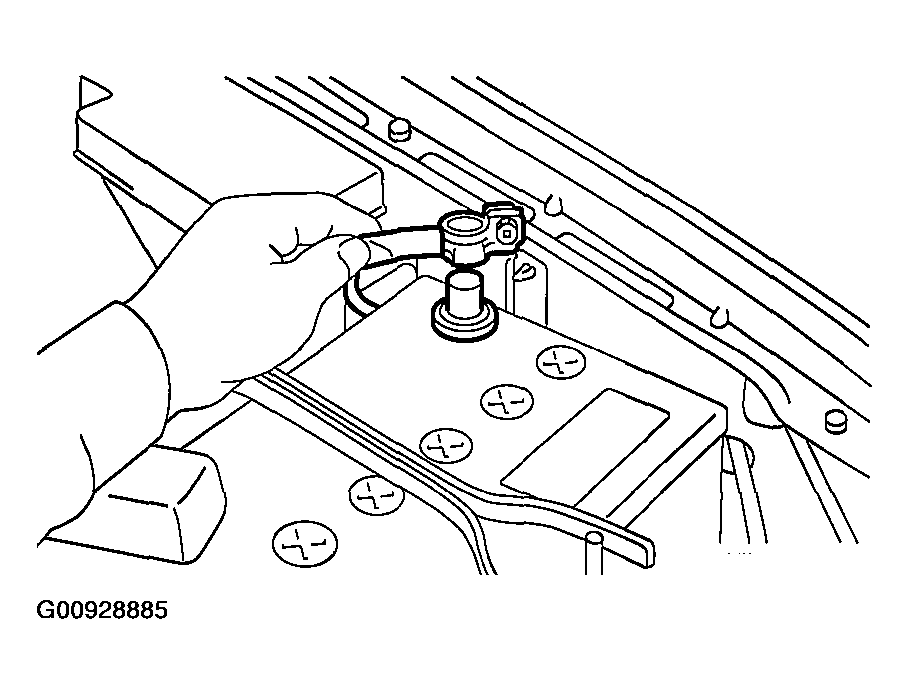

    Fig 1: Disconnecting Ground Cable From Battery
    G00928885Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rear pillar trim. Refer to REMOVAL , Rear Pillar Trim.
  3. Remove the fuel pump control unit bracket from the vehicle body.

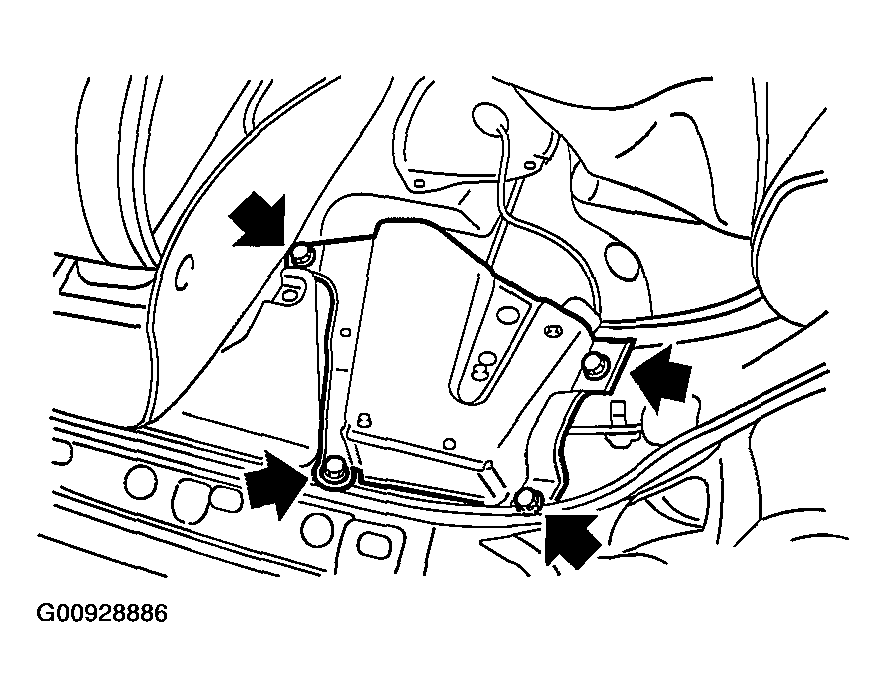

    Fig 2: Removing Fuel Pump Control Unit Bracket From Vehicle Body
    G00928886Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from the fuel pump control unit.
  5. Remove the fuel pump control unit.
