Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Schematic Diagrams
>>
Turbo Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Turbo Models

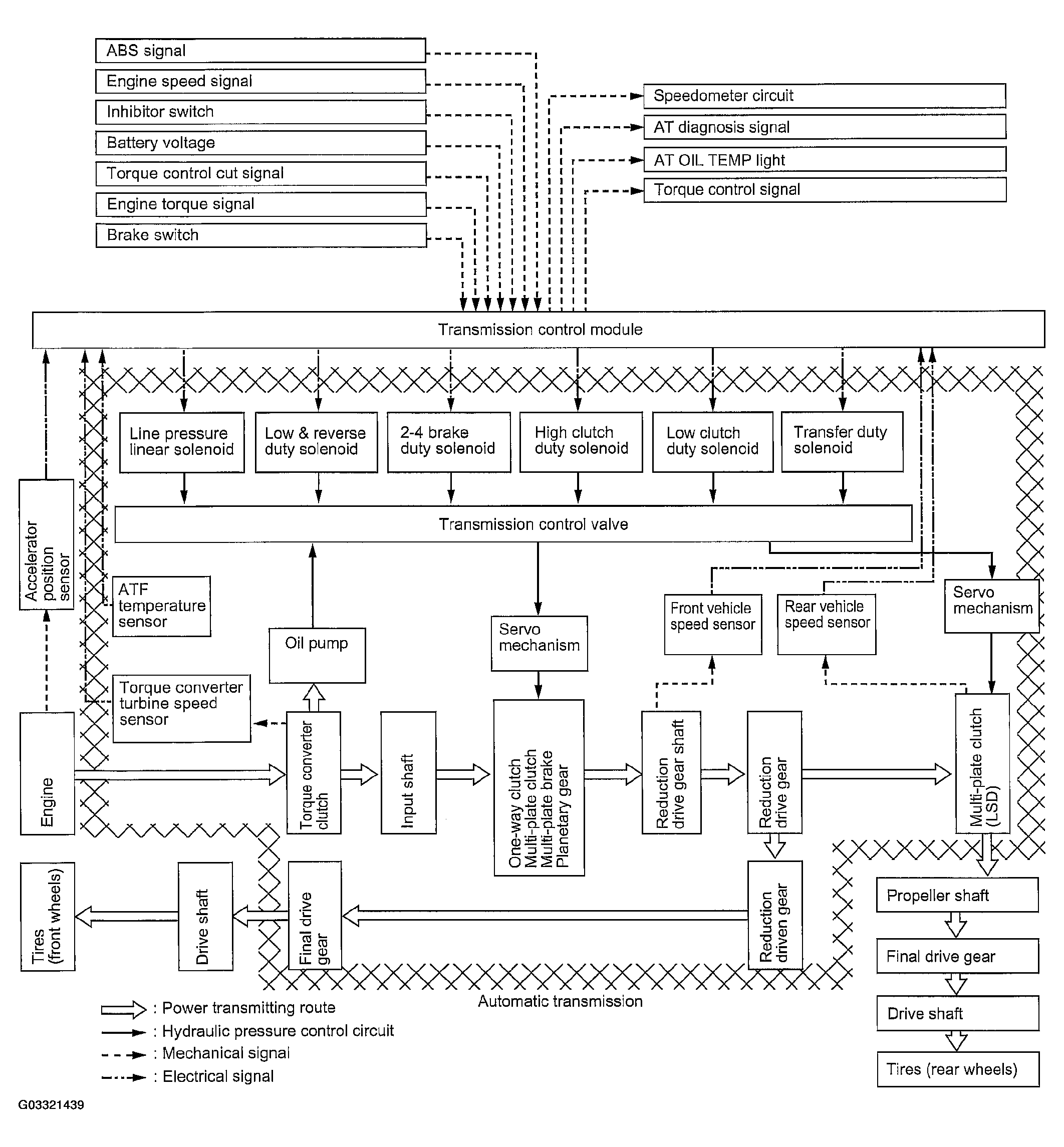

Fig 1: Turbo Models Schematic Diagrams
Courtesy of SUBARU OF AMERICA, INC.
