Diagnostic Procedure For Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

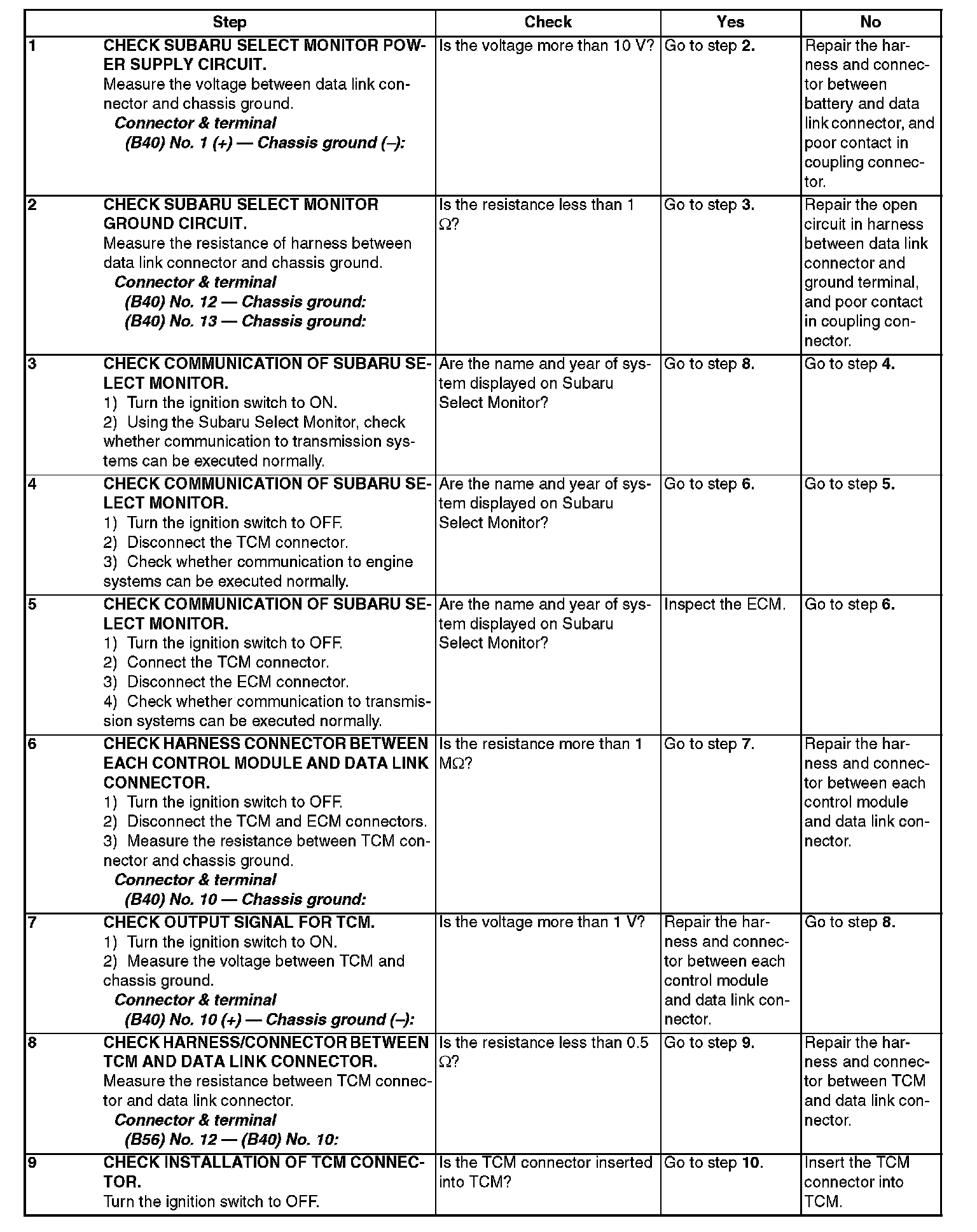

Steps 1-9:

Steps 10 & 11:

DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Subaru select monitor communication failure

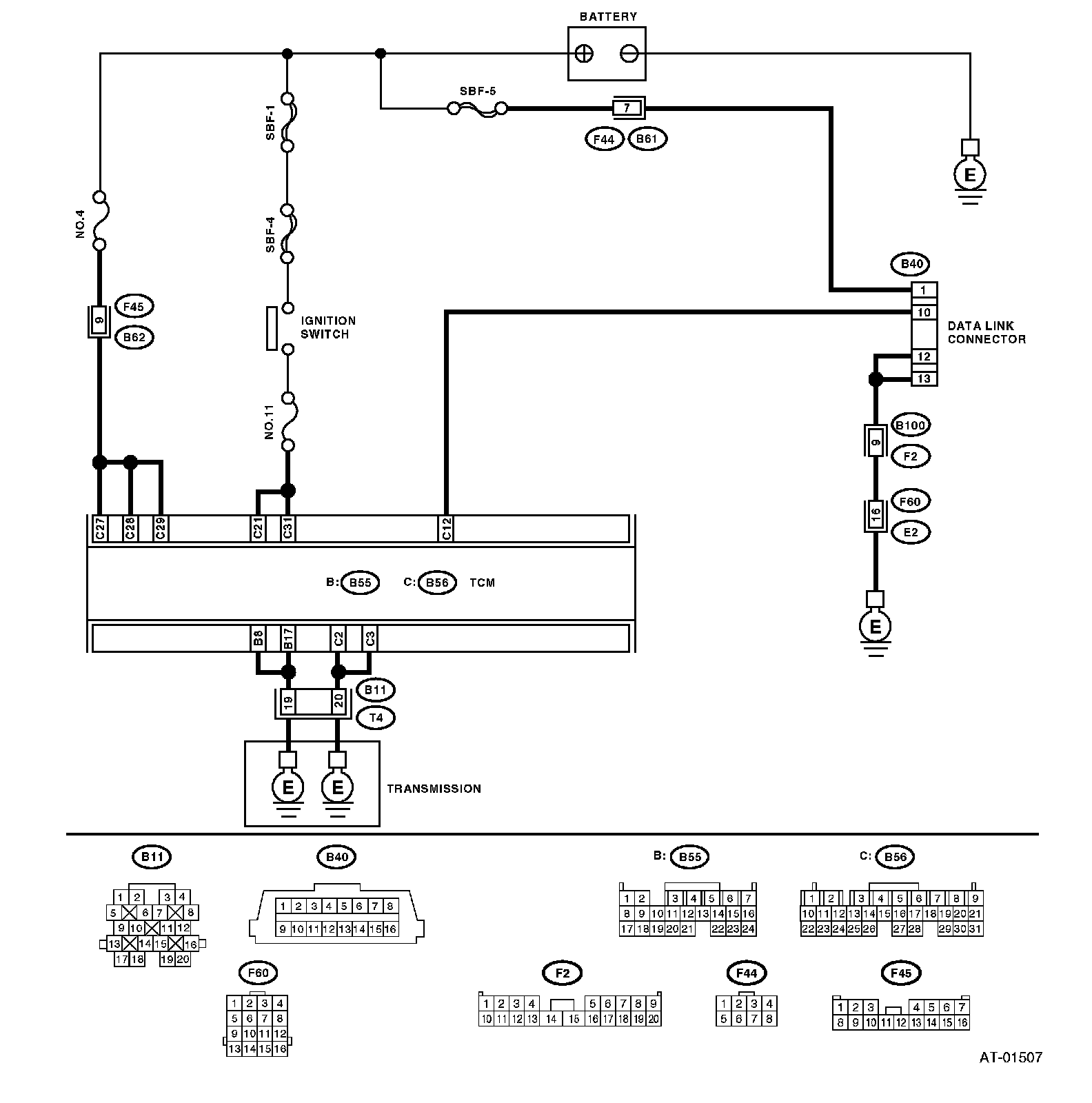

WIRING DIAGRAM
