Throttle Position Sensor: Removal

Disconnect the ground cable from battery.

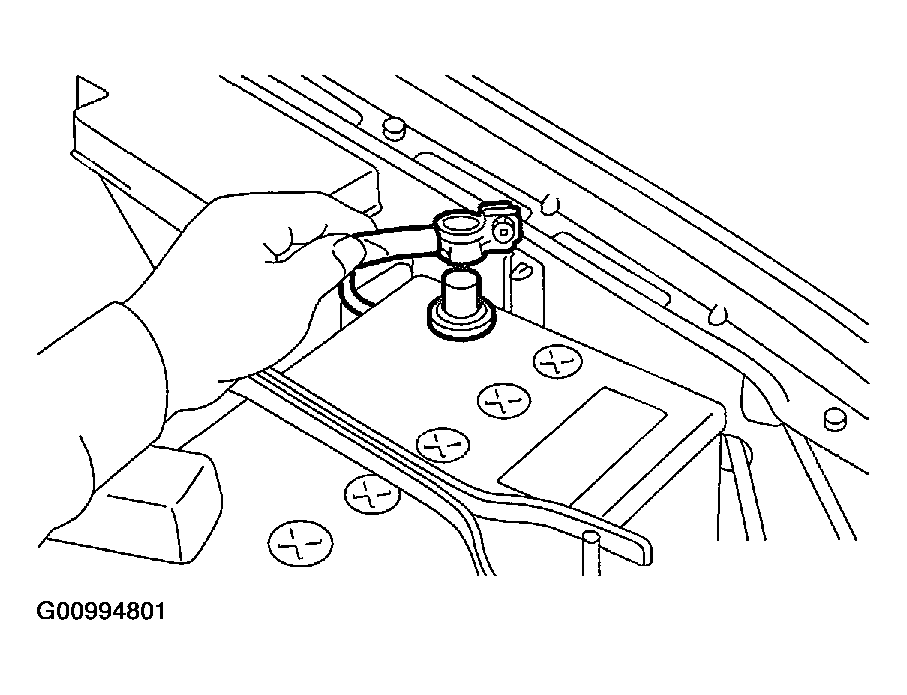

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the throttle position sensor.

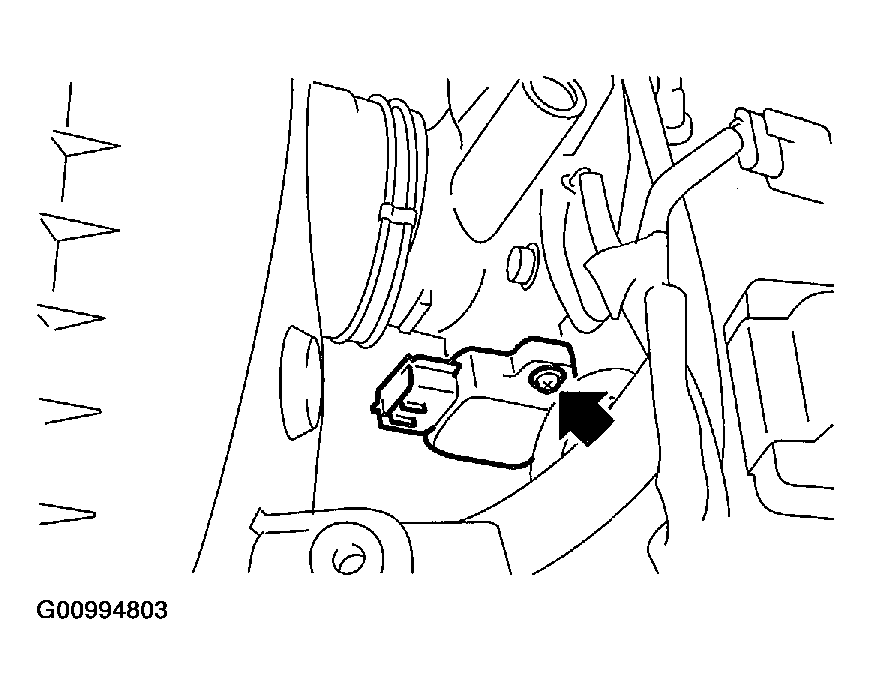

Fig 2: Disconnecting Connector From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle position sensor holding screws, and remove the throttle position sensor.

Fig 3: Identifying Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
