Diagnostic Procedures:

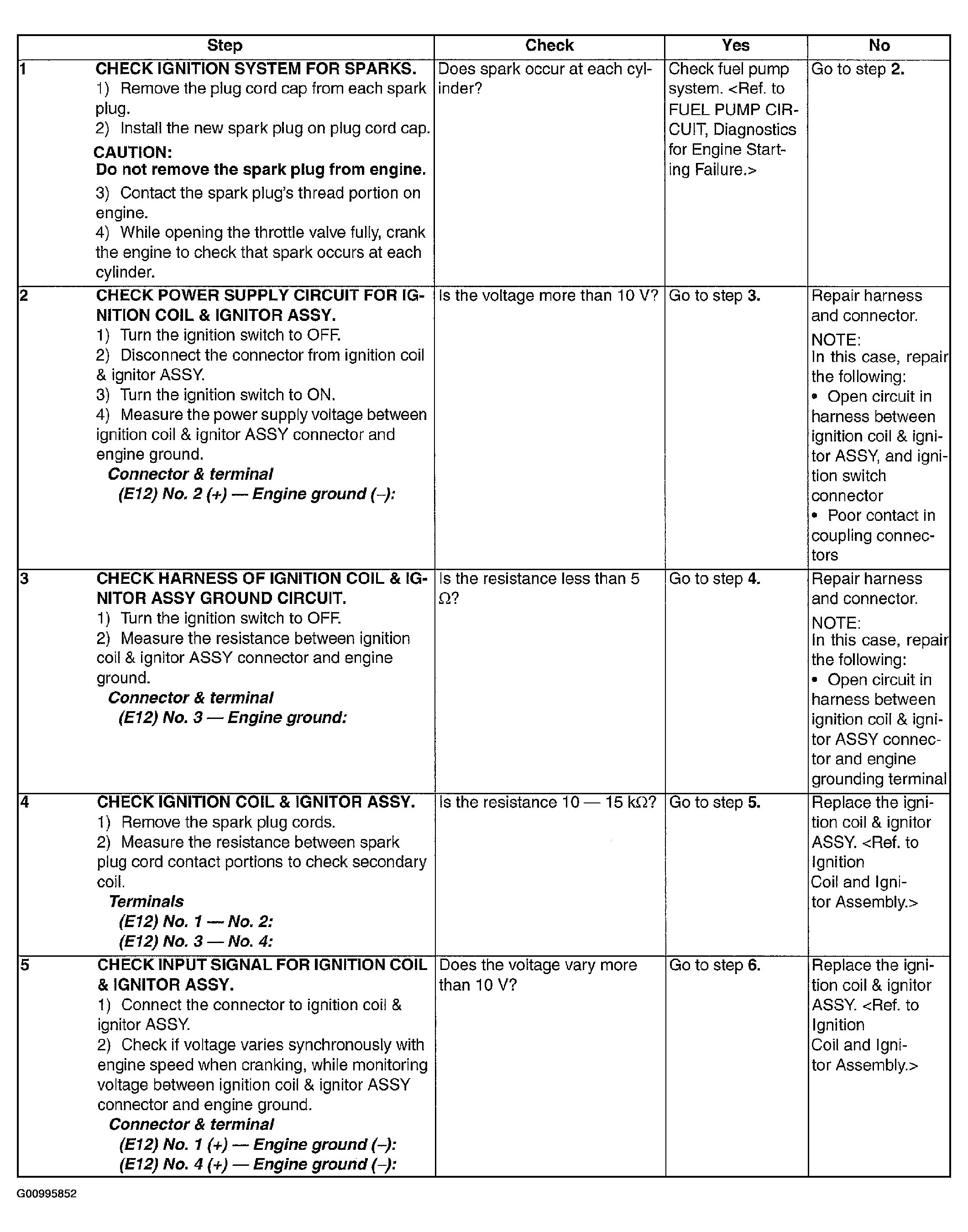

Fig 1: Ignition Control System Diagnostic Chart (1 Of 2)
G00995852Courtesy of SUBARU OF AMERICA, INC.

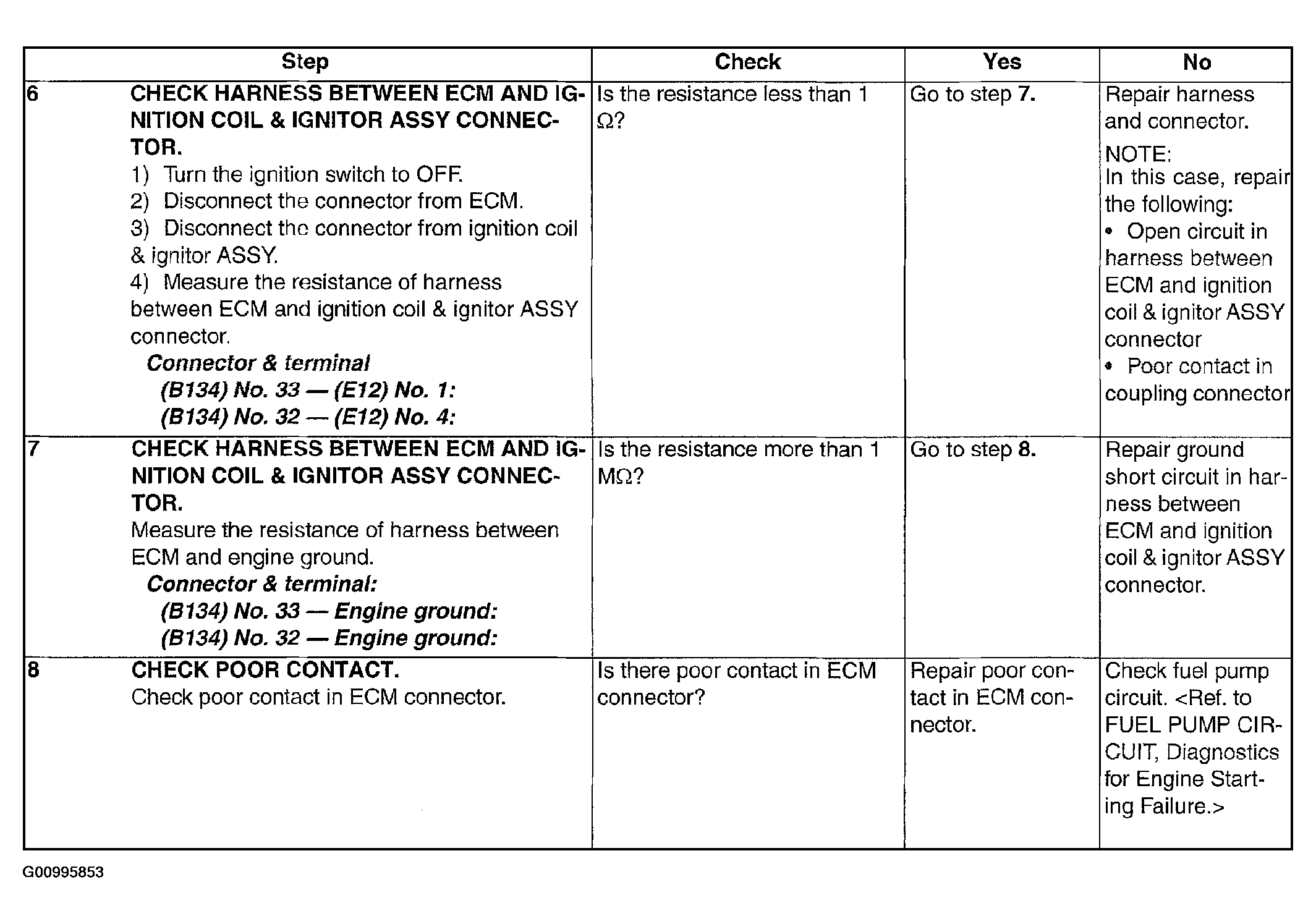

Fig 2: Ignition Control System Diagnostic Chart (2 Of 2)
G00995853Courtesy of SUBARU OF AMERICA, INC.
