N-R lock operating conditions

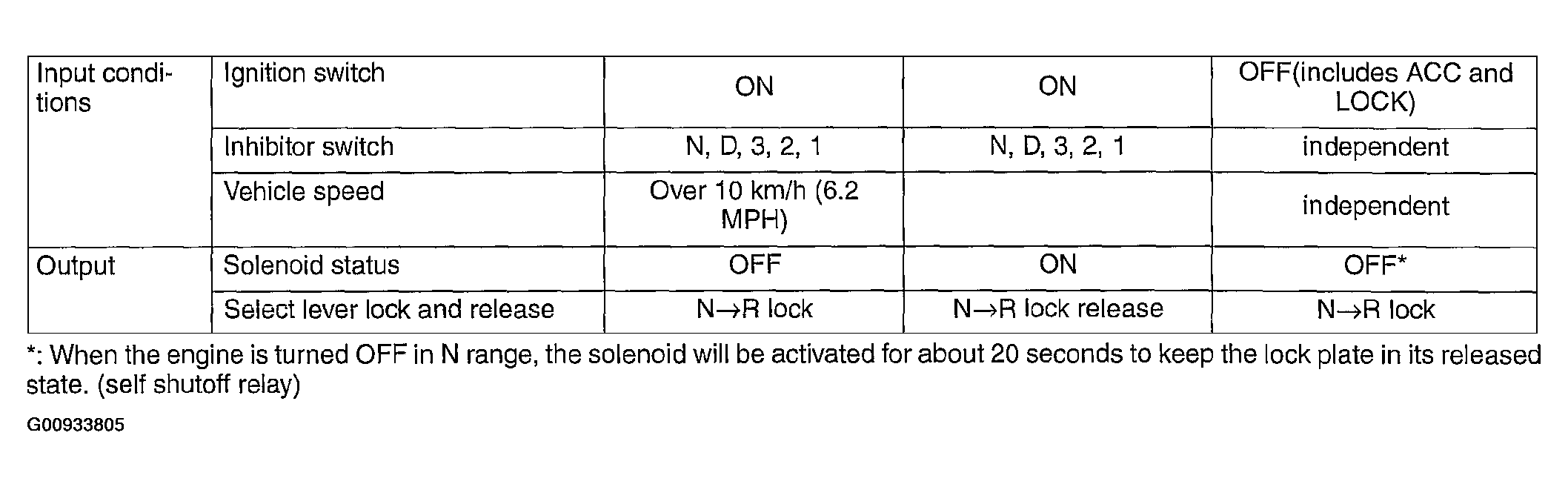

Fig 1: N-R Lock Operating Conditions Chart

G00933805

Courtesy of SUBARU OF AMERICA, INC.
