Rear Vehicle Speed Sensor

This vehicle speed sensor (output shaft speed sensor) is externally mounted on the extension case. It detects the rear wheel speed in terms of the peripheral speed of the transfer clutch drum and sends sine wave signals (30 pulses per rotation) to the TCM.

• Non-turbo models

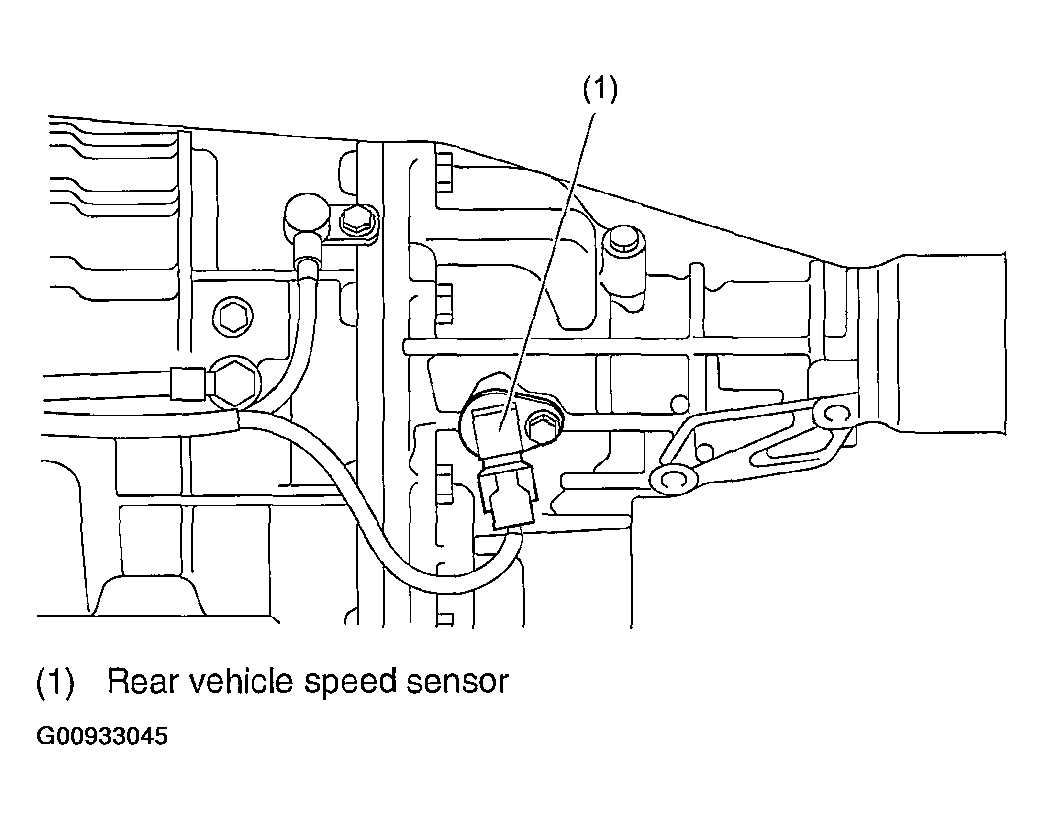

  Fig 1: Locating Rear Vehicle Speed Sensor - Non-Turbo Models

  Courtesy of SUBARU OF AMERICA, INC.
• Turbo models

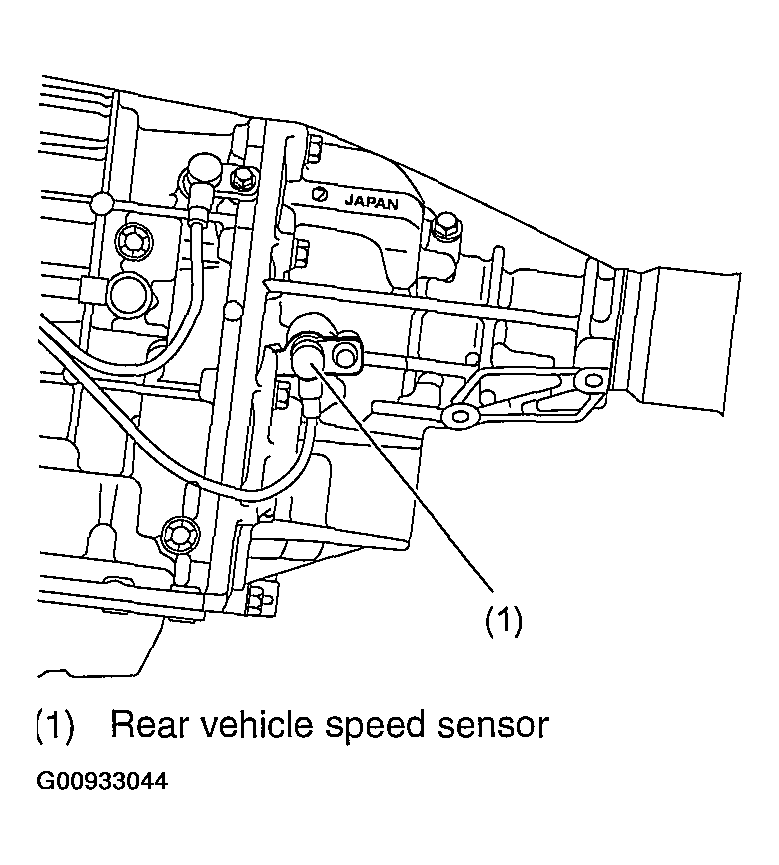

  Fig 2: Locating Rear Vehicle Speed Sensor - Turbo Models

  Courtesy of SUBARU OF AMERICA, INC.
