Extension Case: Assembly
- Using the ST and a press, press in a new oil seal.
- ST 498057300 INSTALLER
- Press in the dust cover.

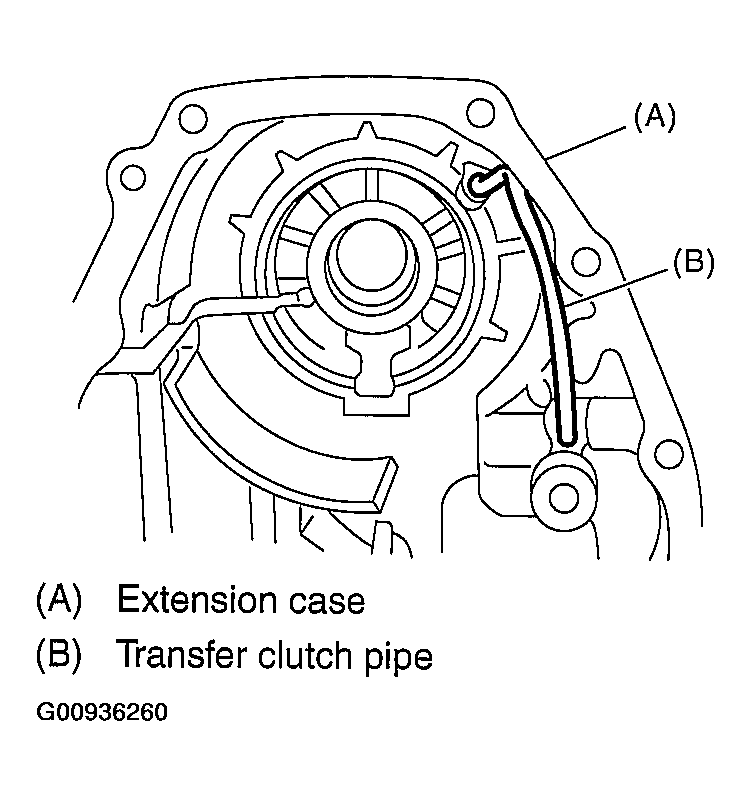

- Install the transfer clutch pipe to extension case without bending pipe.
Courtesy of SUBARU OF AMERICA, INC.

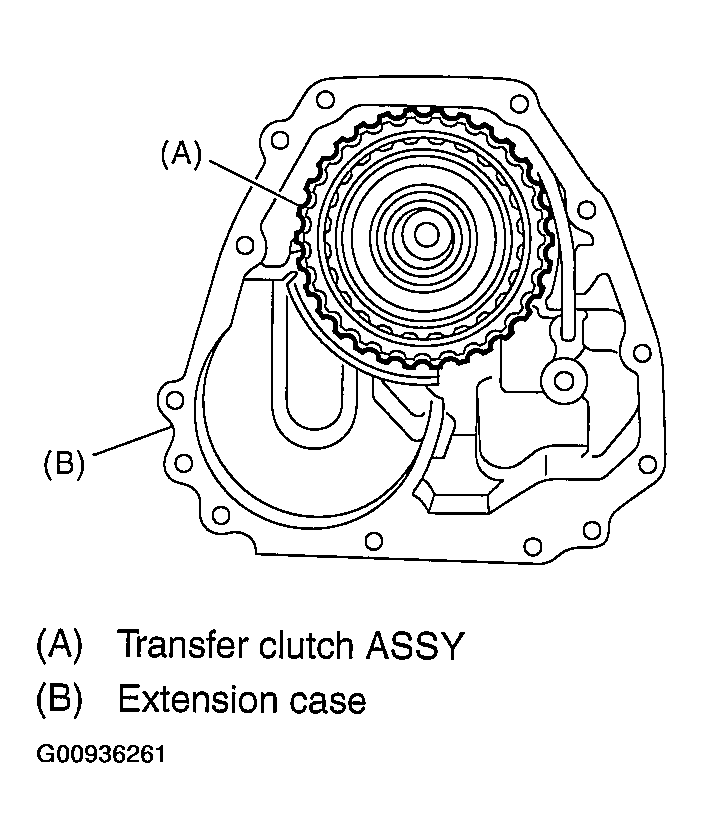

- Install the transfer clutch assembly to the case.
NOTE:
- Be careful not to damage the seal rings.
- Insert the transfer clutch assembly fully into position until the bearing shoulder bottoms.
Courtesy of SUBARU OF AMERICA, INC.
