Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Remove the screws which secure upper column cover to lower column cover.
    Fig 1: Removing Screws
    G03809127Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from combination switch.
  5. Remove the screws which secure switch, and then remove the switch.

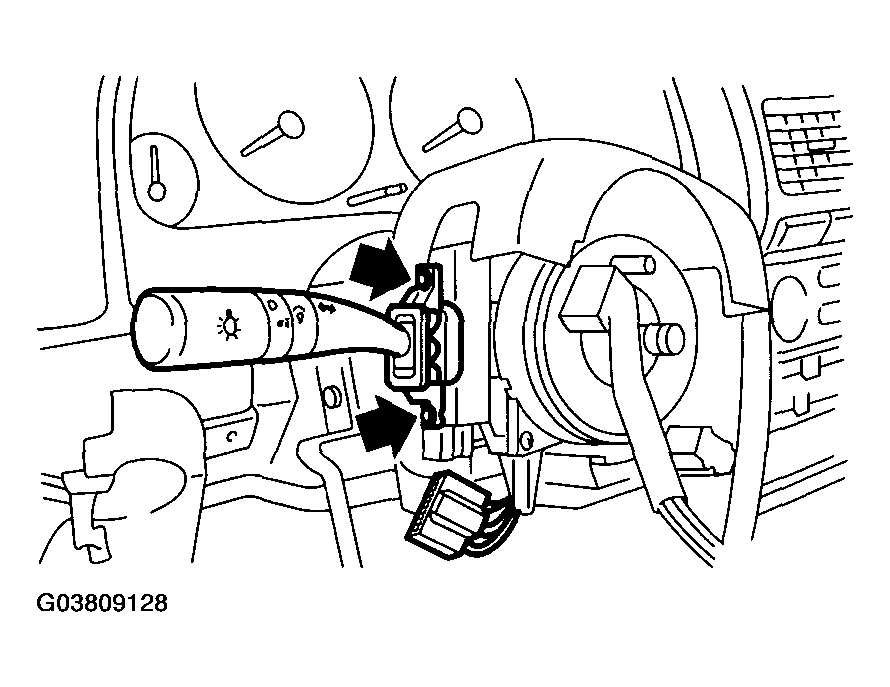

    Fig 2: Removing Screws And Switch
    G03809128Courtesy of SUBARU OF AMERICA, INC.
