Front Differential Assembly: Installation

  1. Insert the bearing outer race to transmission case.
    NOTE: Apply the transmission gear oil to outer surface of bearing outer race.
  2. Install the differential side retainers using ST.

    ST 499787000 WRENCH ASSY

  3. Install the differential assembly.
    NOTE:
    • Be careful not to fold the sealing lip of oil seal.
    • Wrap the right and left spline sections of axle shaft with vinyl tape to prevent scratches.

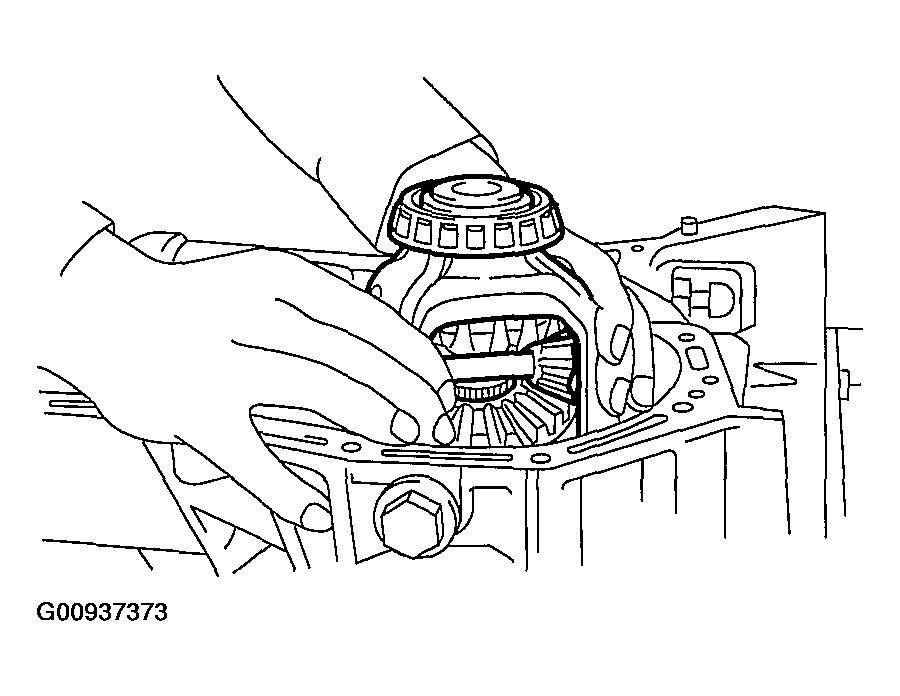

    Fig 1: Identifying Differential Assembly
    G00937373Courtesy of SUBARU OF AMERICA, INC.
  4. Install the main shaft assembly. < Ref. to INSTALLATION . >
  5. Install the drive pinion assembly. < Ref. to INSTALLATION . >
  6. Install the transmission case. < Ref. to INSTALLATION . >
  7. Install the transfer case with extension case assembly. < Ref. to INSTALLATION . >
  8. Install the manual transmission assembly to vehicle. < Ref. to INSTALLATION . >
