Transfer Case And Extension

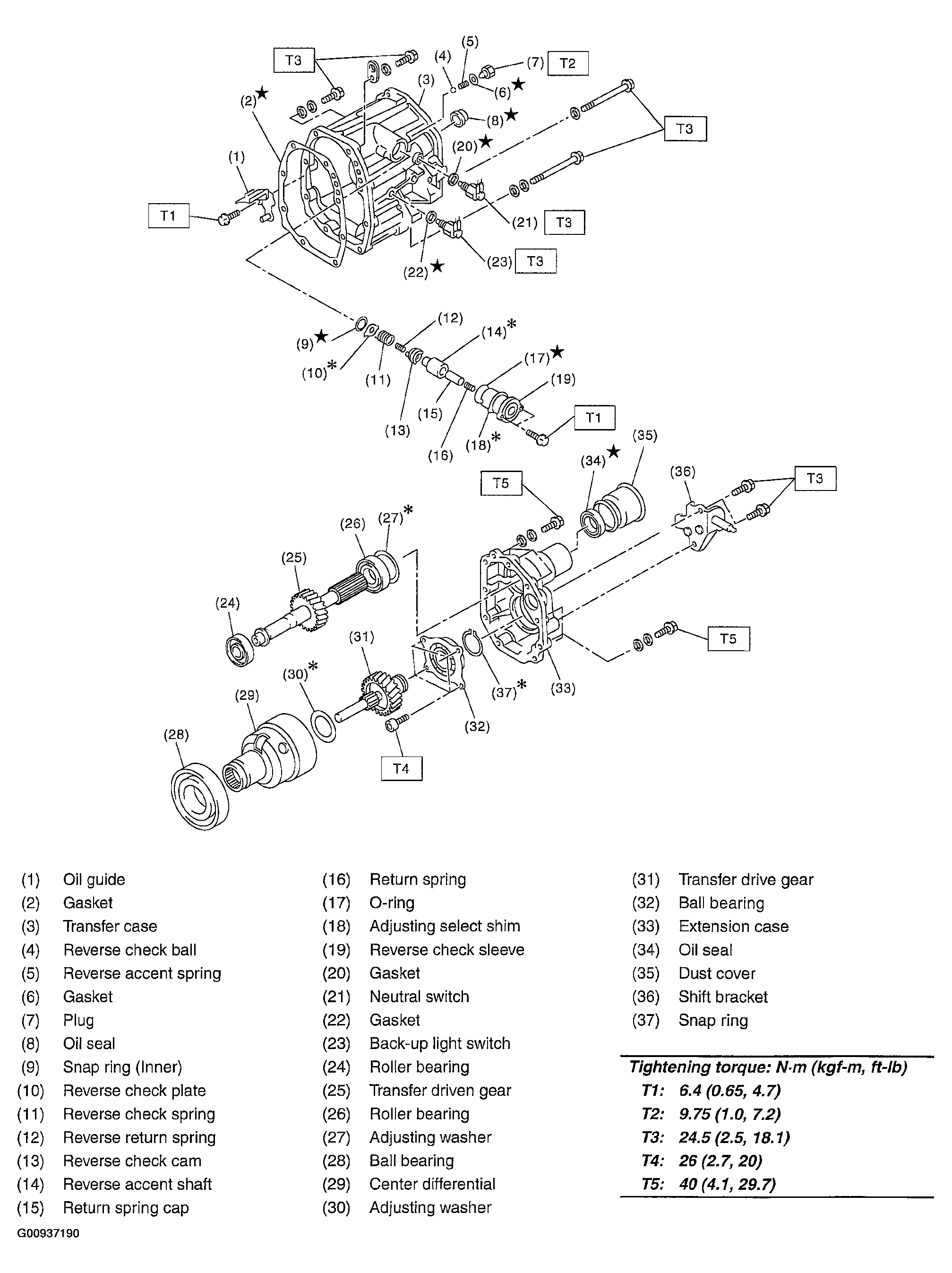

Fig 1: Exploded View Of Transfer Case And Extension Components With Torque Specifications
G00937190Courtesy of SUBARU OF AMERICA, INC.
