SOHC Models

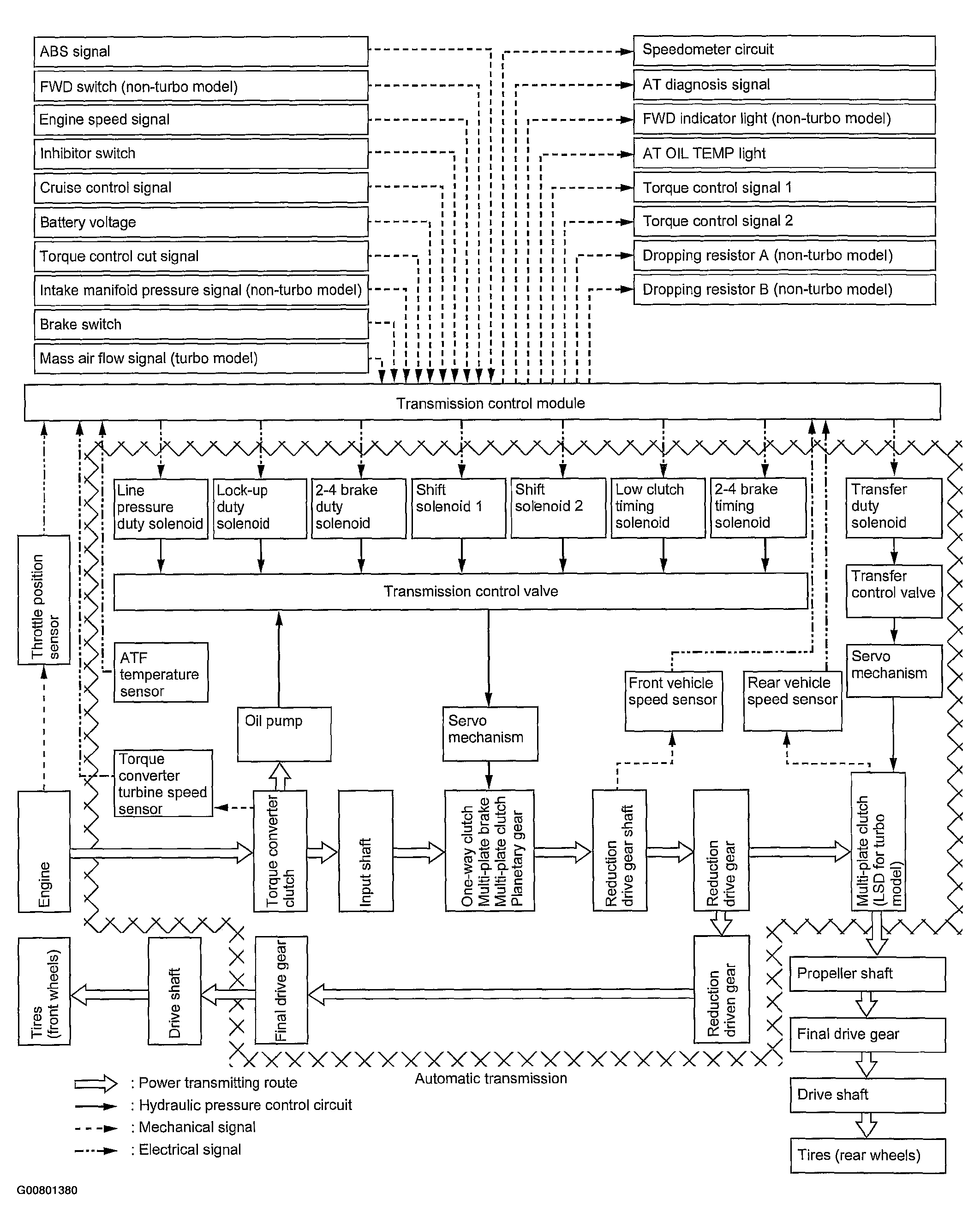

Fig 1: Identifying Schematic Diagrams (SOHC MODELS)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
