Fuel Sub Level Sensor: Removal

WARNING:

Disconnect the ground cable from battery.

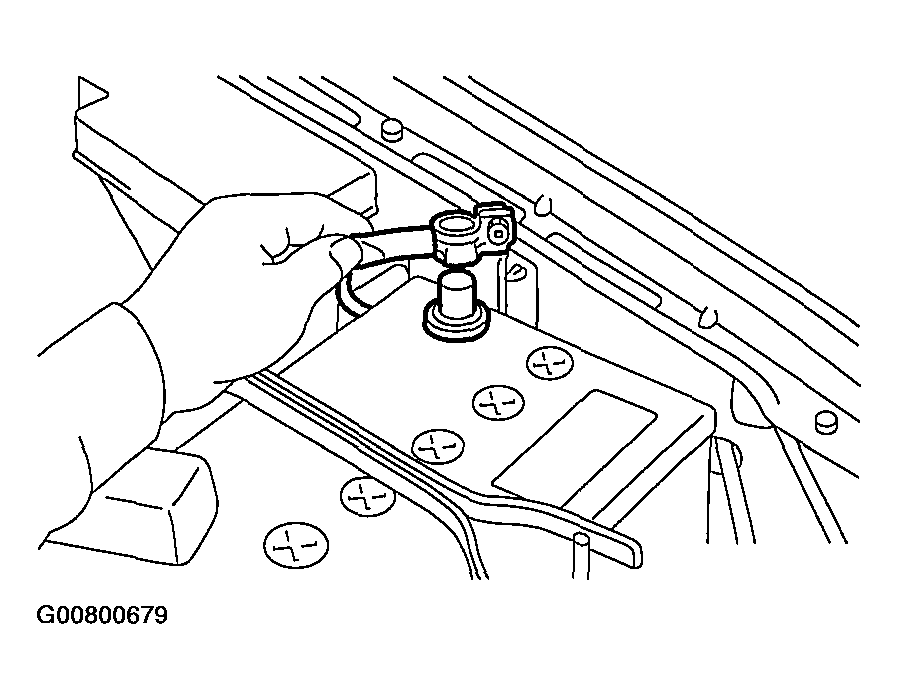

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Drain the fuel from the fuel tank. < Ref. to DRAINING FUEL , Operation, Fuel.>
Set a container under the vehicle and remove the drain plug from the fuel tank.

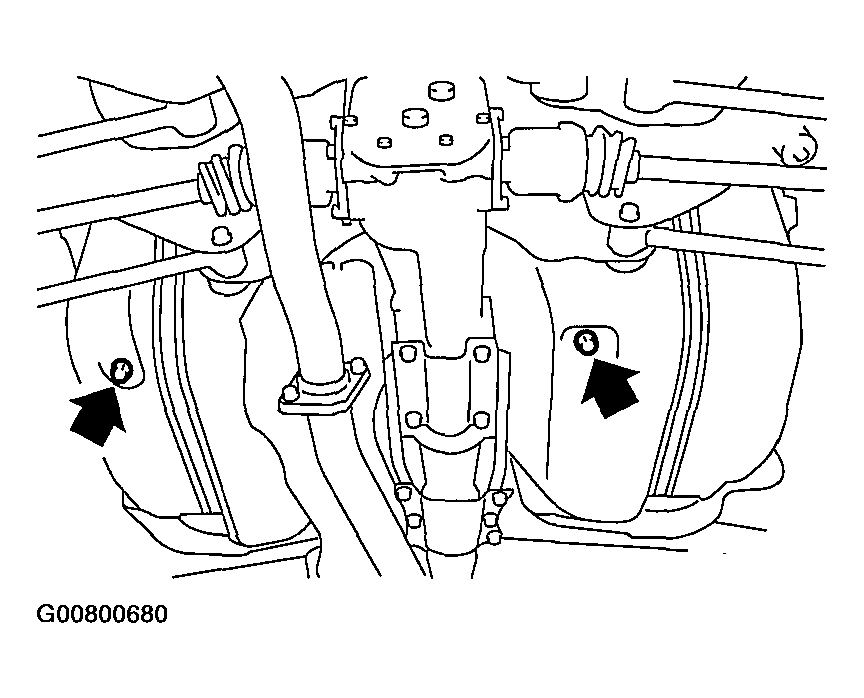

Fig 2: Identifying Fuel Tank Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque:

26 N.m (2.65 kgf-m, 19.2 ft-lb)
Remove the rear seat.
Remove the service hole cover.

Fig 3: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.
Disconnect the fuel jet pump hose.

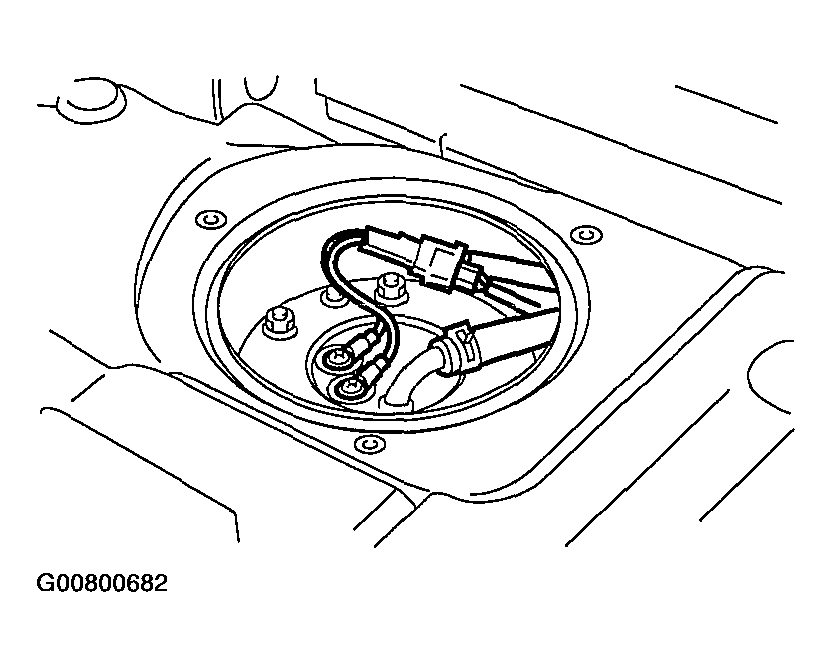

Fig 4: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the fuel sub level sensor on the fuel tank.

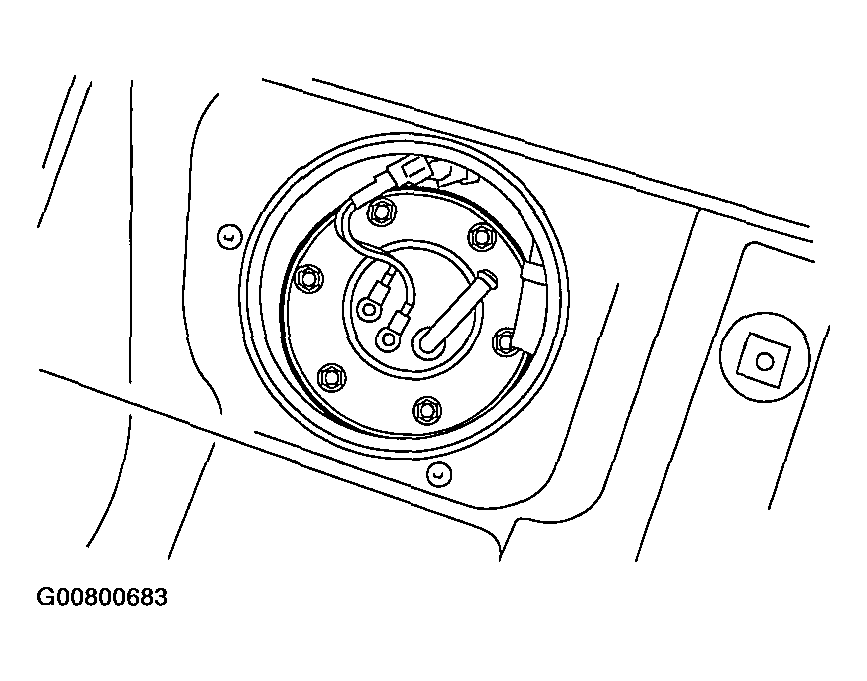

Fig 5: Removing Bolts From Fuel Sub Level Sensor On Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.

Fig 6: Removing Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
