Basic Diagnostic Procedure: Procedure: Engine

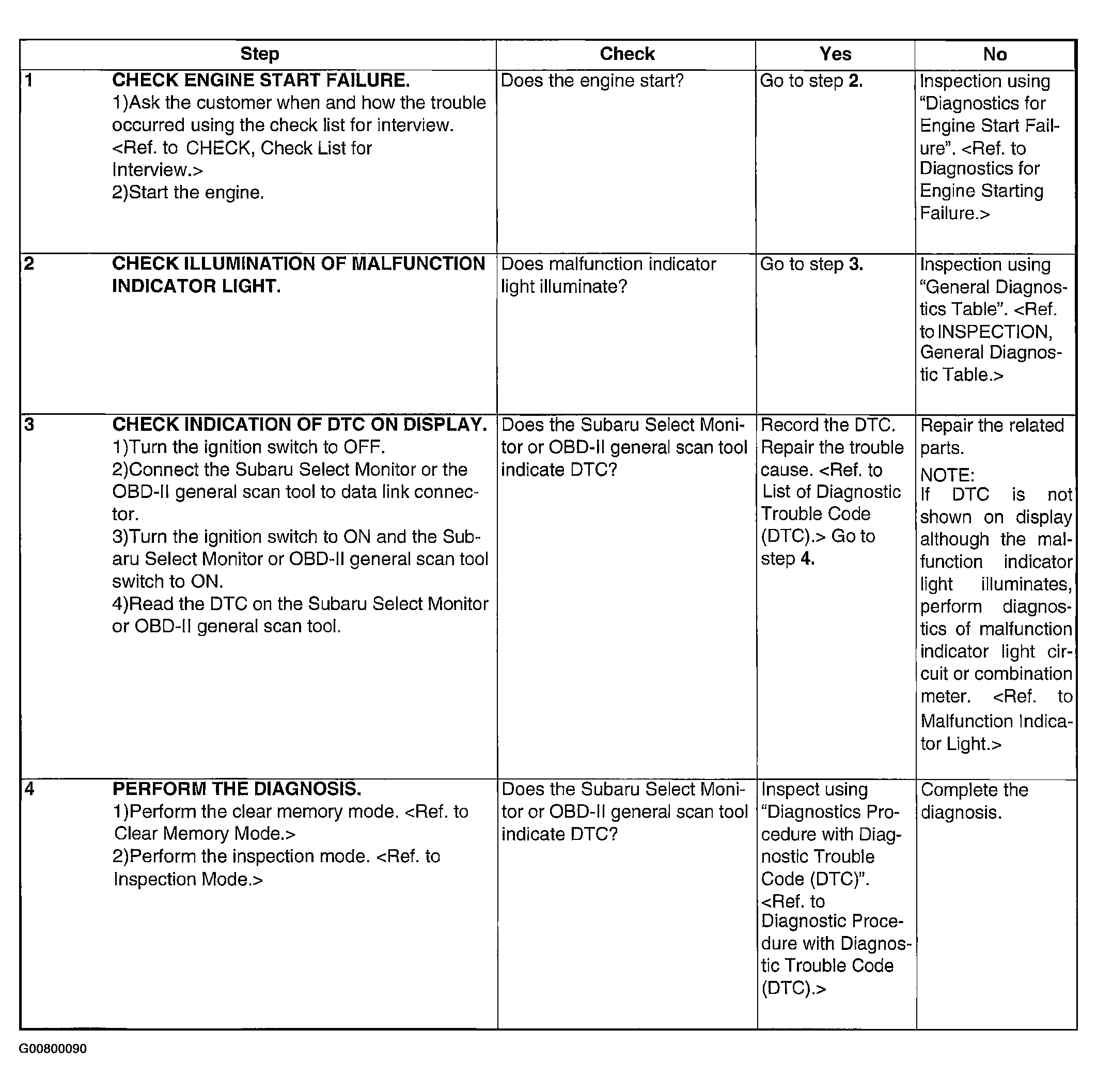

Fig 1: Basic Diagnostic Procedure Chart
G00800090Courtesy of SUBARU OF AMERICA, INC.
