Electrical Specification

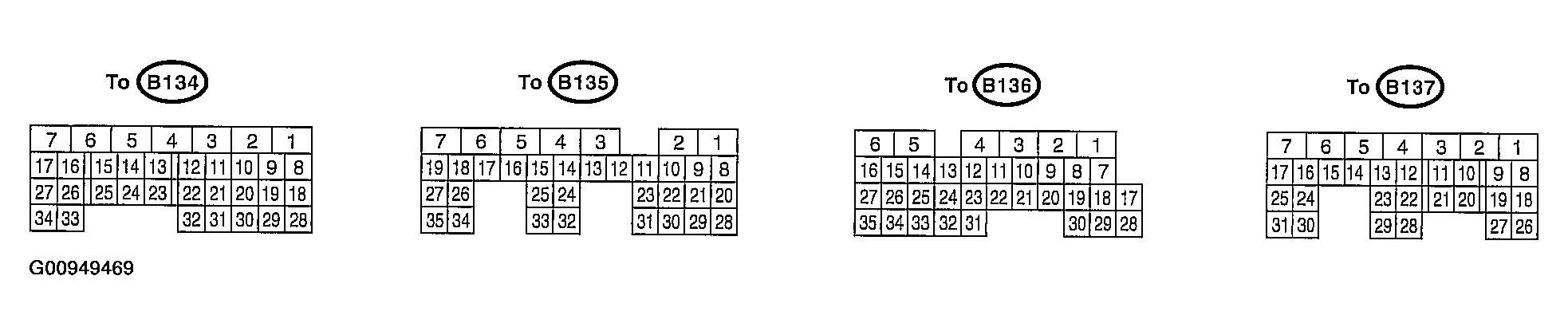

Fig 1: Identifying Engine Control Module (ECM) I/O Signal (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

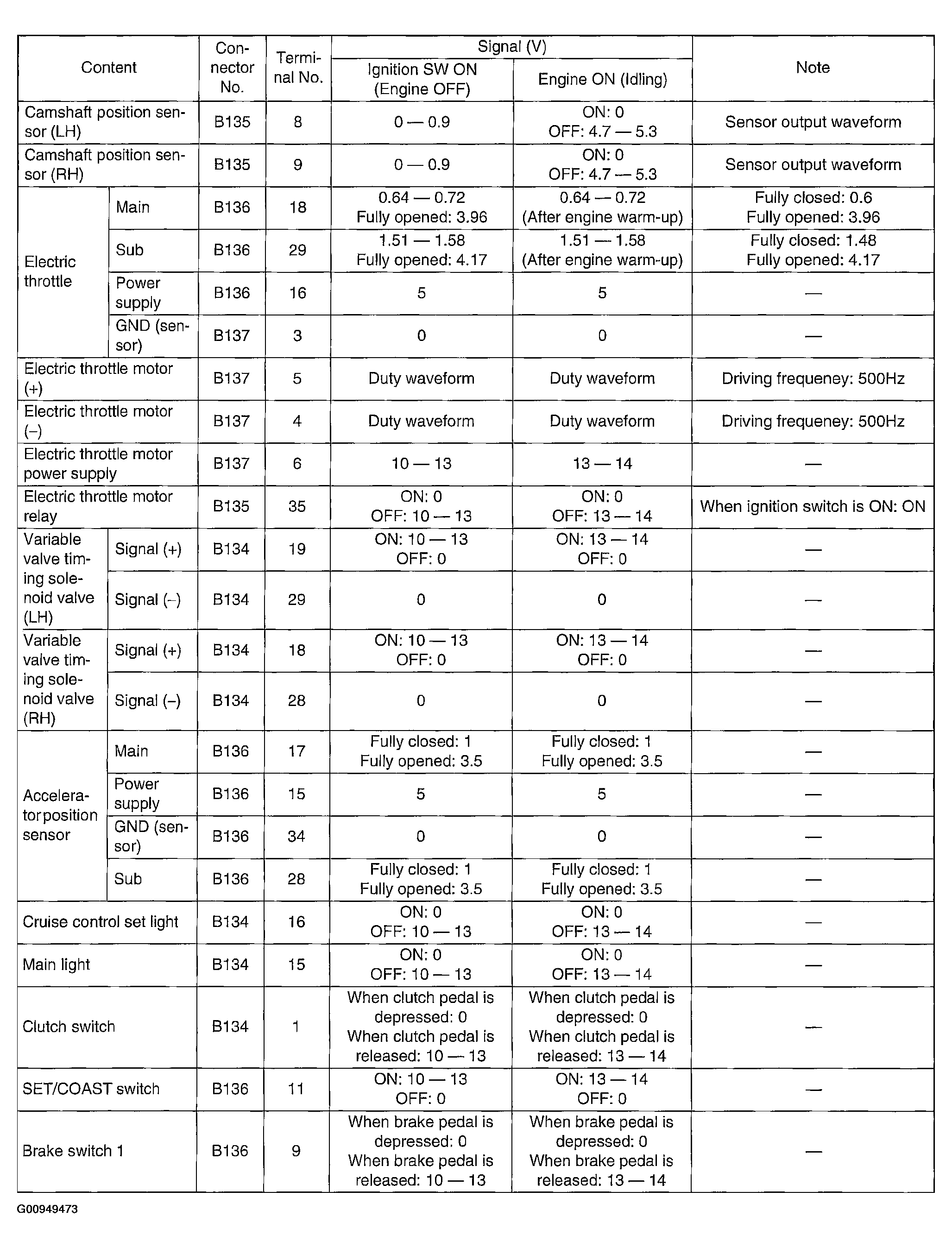

Fig 2: Identifying Engine Control Module (ECM) I/O Signal (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

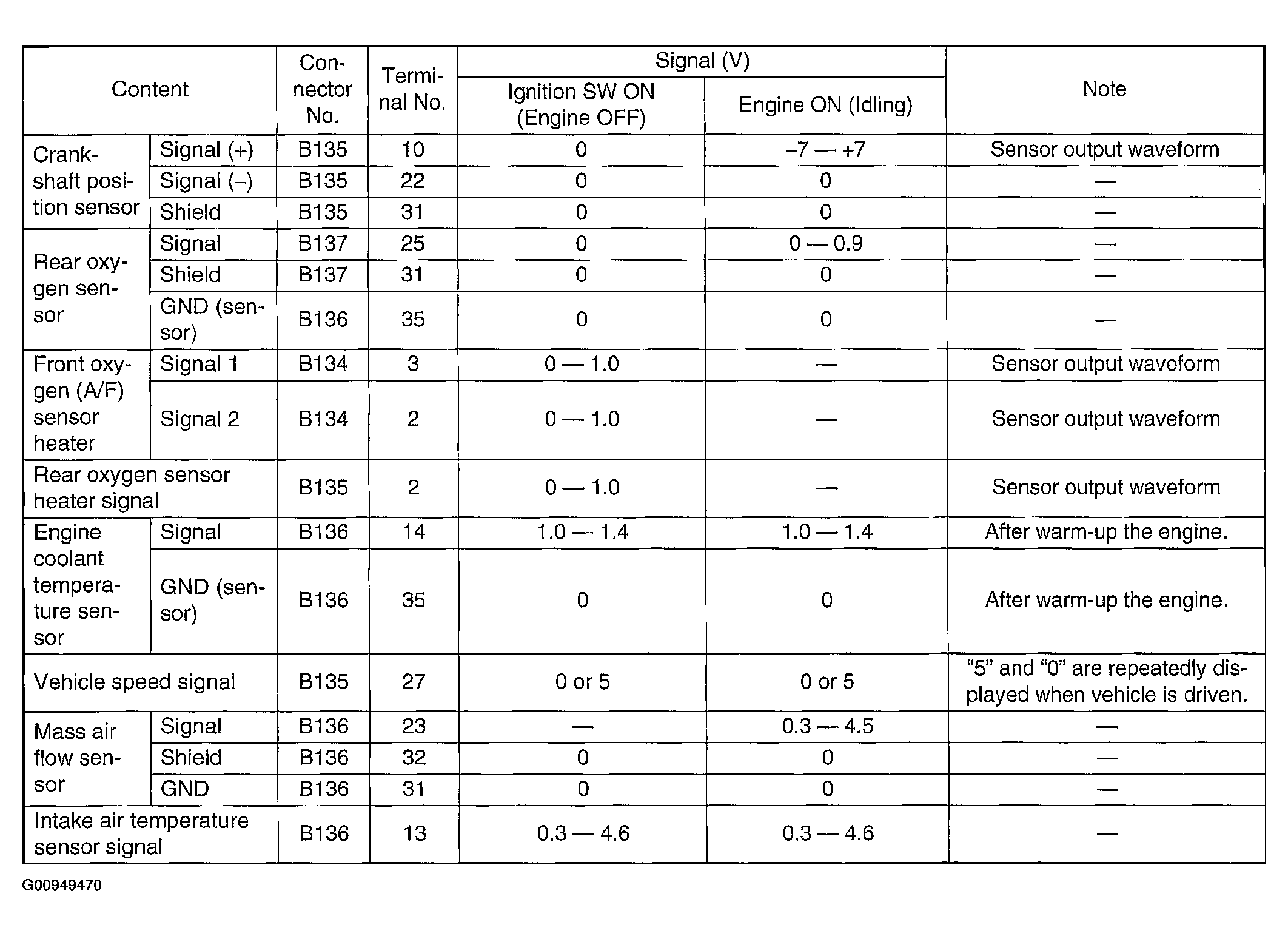

Fig 3: Identifying Engine Control Module (ECM) I/O Signal (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

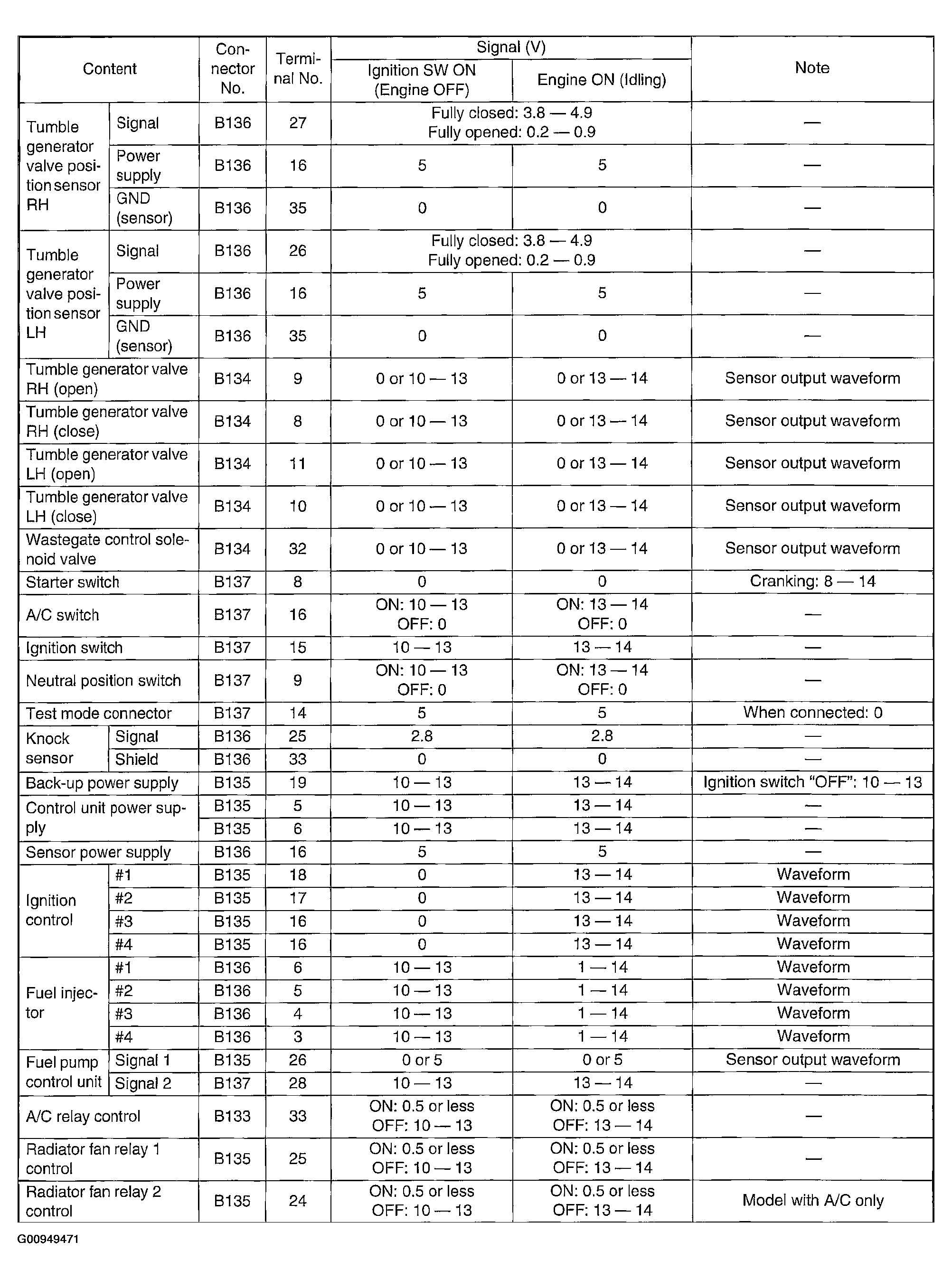

Fig 4: Identifying Engine Control Module (ECM) I/O Signal (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

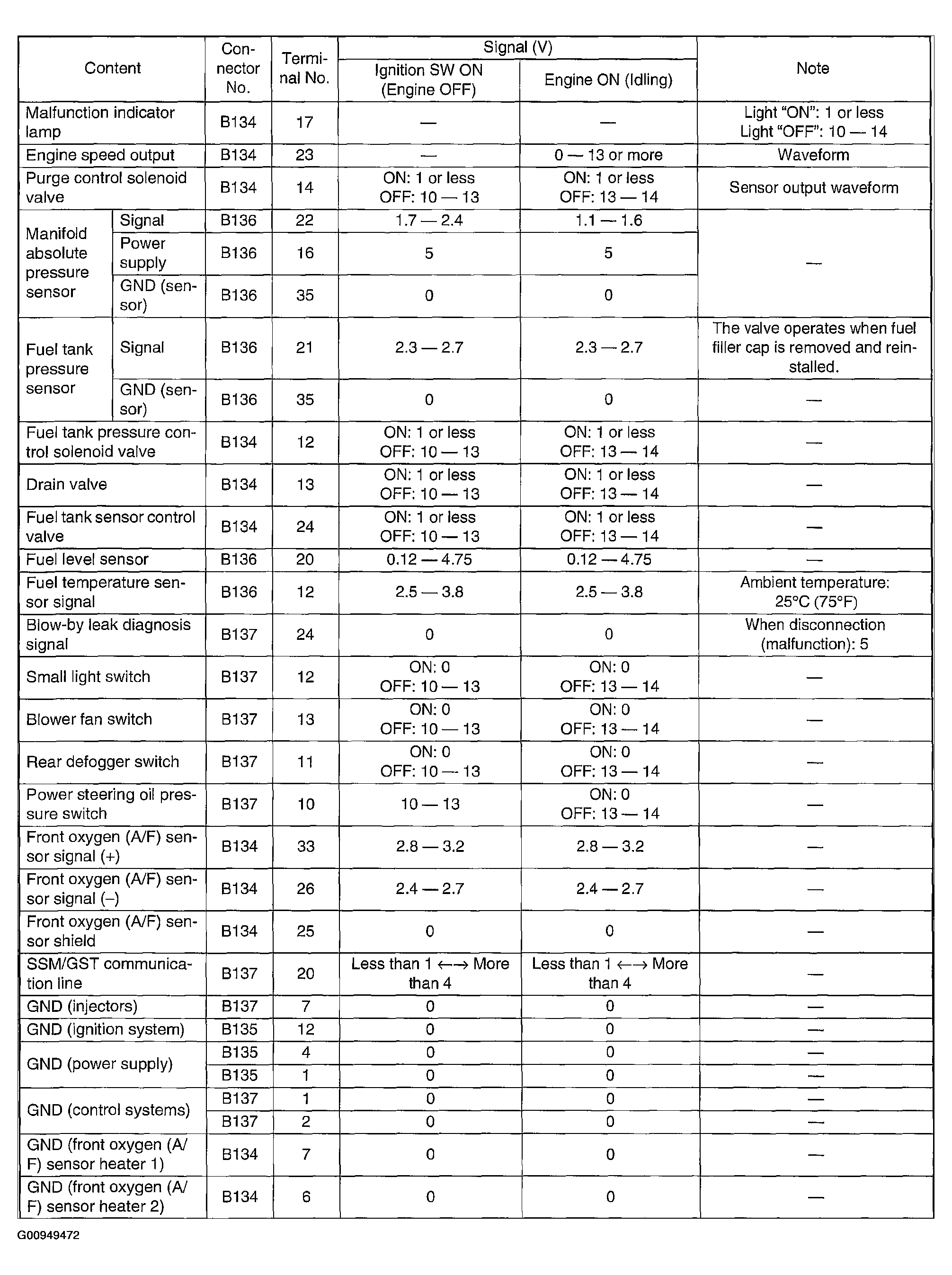

Fig 5: Identifying Engine Control Module (ECM) I/O Signal (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

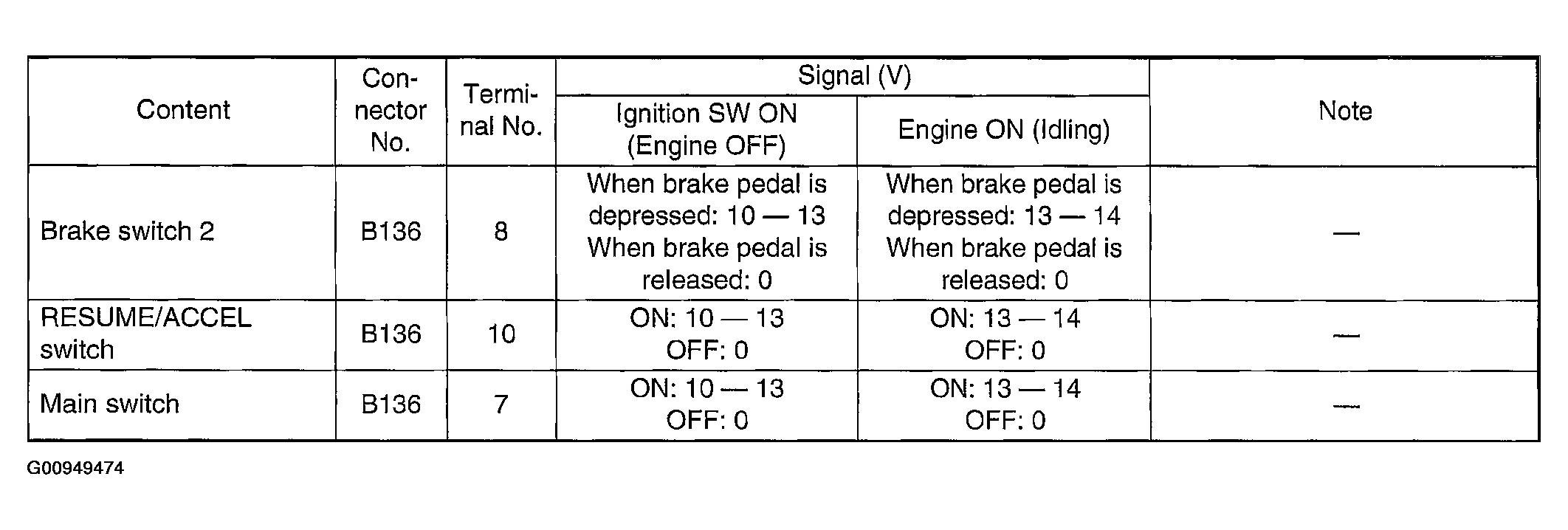

Fig 6: Identifying Engine Control Module (ECM) I/O Signal (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
