IGNITION (STi): General Description: Component

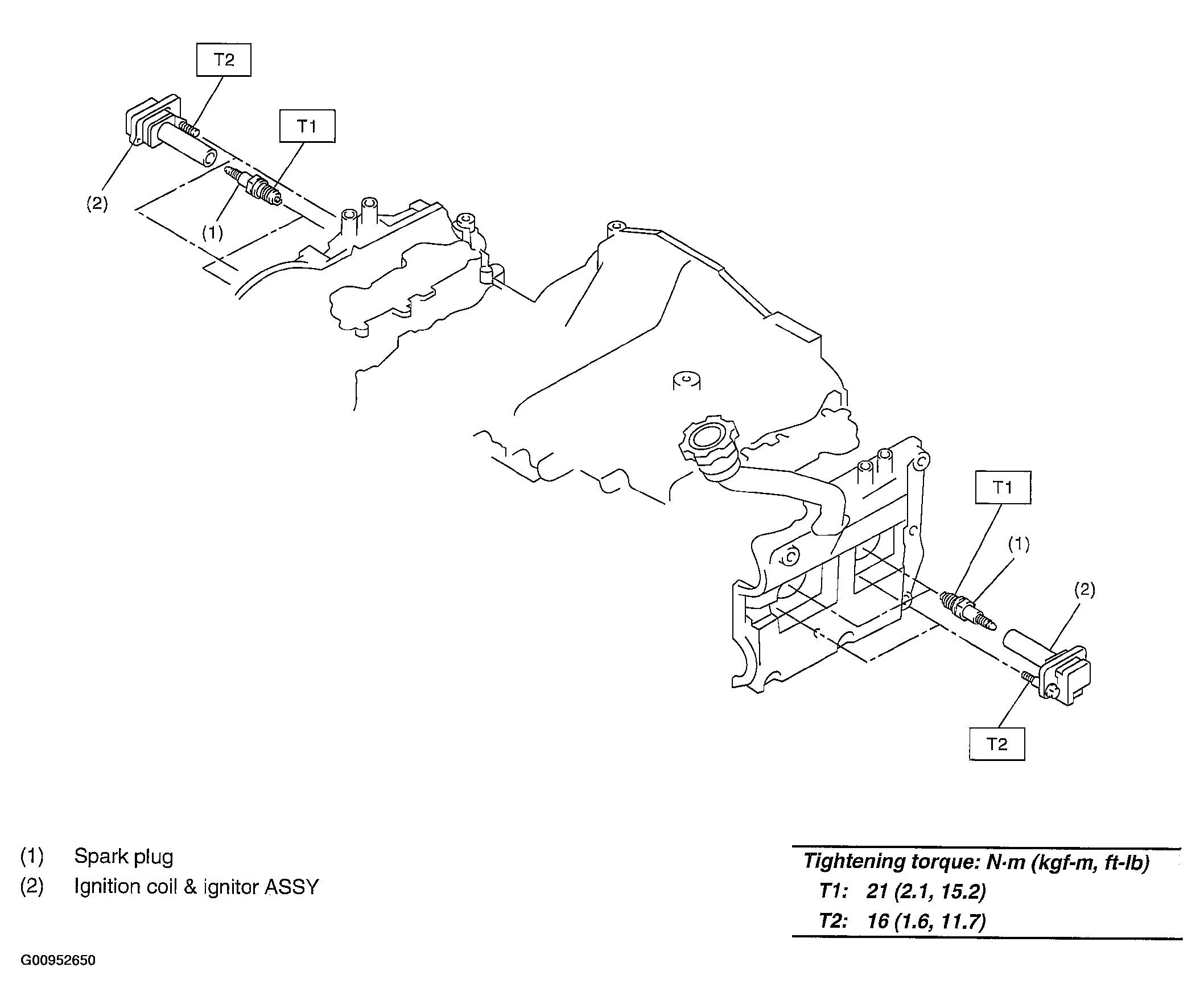

Fig 1: Exploded View Of Ignition Components With Torque Specifications
G00952650Courtesy of SUBARU OF AMERICA, INC.
