Procedures - U5/Low Emissions

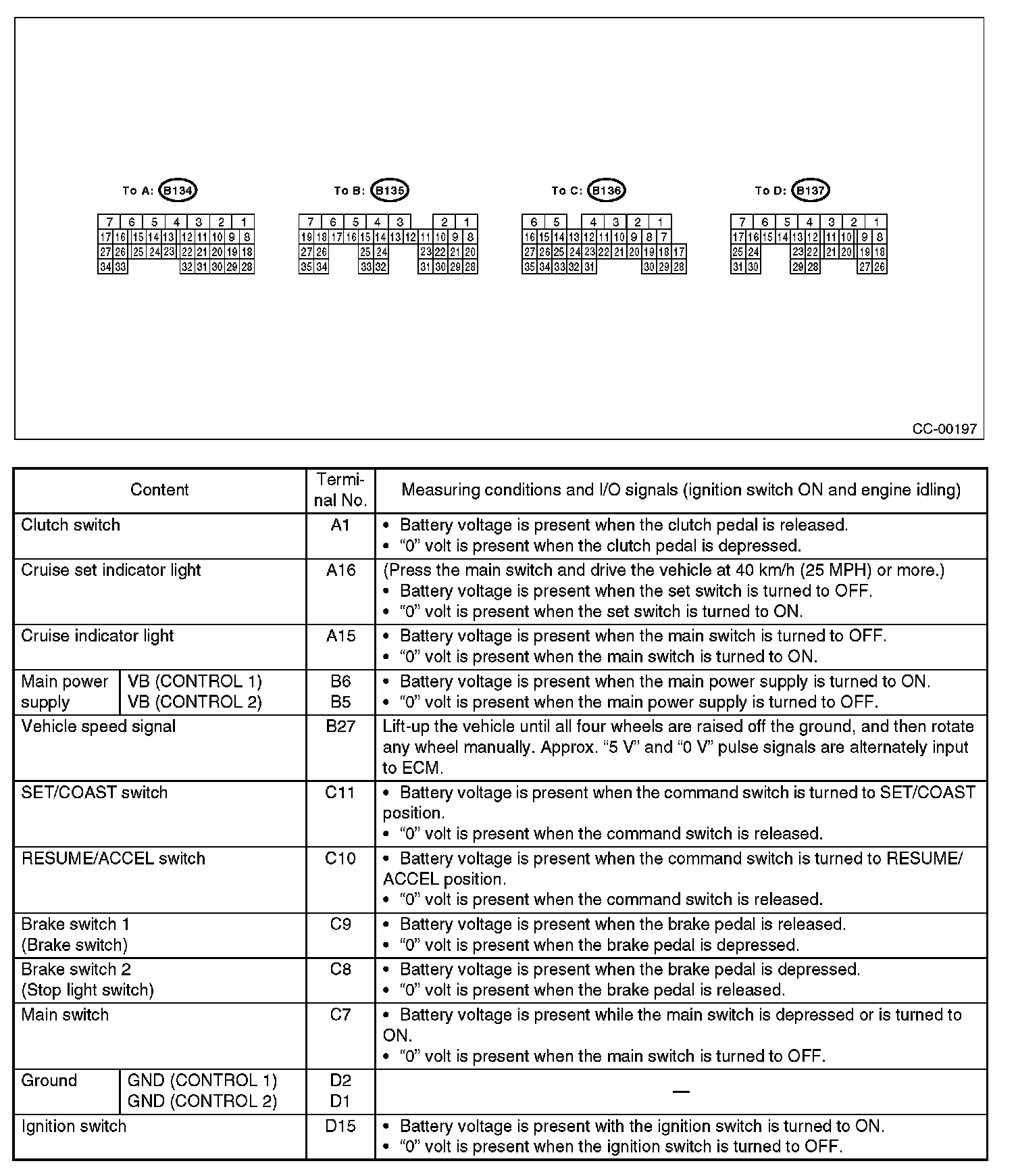

Electrical Specification - Turbo Model Part 1:

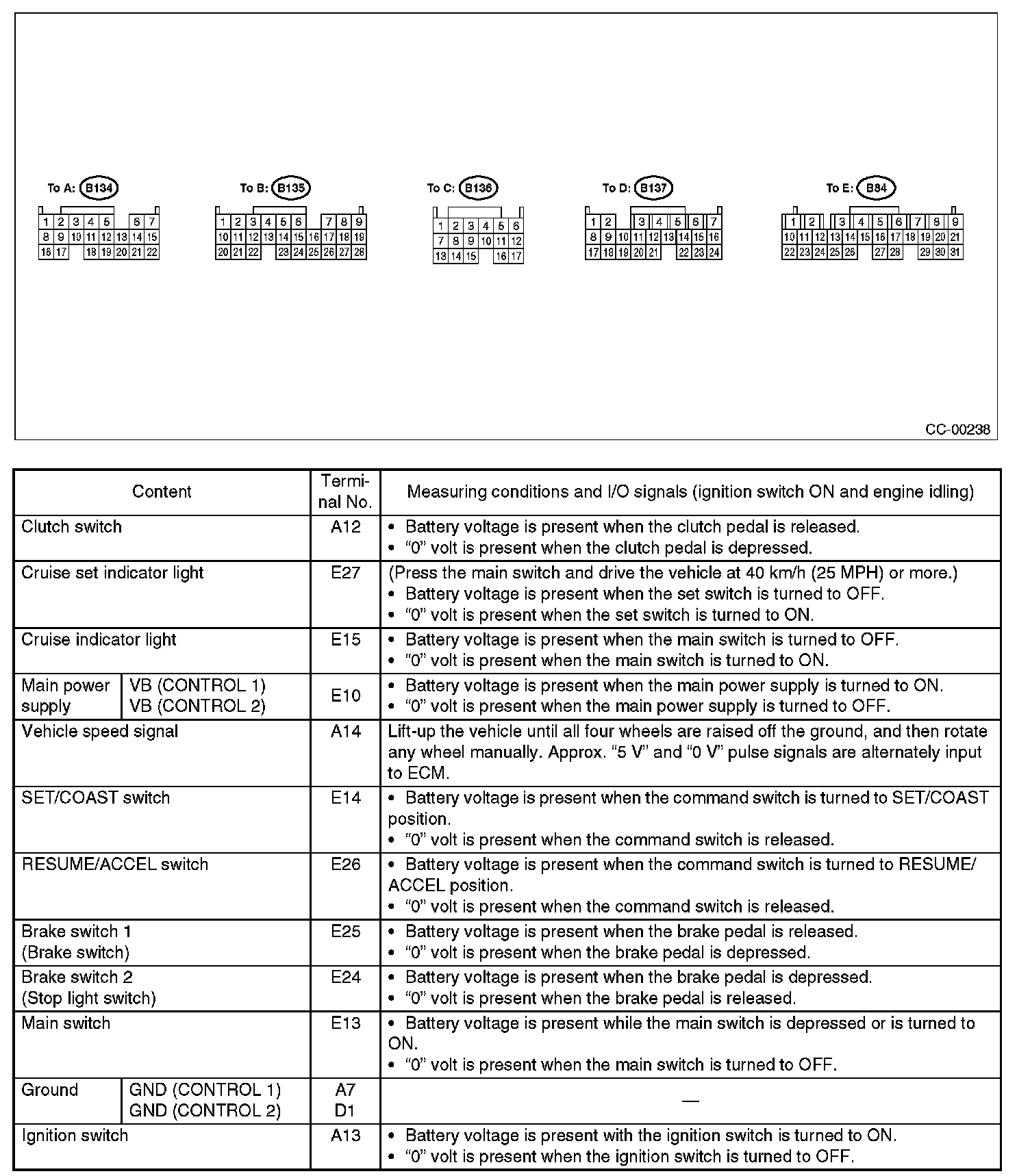

Electrical Specification - Turbo Model Part 2:



Electrical Specification - SOHC Model:
