Pinout Values and Diagnostic Parameters

The content of this article/image reflects the changes identified in tsb 18_99_06 Dated 01/19/06 and applies to Legacy, Forester, Impreza and Baja models.

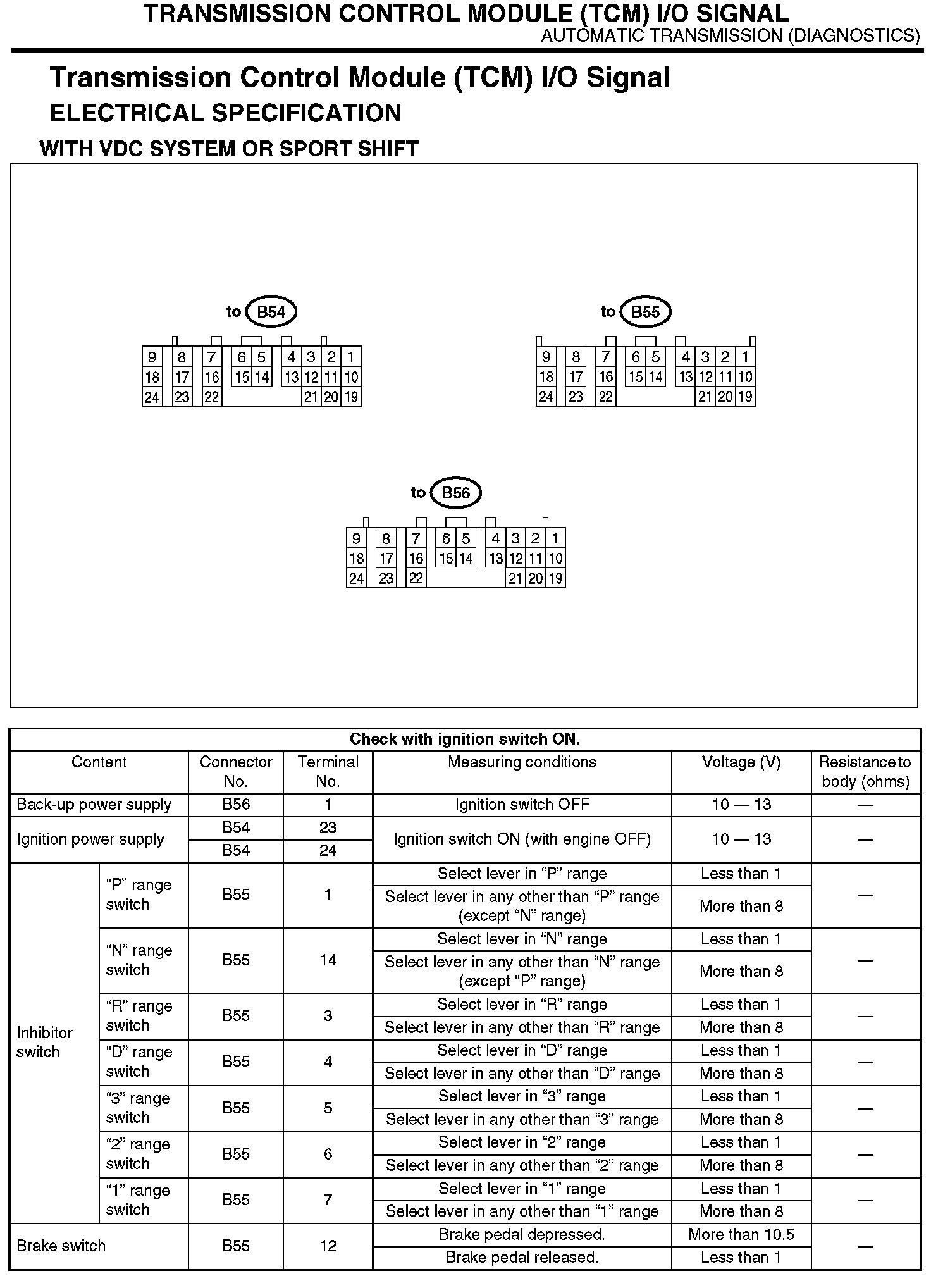

Transmission Control Module (TCM) I/O Signal
ELECTRICAL SPECIFICATION











WITH VDC SYSTEM OR SPORT SHIFT

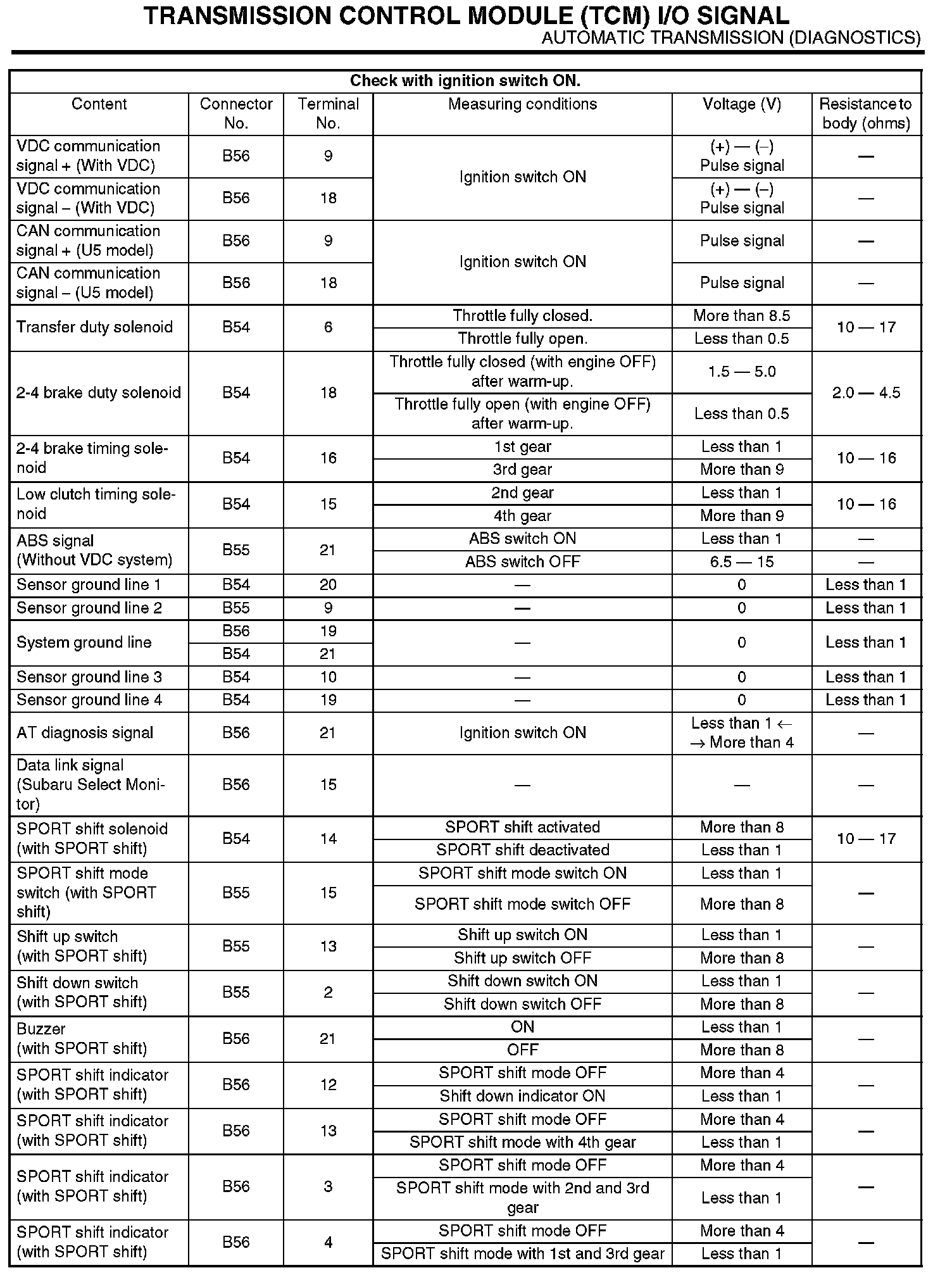

Part 1:

Part 2:

Part 3:

Part 4:

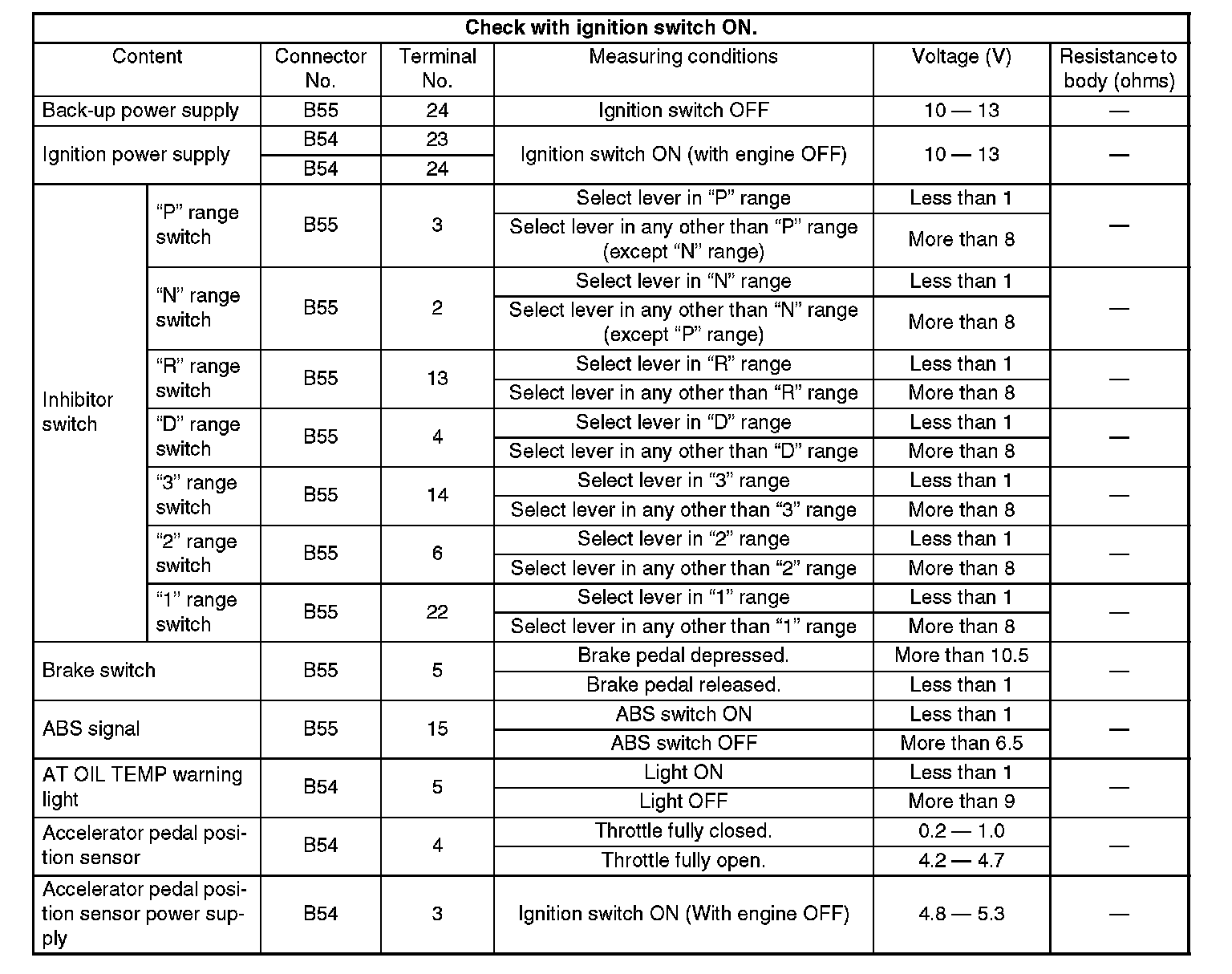

WITHOUT VDC SYSTEM AND SPORT SHIFT (EXCEPT US MODEL)

Part 1:

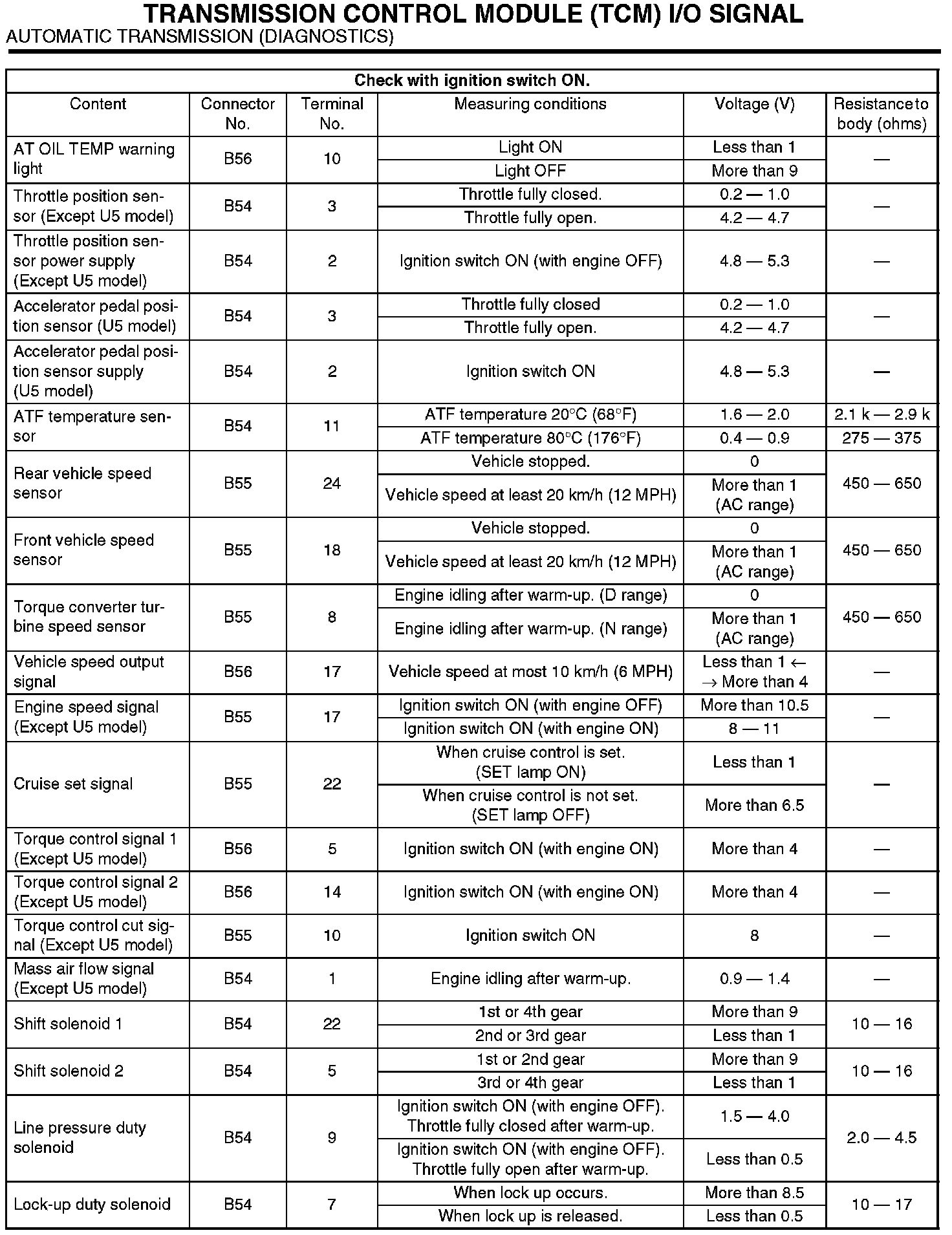

Part 2:

Part 3:

Part 4:

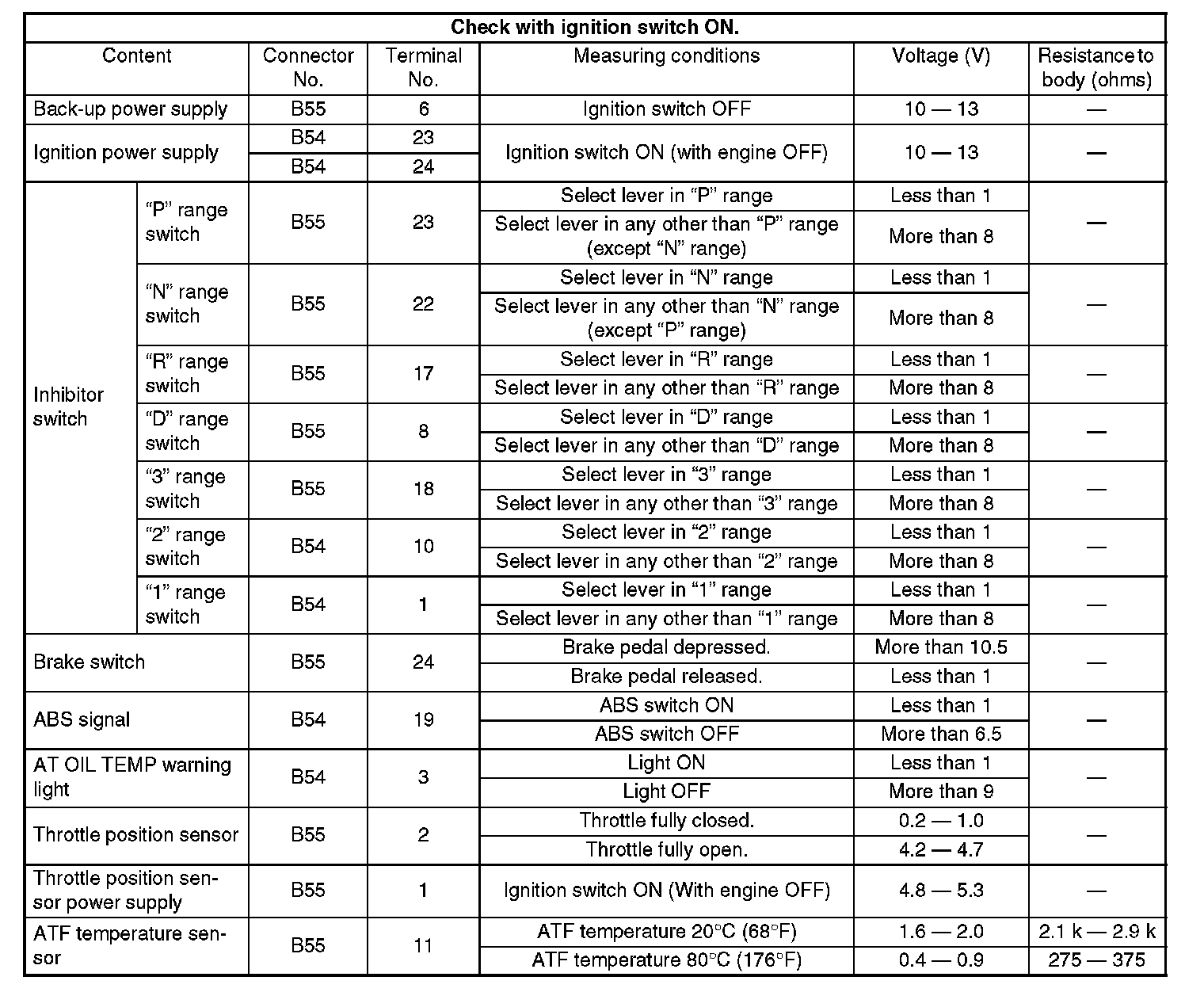

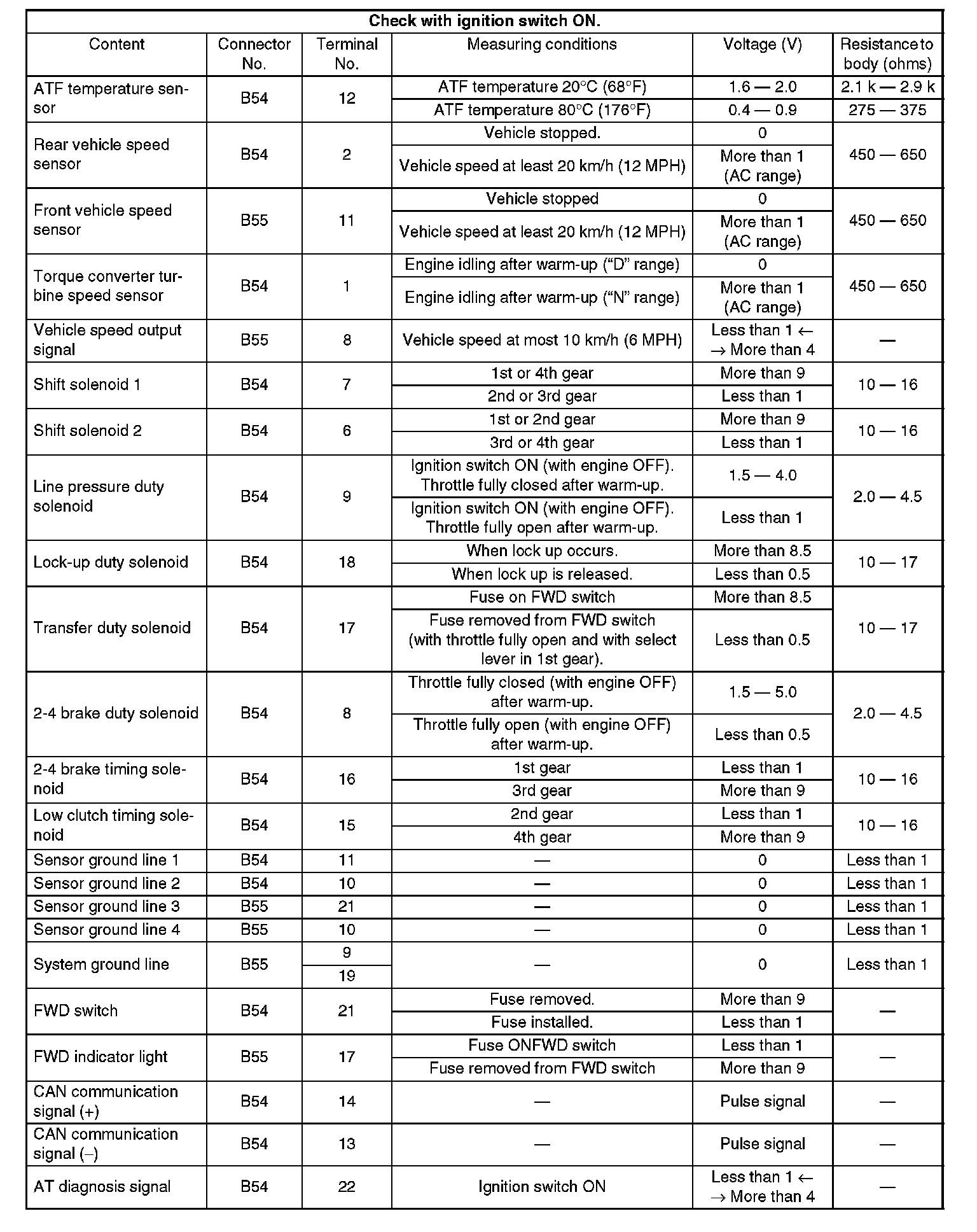

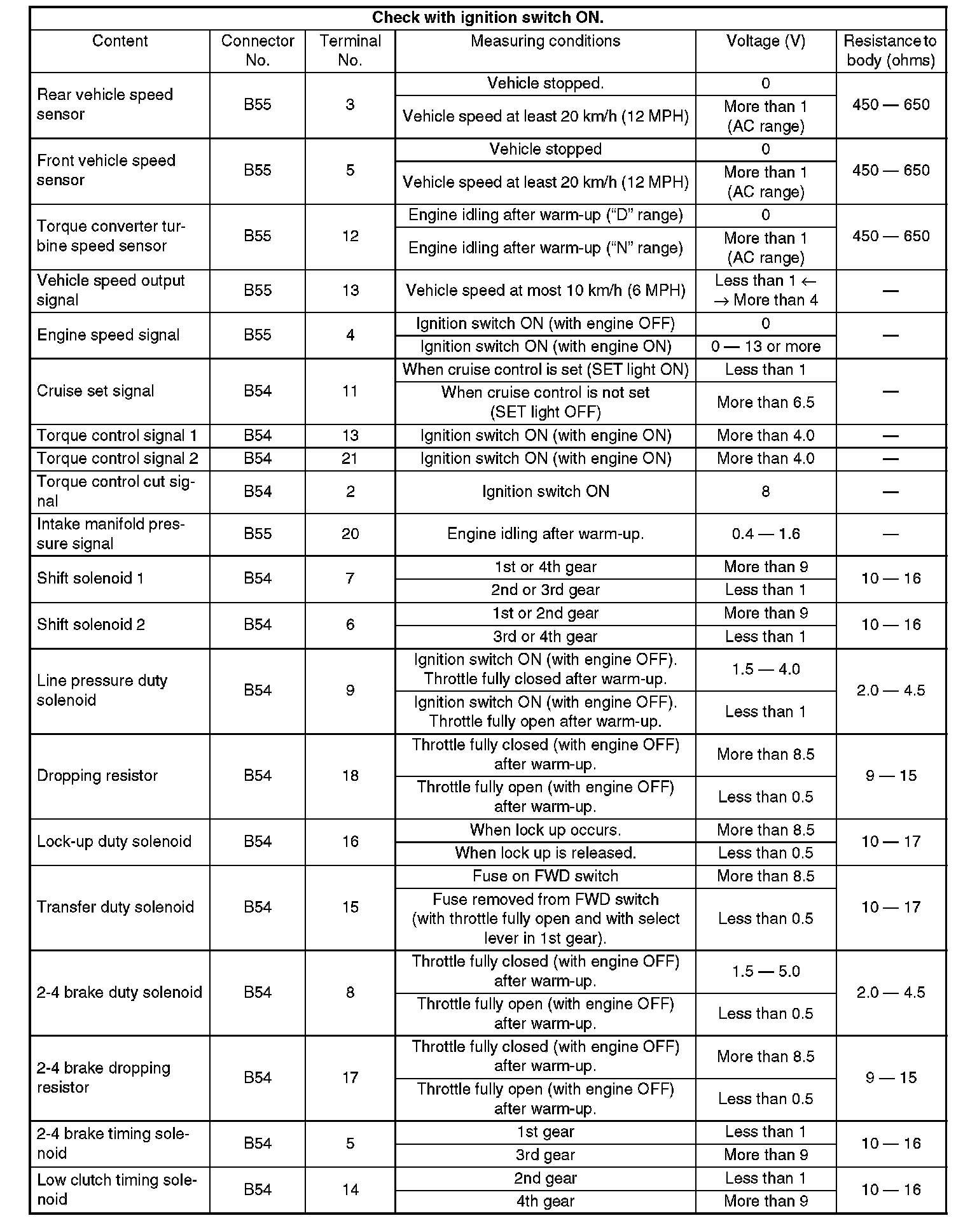

WITHOUT SPORT SHIFT (U5 MODEL)
