Hydraulic Control Unit (H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check valve relay and motor relay for discontinuity or short circuits.

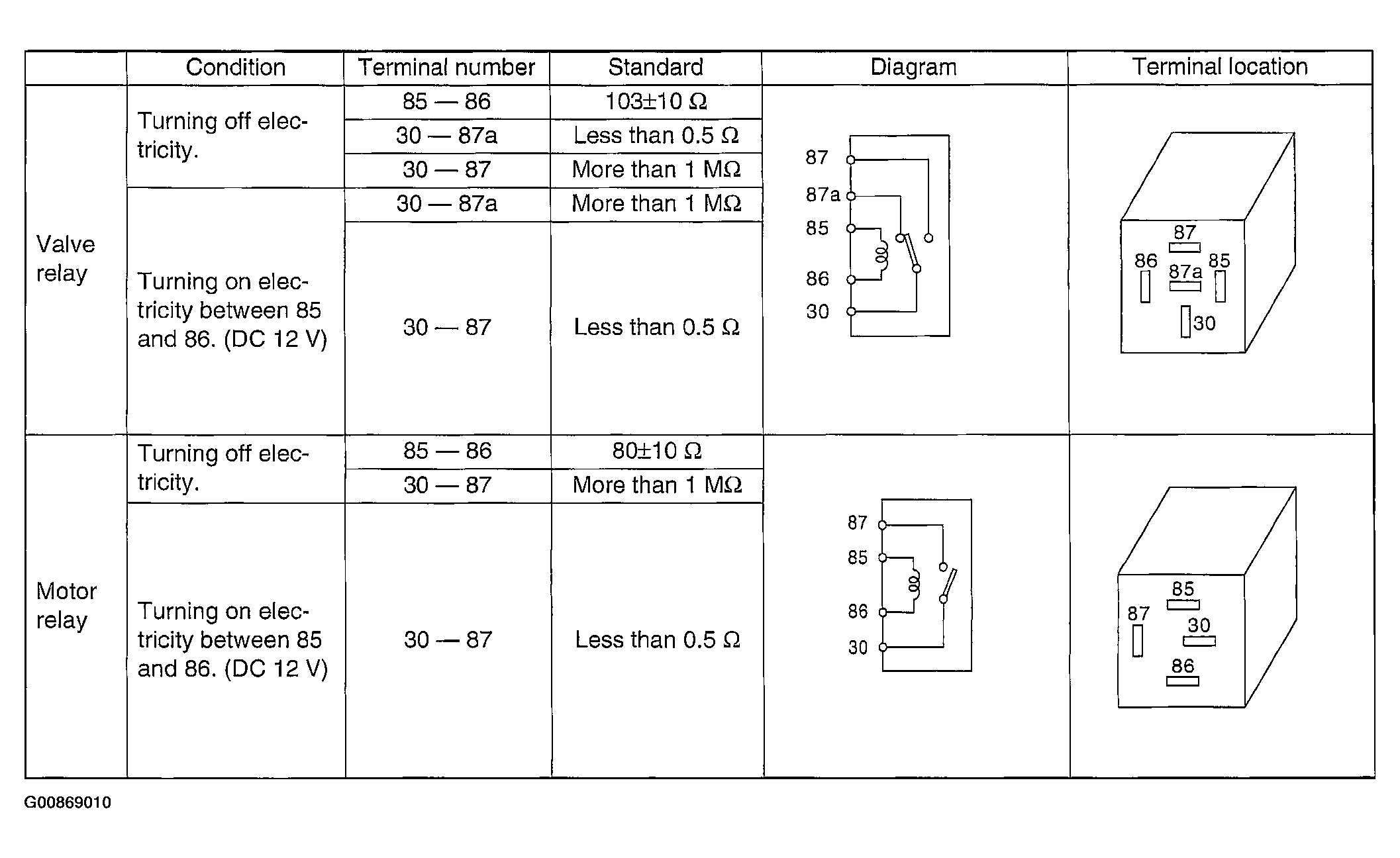

    Fig 1: Inspection Chart
    G00869010Courtesy of SUBARU OF AMERICA, INC.
