LHD Model

  1. Remove screws and clip from instrument panel lower cover.
  2. Remove front cover (A) while disconnecting connector.
  3. Remove two screws (B) and then remove center panel (C) while disconnecting harness connector.
    Fig 1: Removing Center Panel Screws
    G00869042Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fitting screws, and slightly pull radio and switch assembly out from center console.

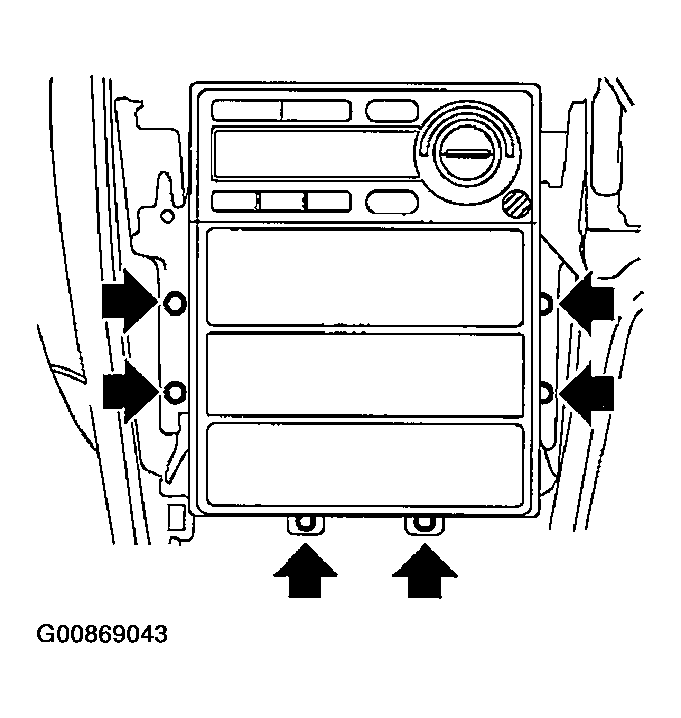

    Fig 2: Removing Fitting Screws
    G00869043Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect harness connectors and antenna feeder cord and then disconnect heater control unit.
  6. Remove screw and detach the bracket and then remove switch panel.

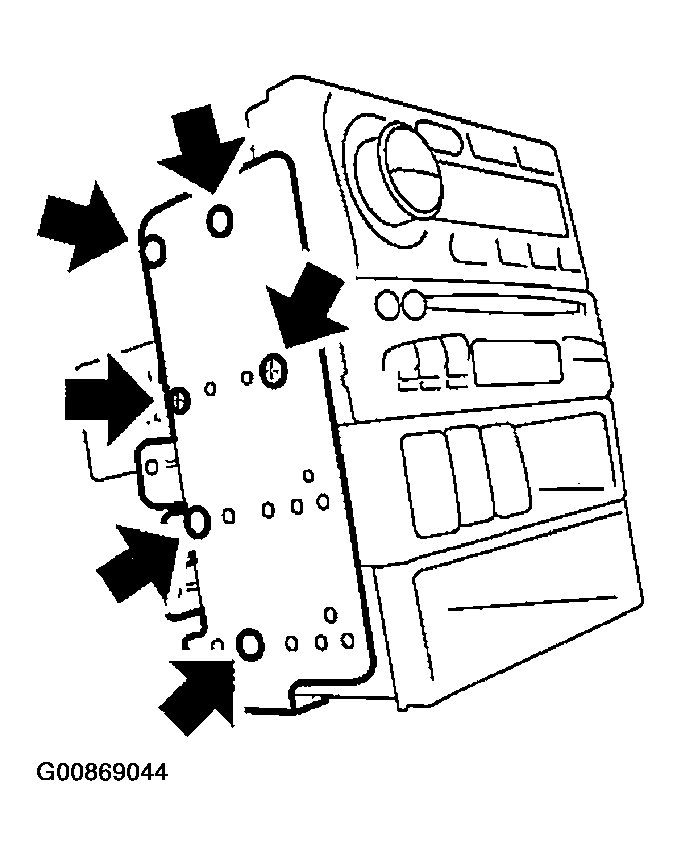

    Fig 3: Removing Switch Panel Screws
    G00869044Courtesy of SUBARU OF AMERICA, INC.
  7. Remove VDC off switch by pushing it outward.
    Fig 4: Removing VDC Off Switch
    G00869045Courtesy of SUBARU OF AMERICA, INC.
