Electrical Components Location: Location: Engine

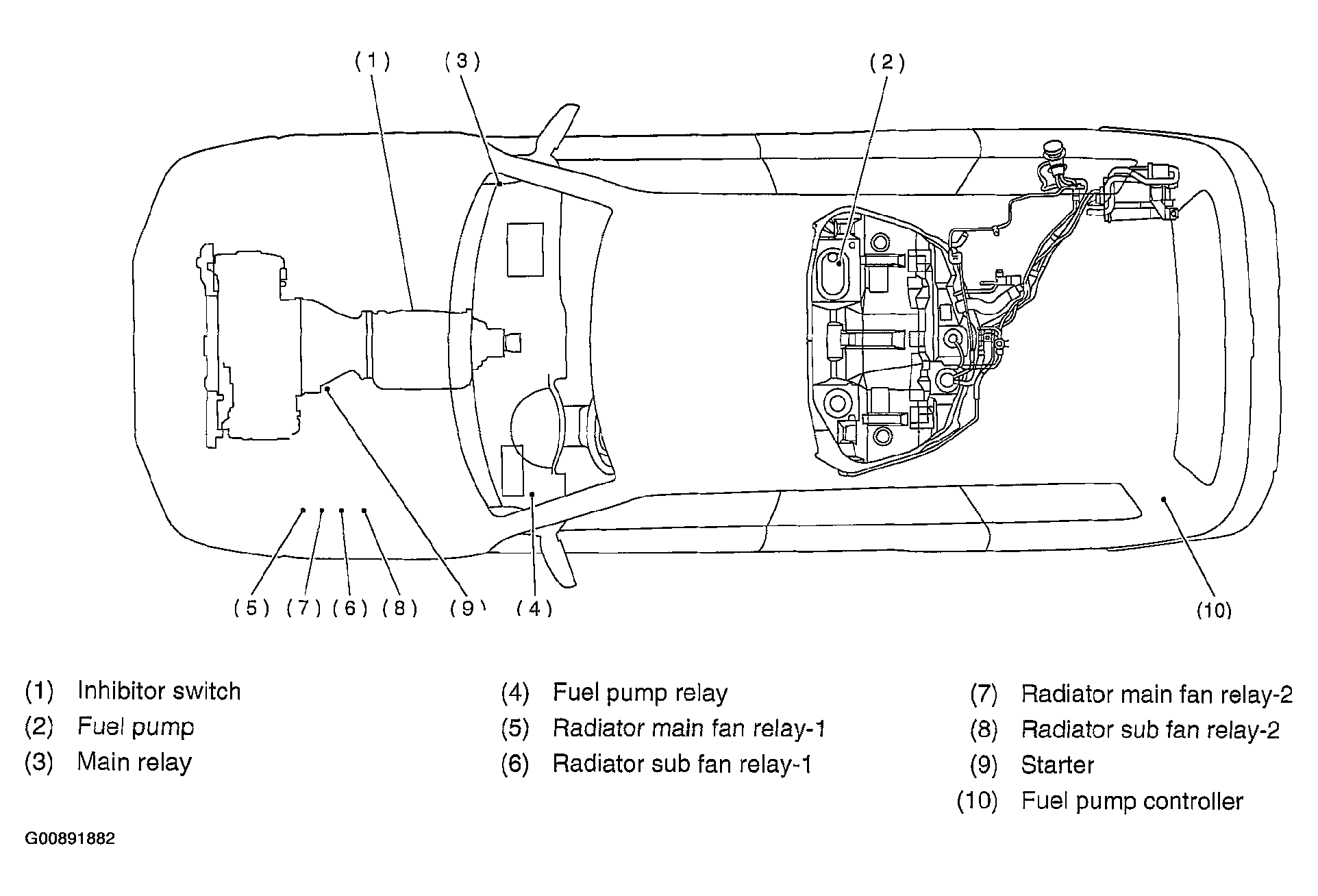

• MODULE

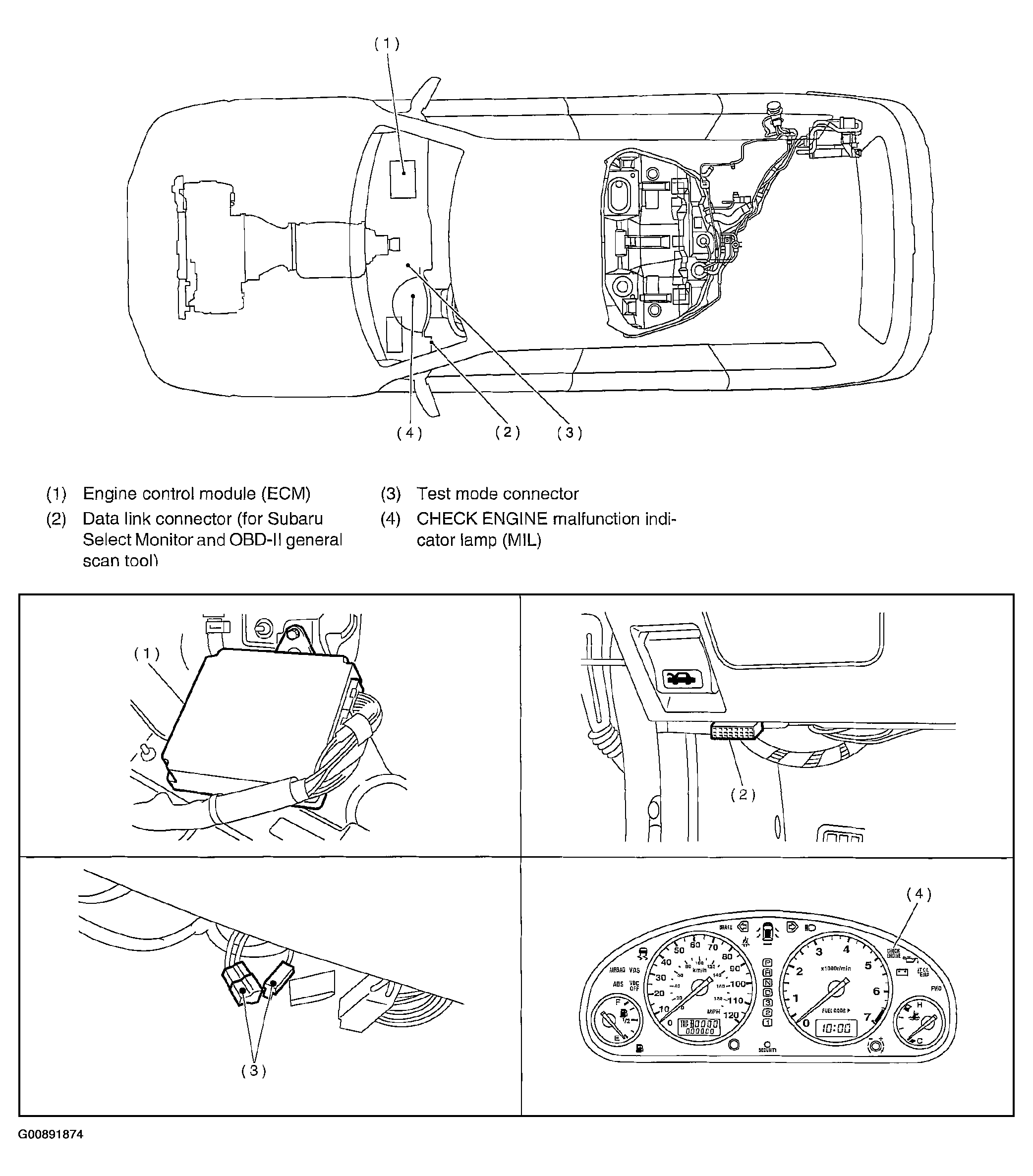

Fig 1: Identifying Engine Module (Electrical Components Location)

Courtesy of SUBARU OF AMERICA, INC.

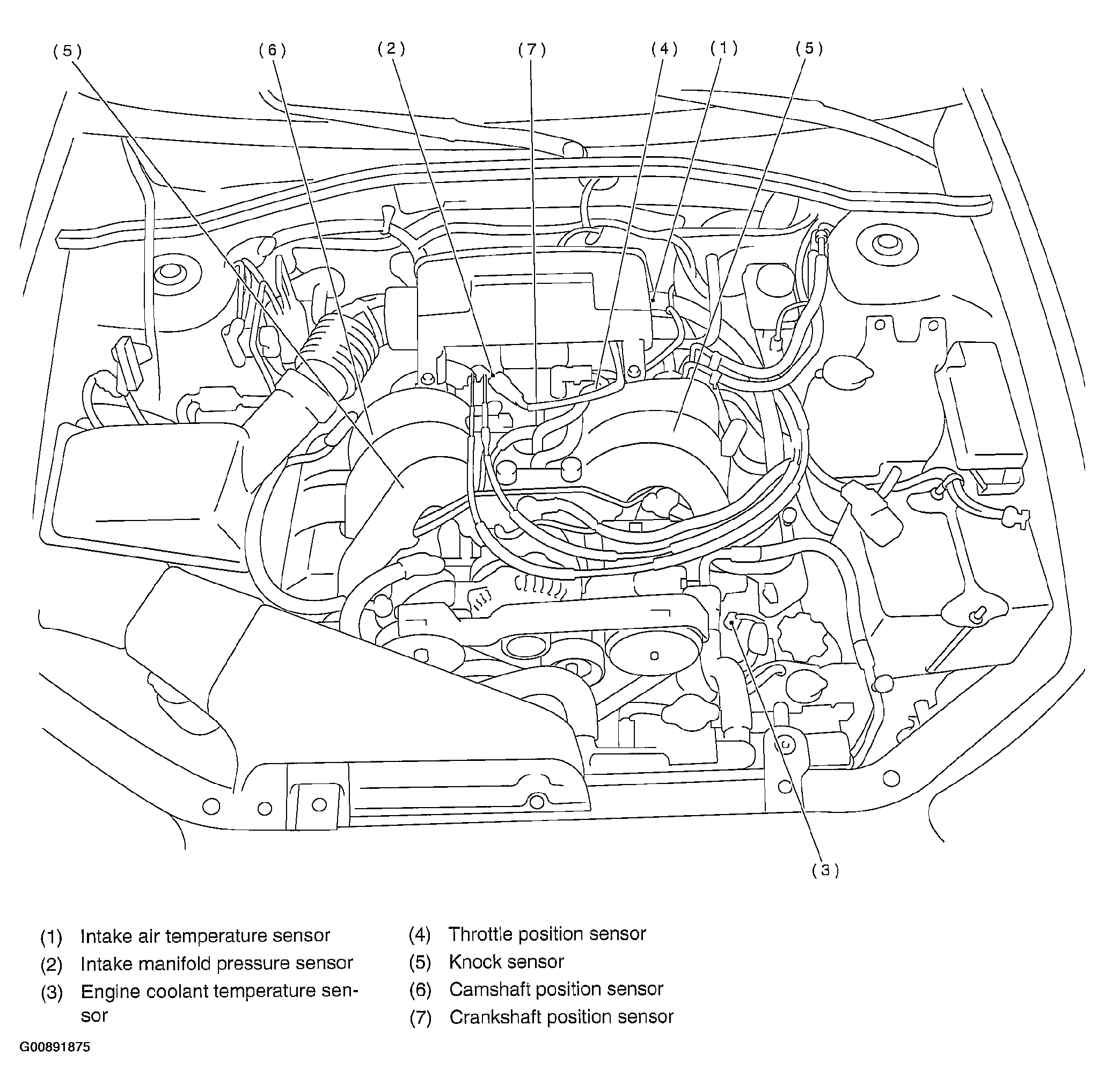

• SENSOR

Fig 2: Identifying Sensor (Electrical Components Location) (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

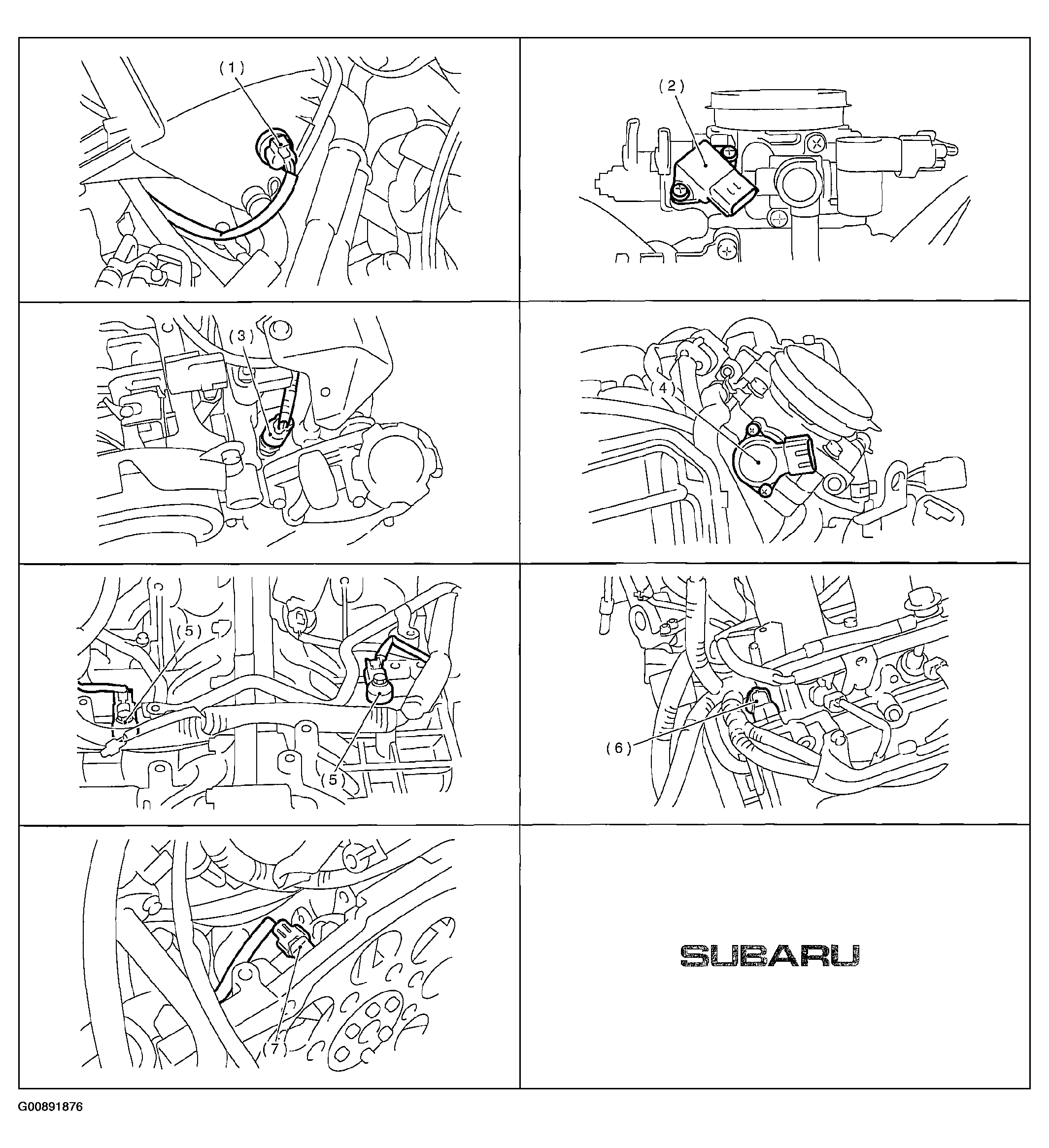

Fig 3: Identifying Sensor (Electrical Components Location) (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

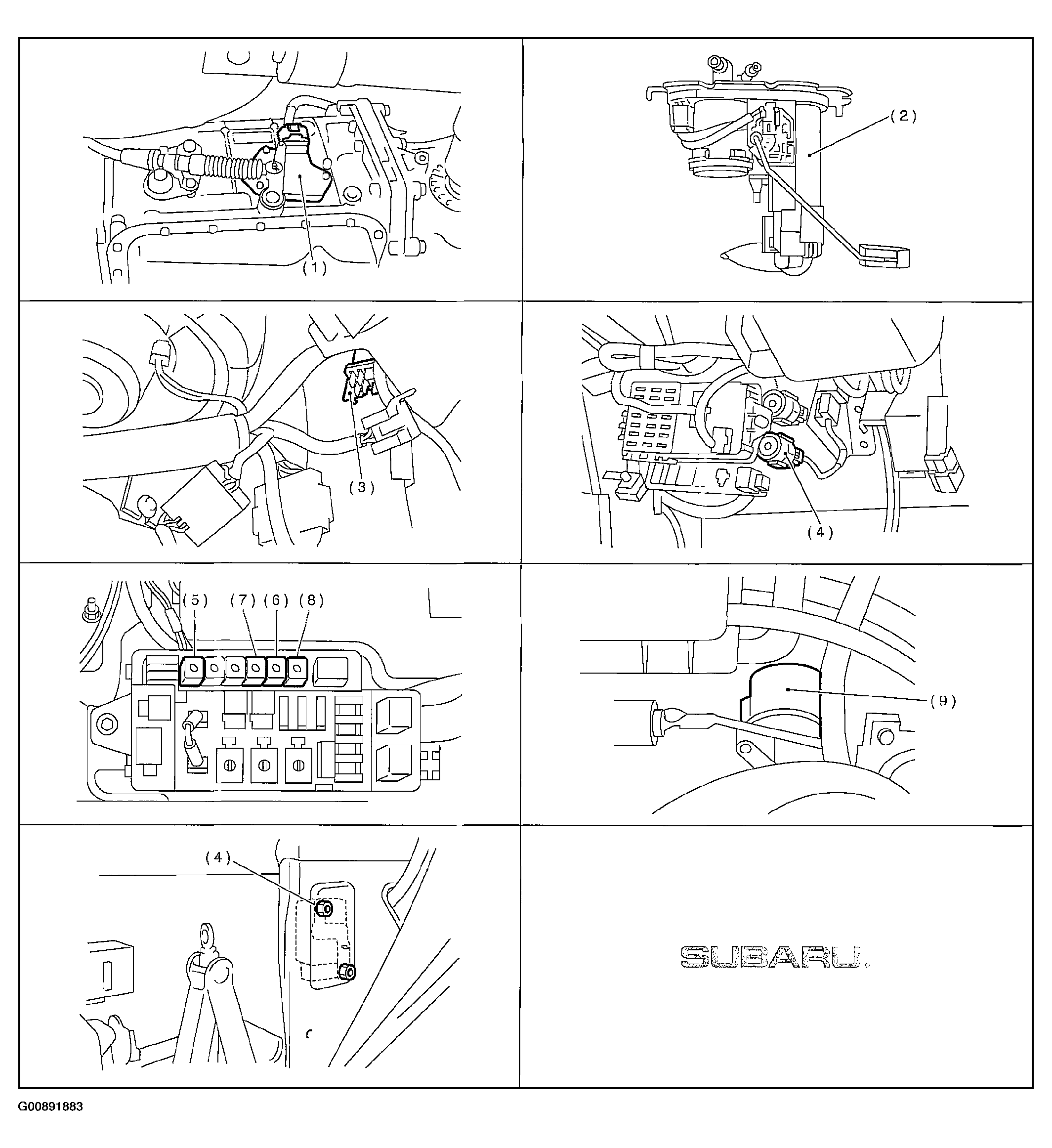

Fig 4: Identifying Sensor (Electrical Components Location) (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensor (Electrical Components Location) (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

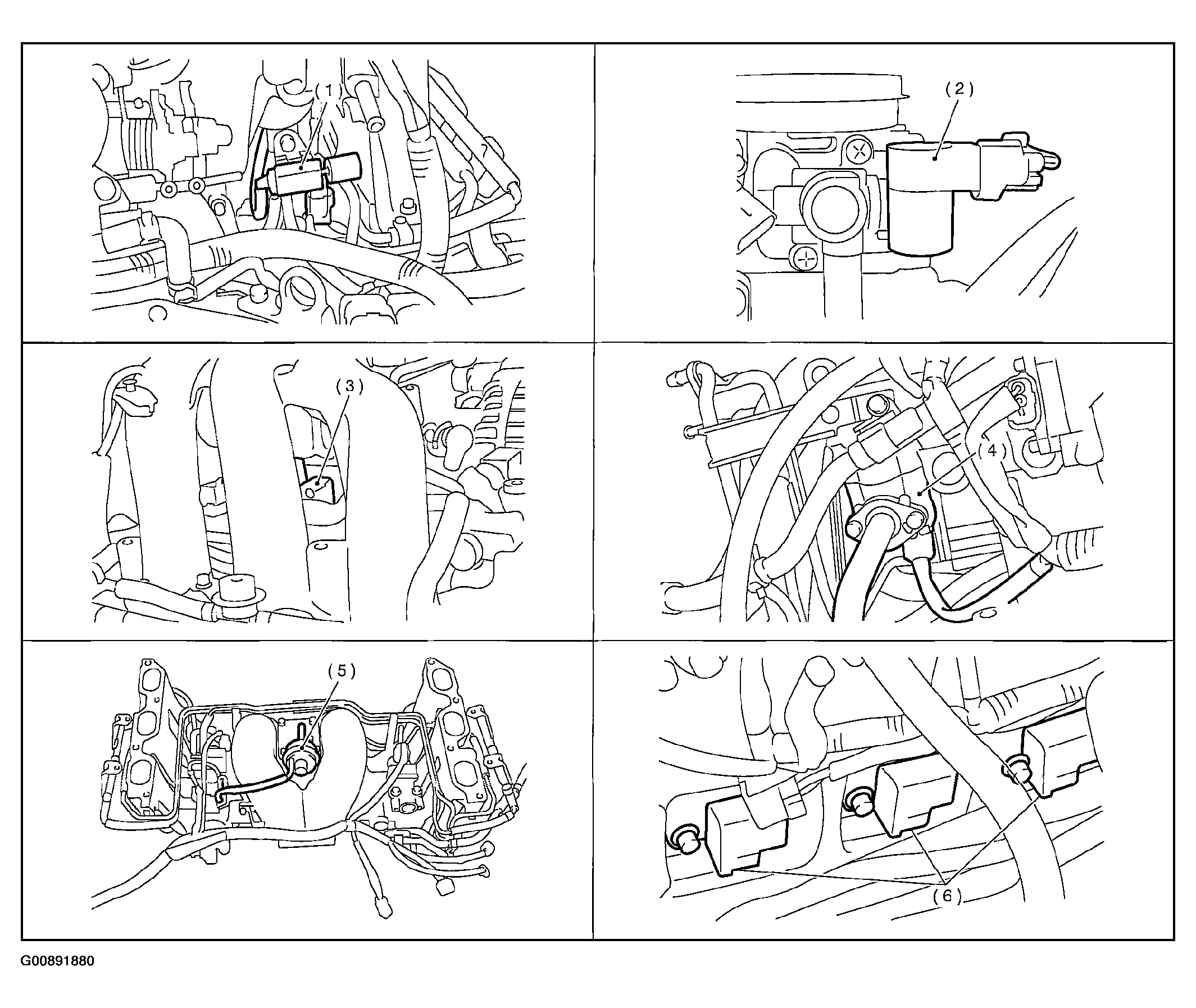

• SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

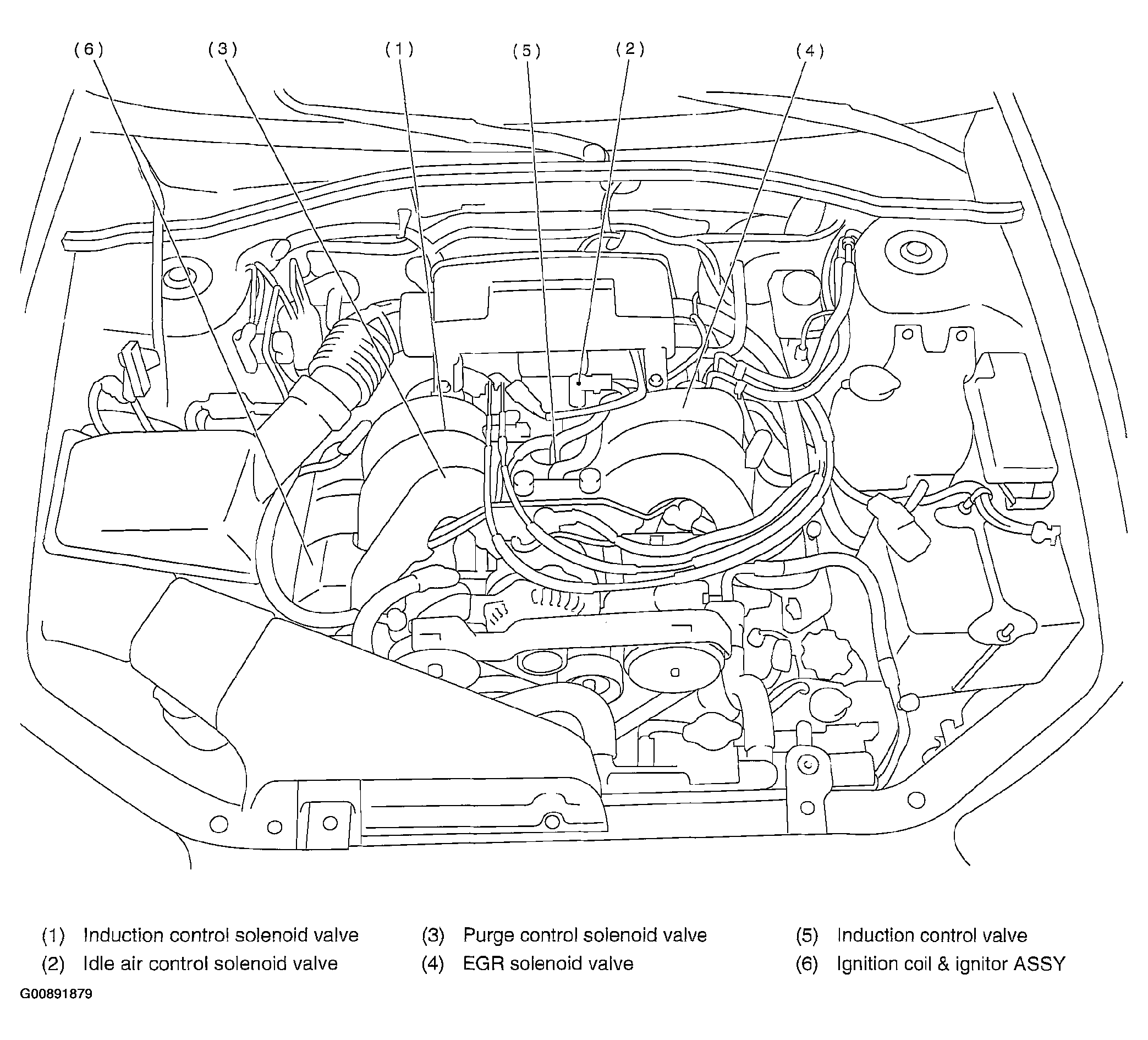

Fig 6: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

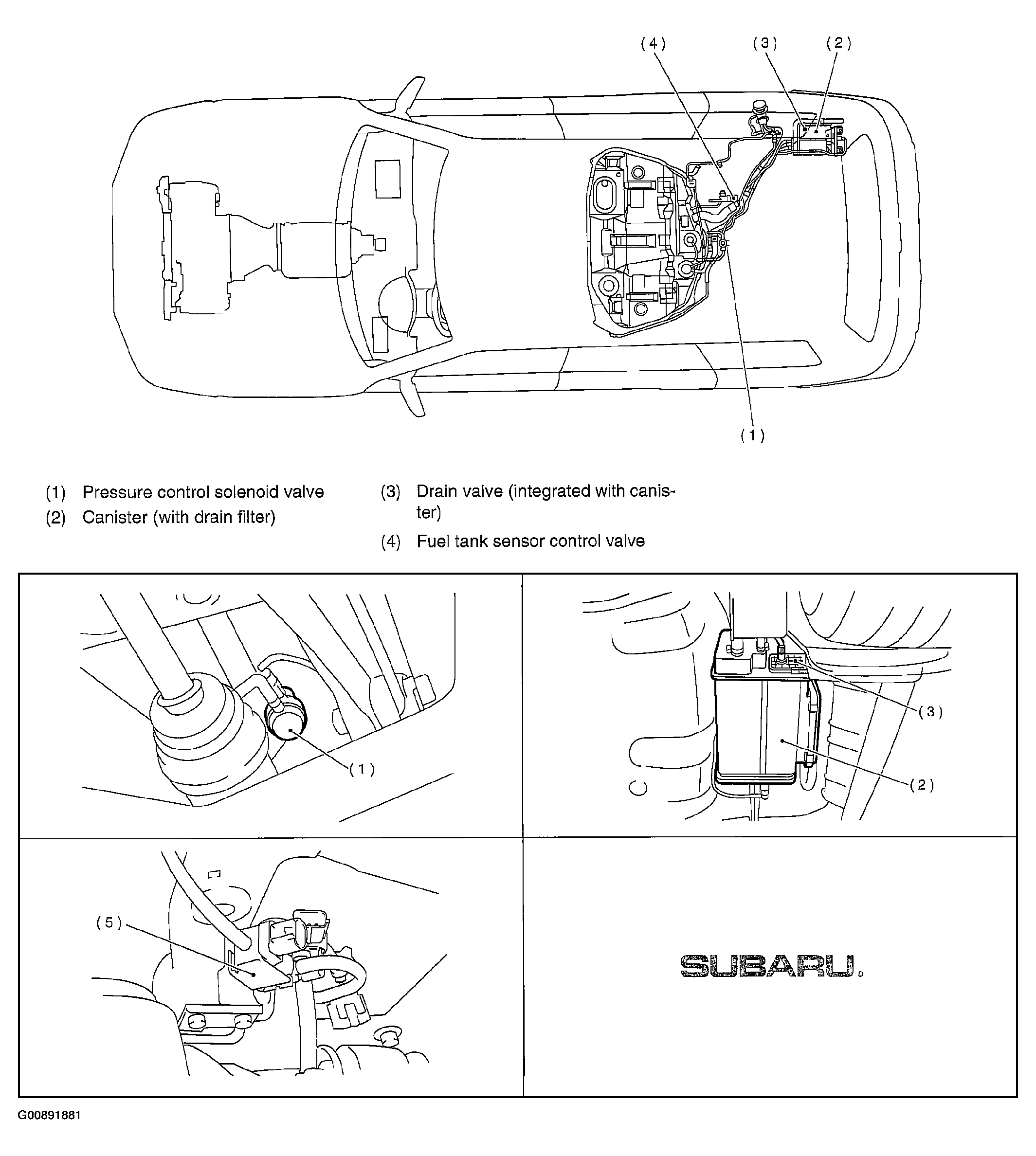

Fig 8: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

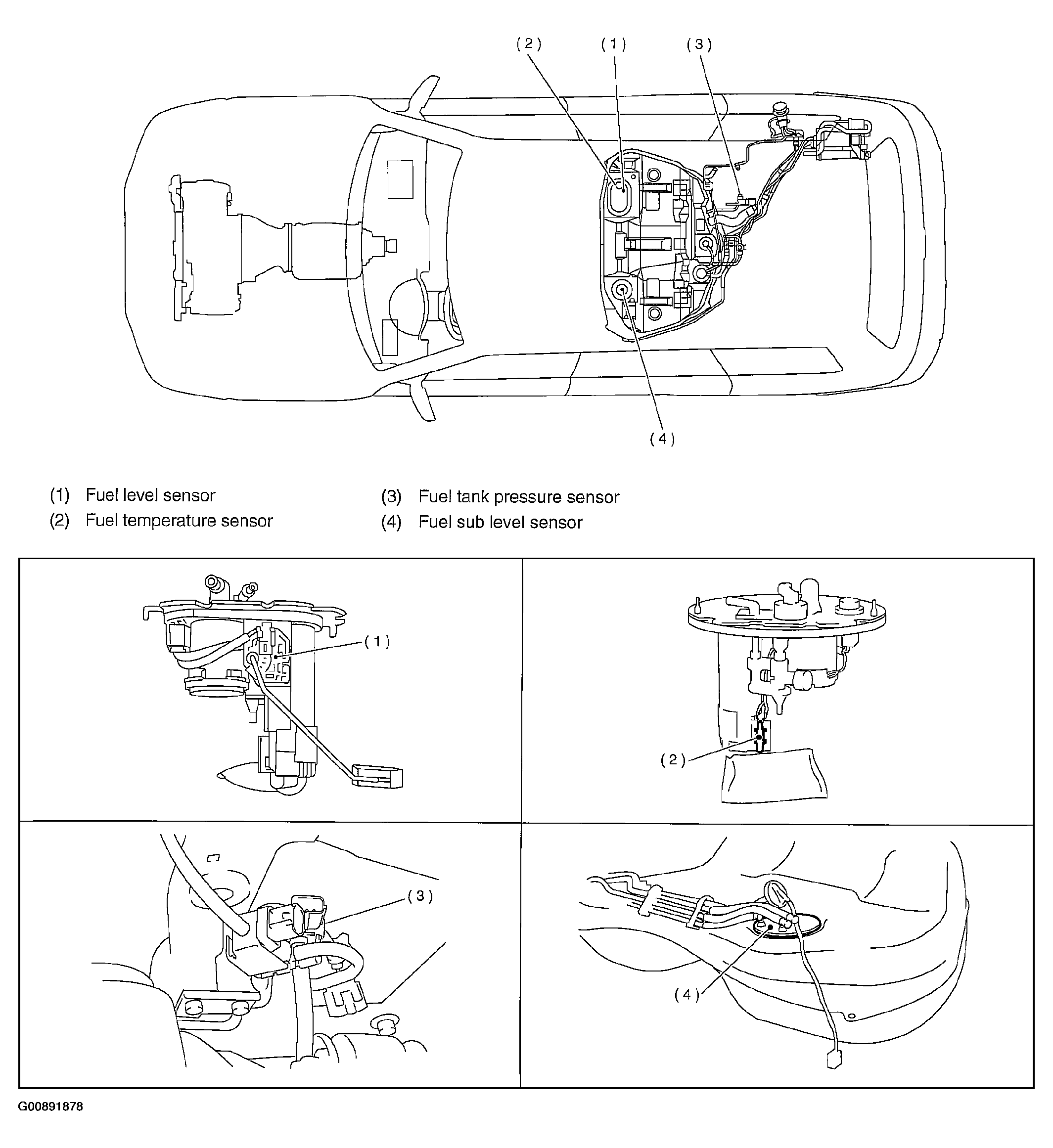

Fig 9: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

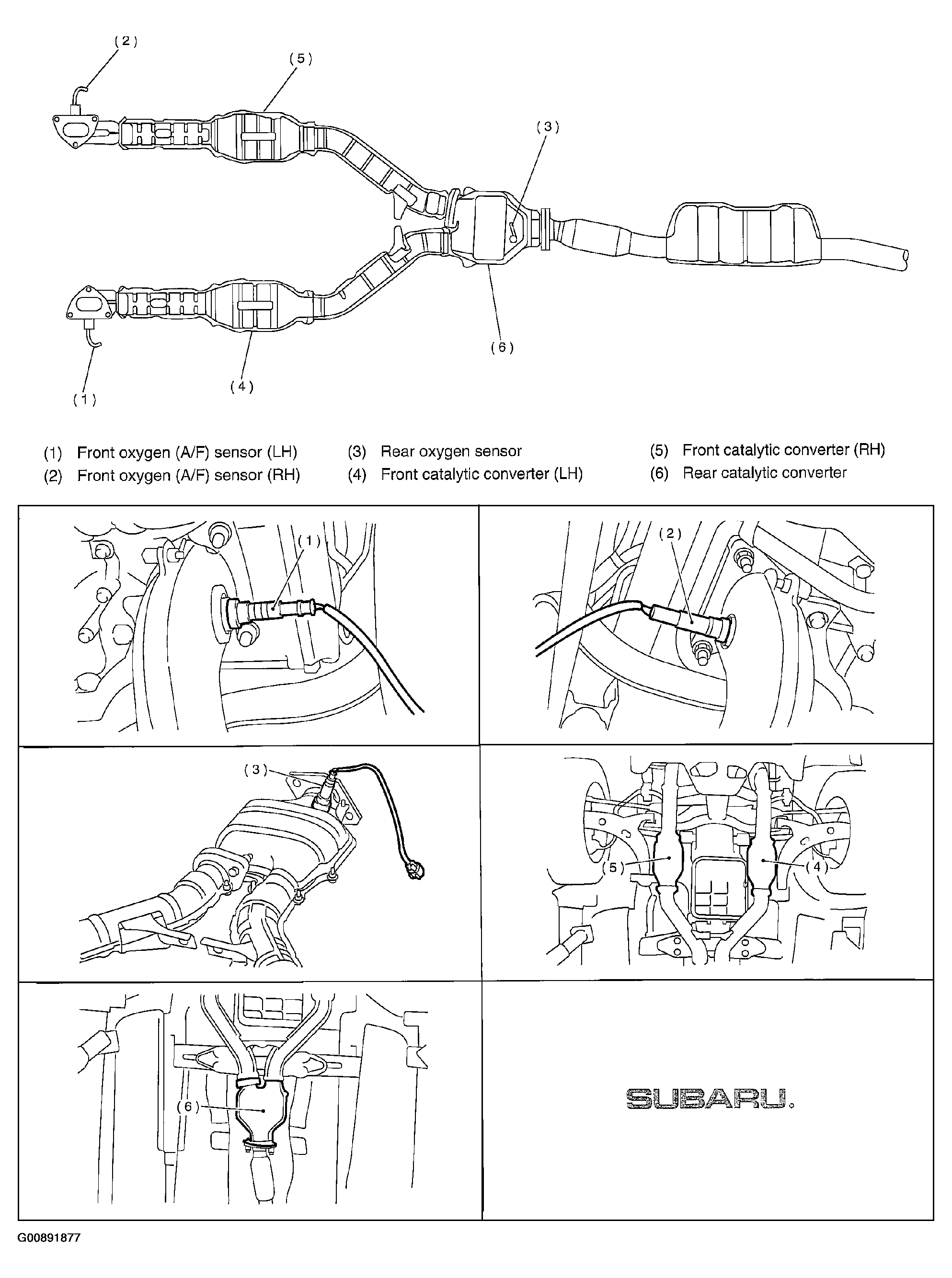

Fig 10: Identifying Solenoid Valve, Emission Control System Parts & Ignition System Parts (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
