Control Module Pinout Values - With ABS

Control Module I/O Signal

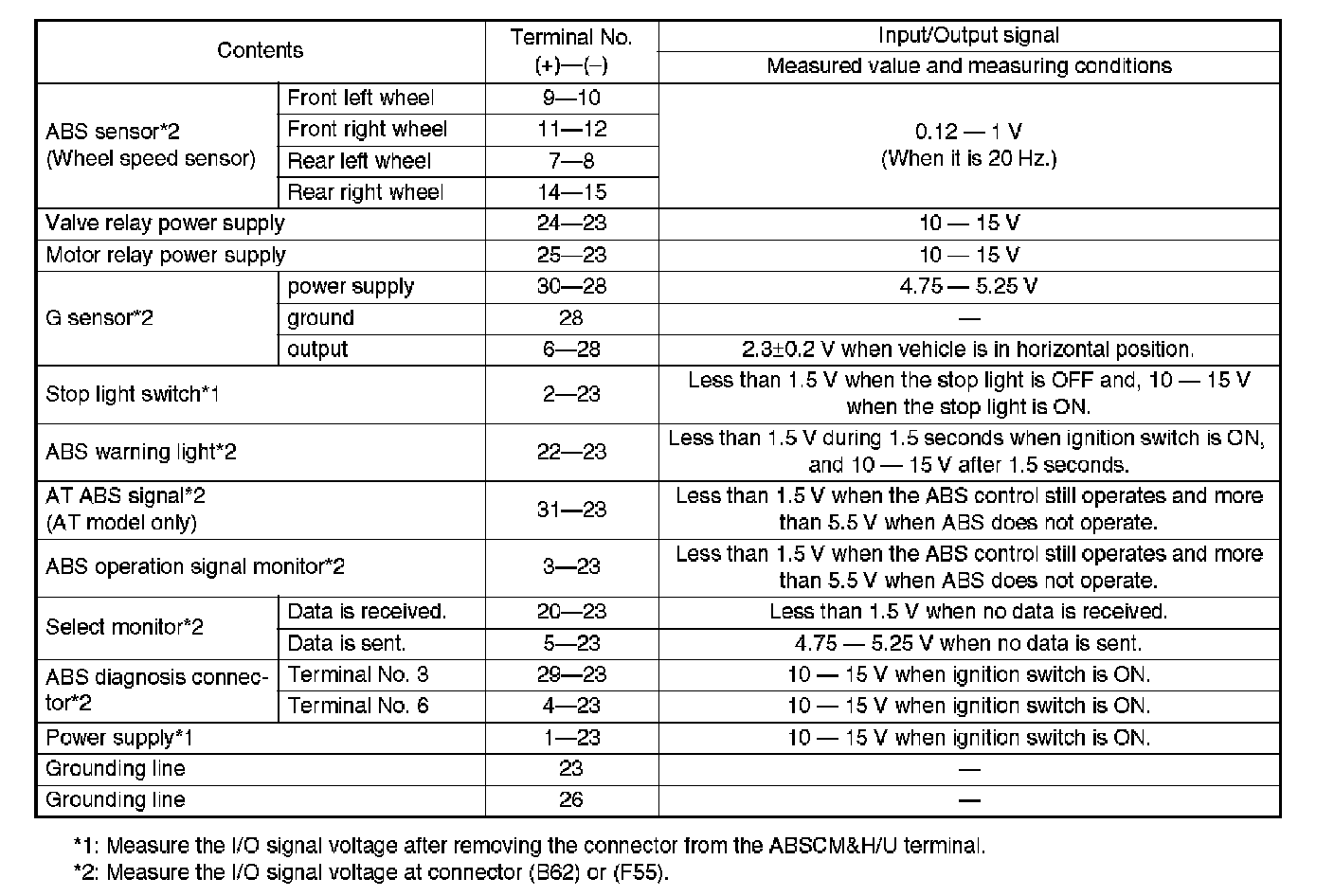

ELECTRICAL SPECIFICATION

NOTE:
^ The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
^ When the connector is removed from the ABSCM&H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.

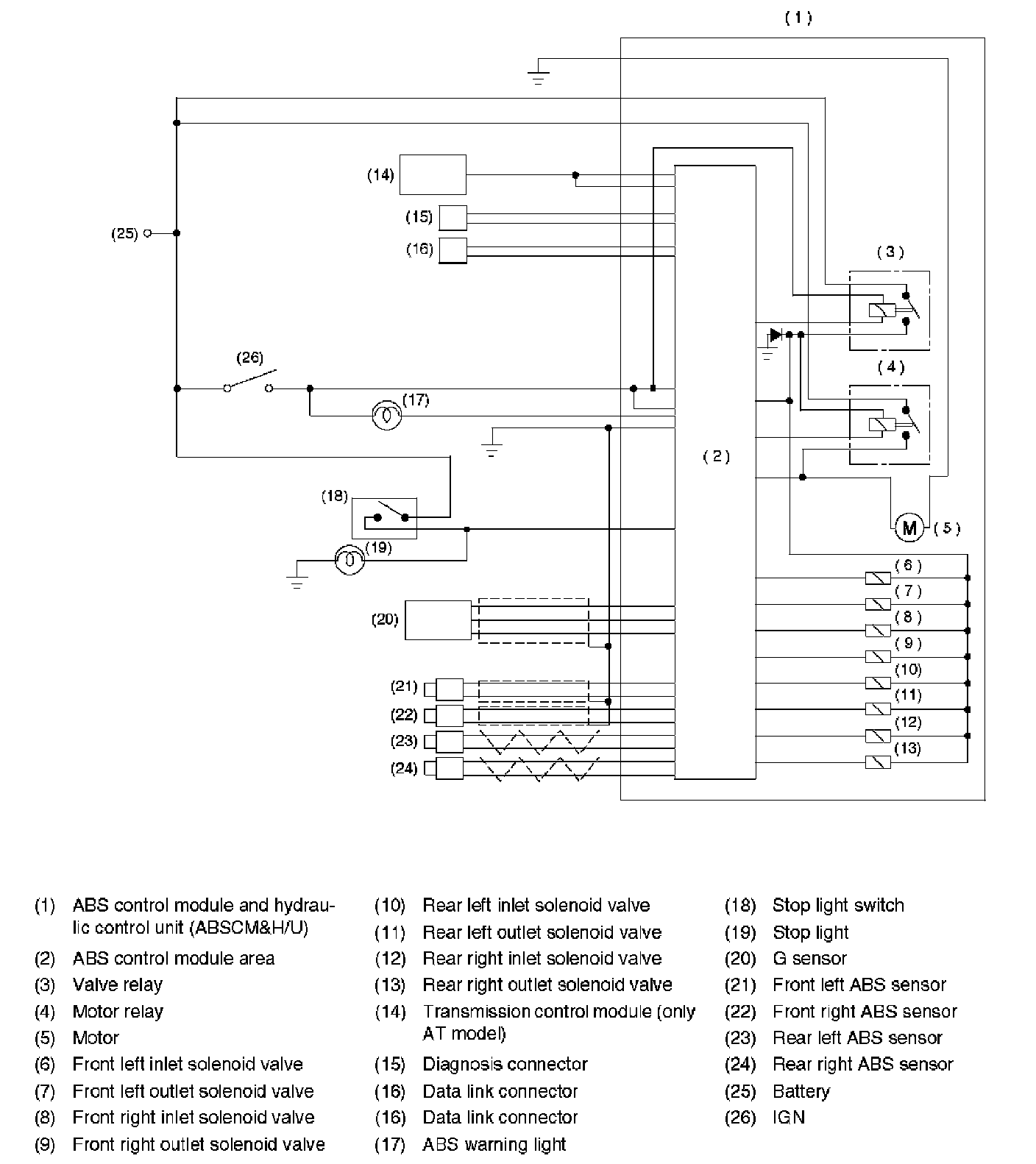

SCHEMATIC





WAVEFORM
