Select Lever Shift Lock Cannot Be Released

SELECT LEVER SHIFT LOCK CANNOT BE RELEASED

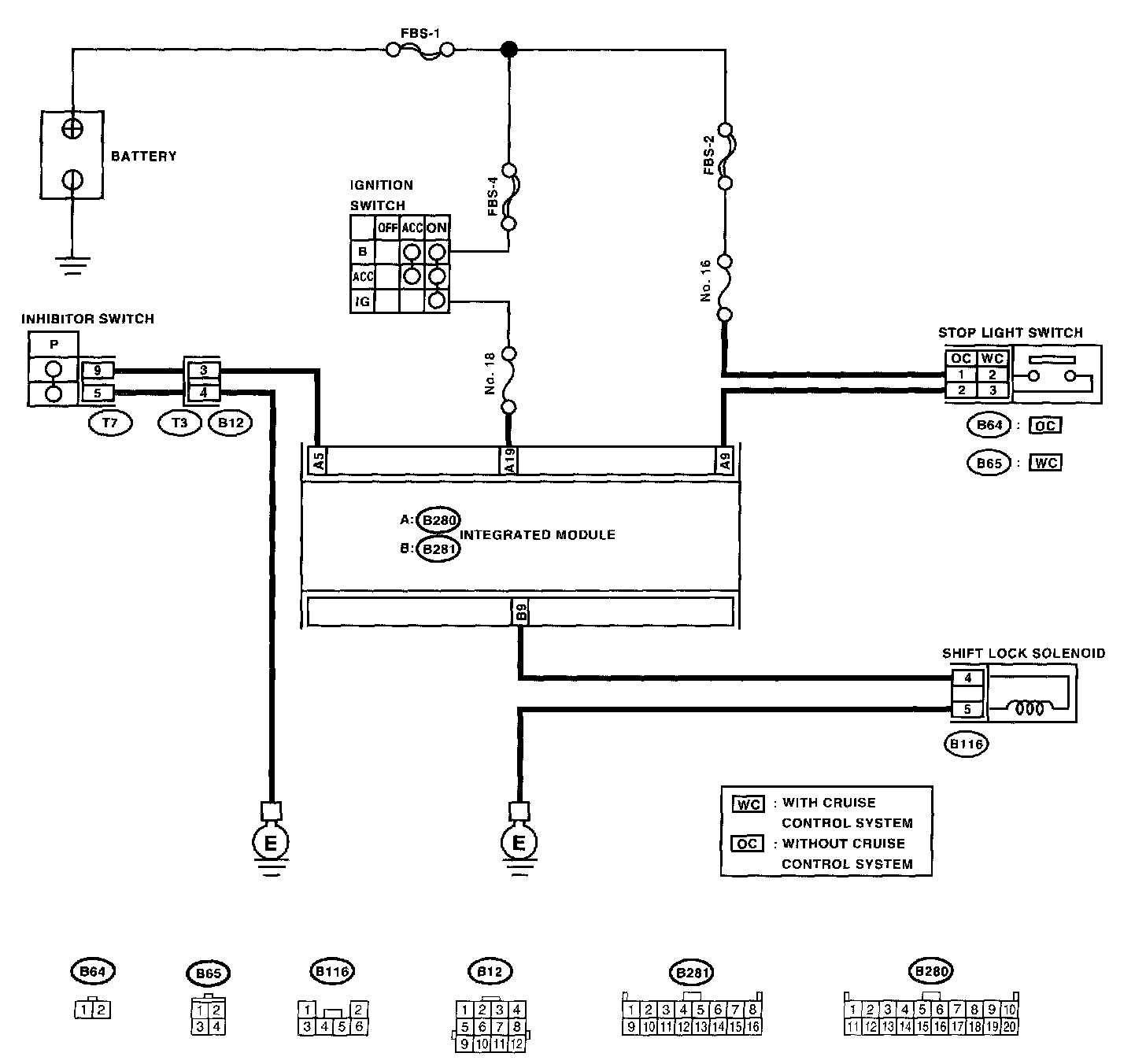

WIRING DIAGRAM:

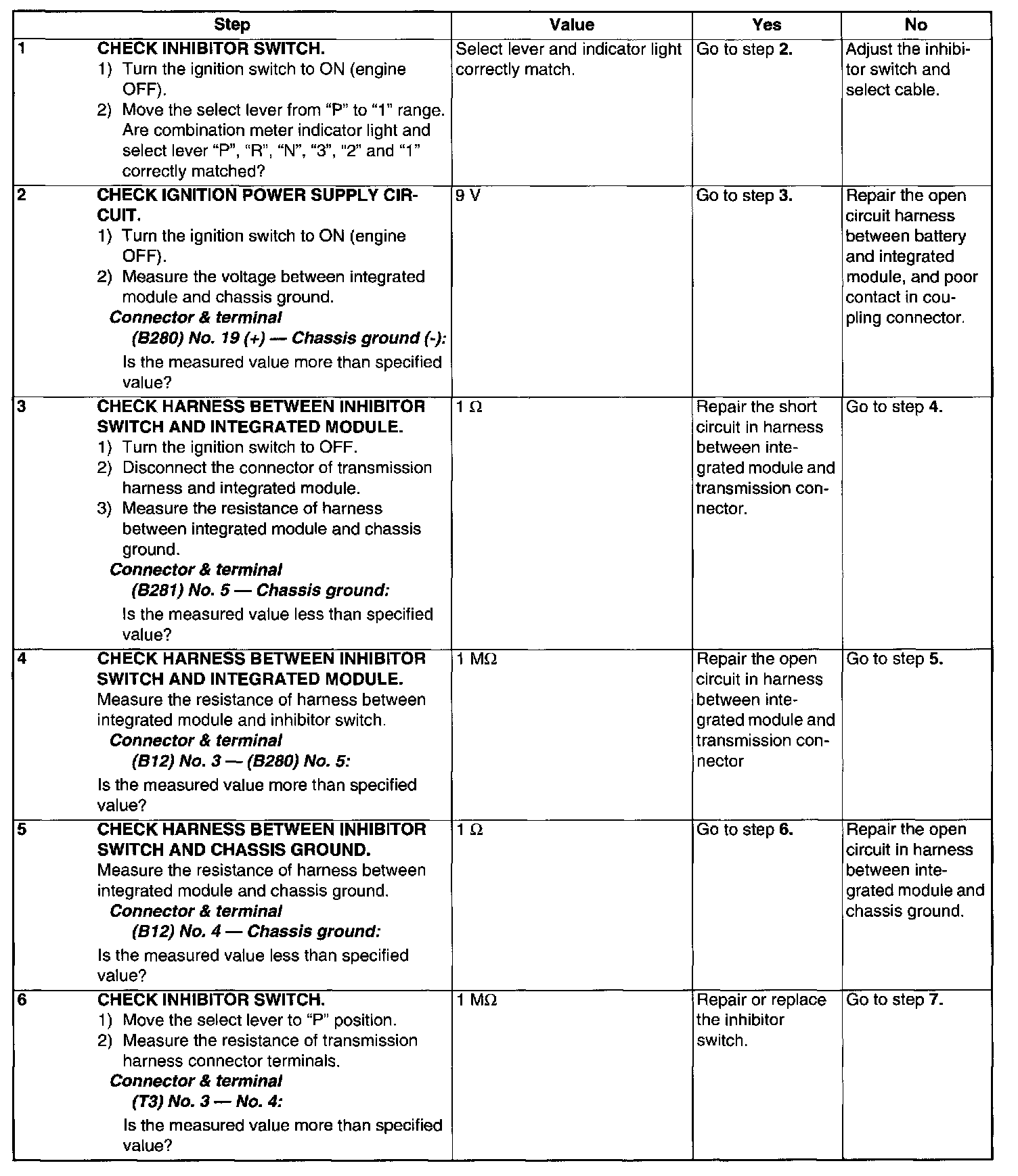

Test 1 Of 3:

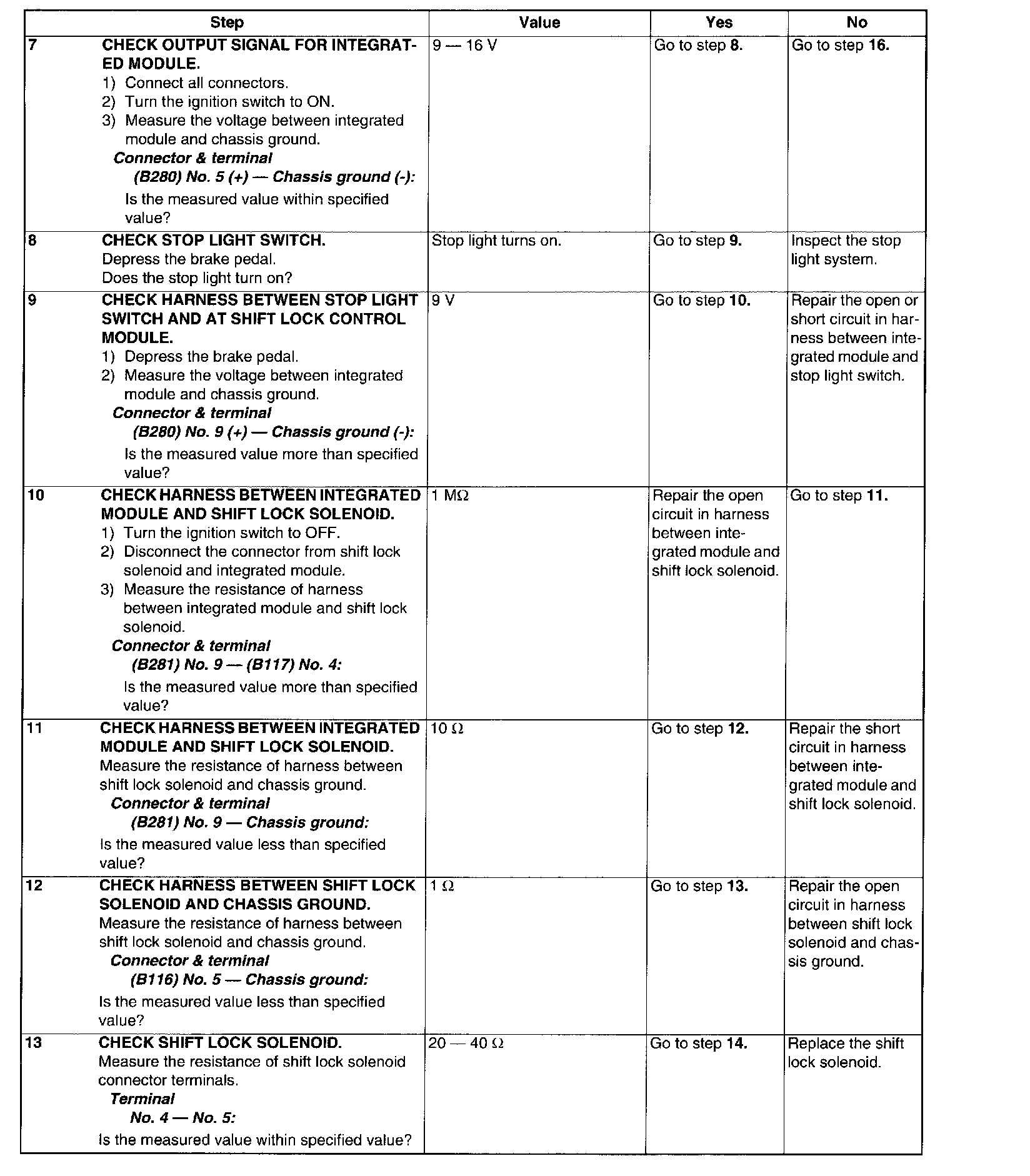

Test 2 Of 3:

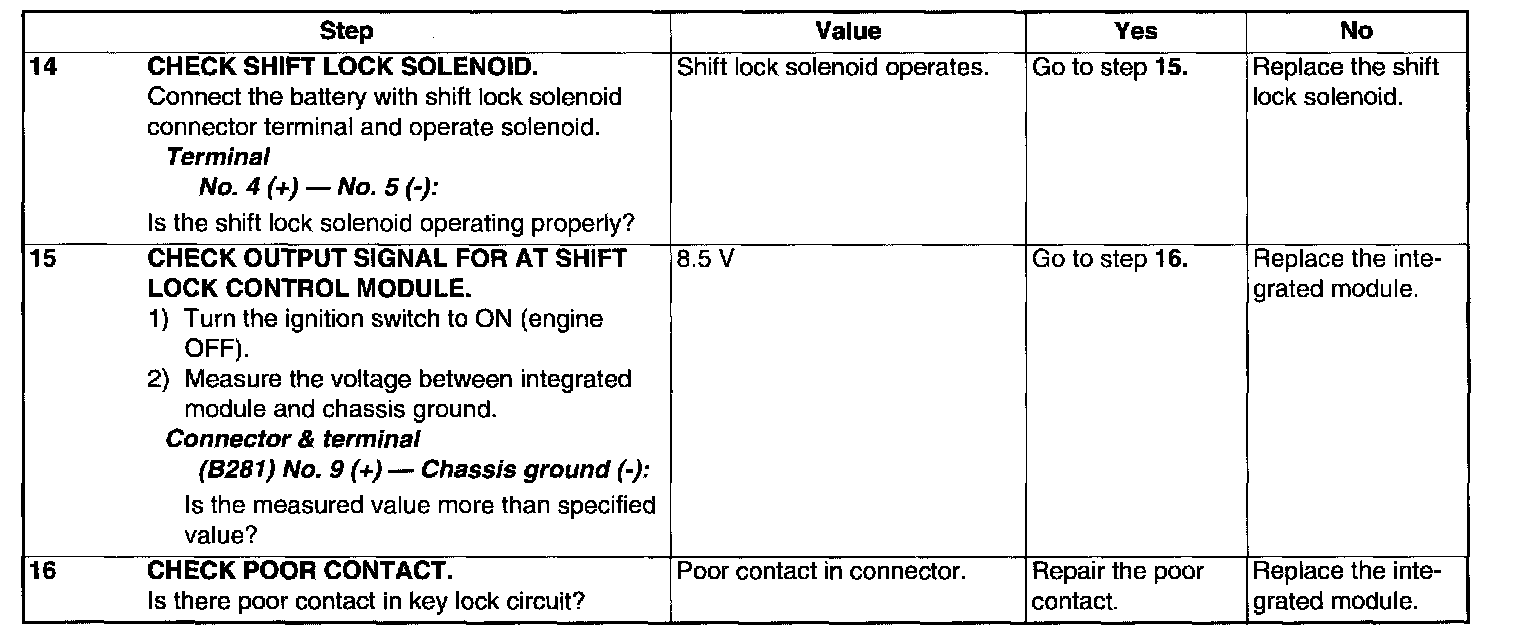

Test 3 Of 3:
