Differential Assembly: Tools and Equipment

PREPARATION TOOL

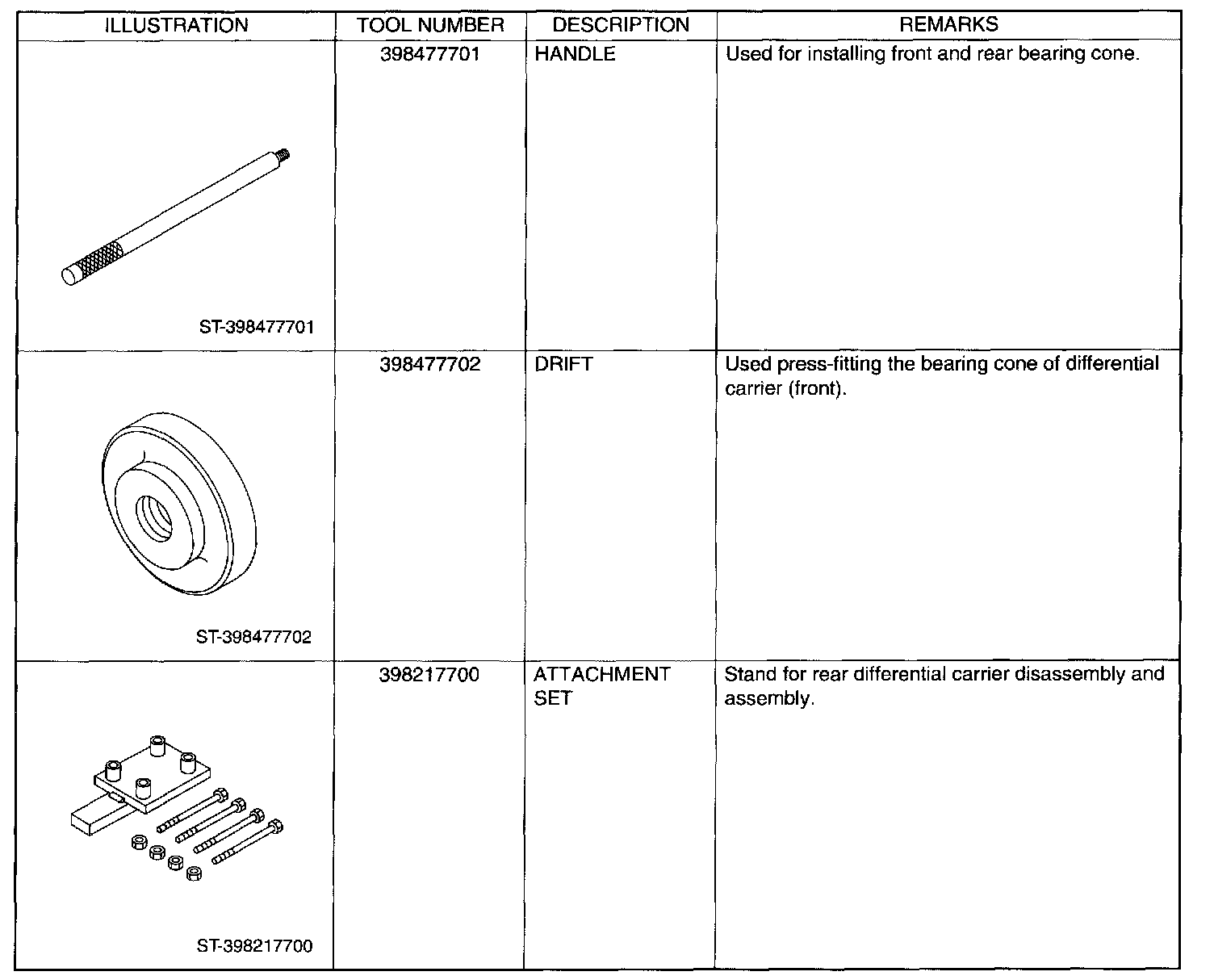

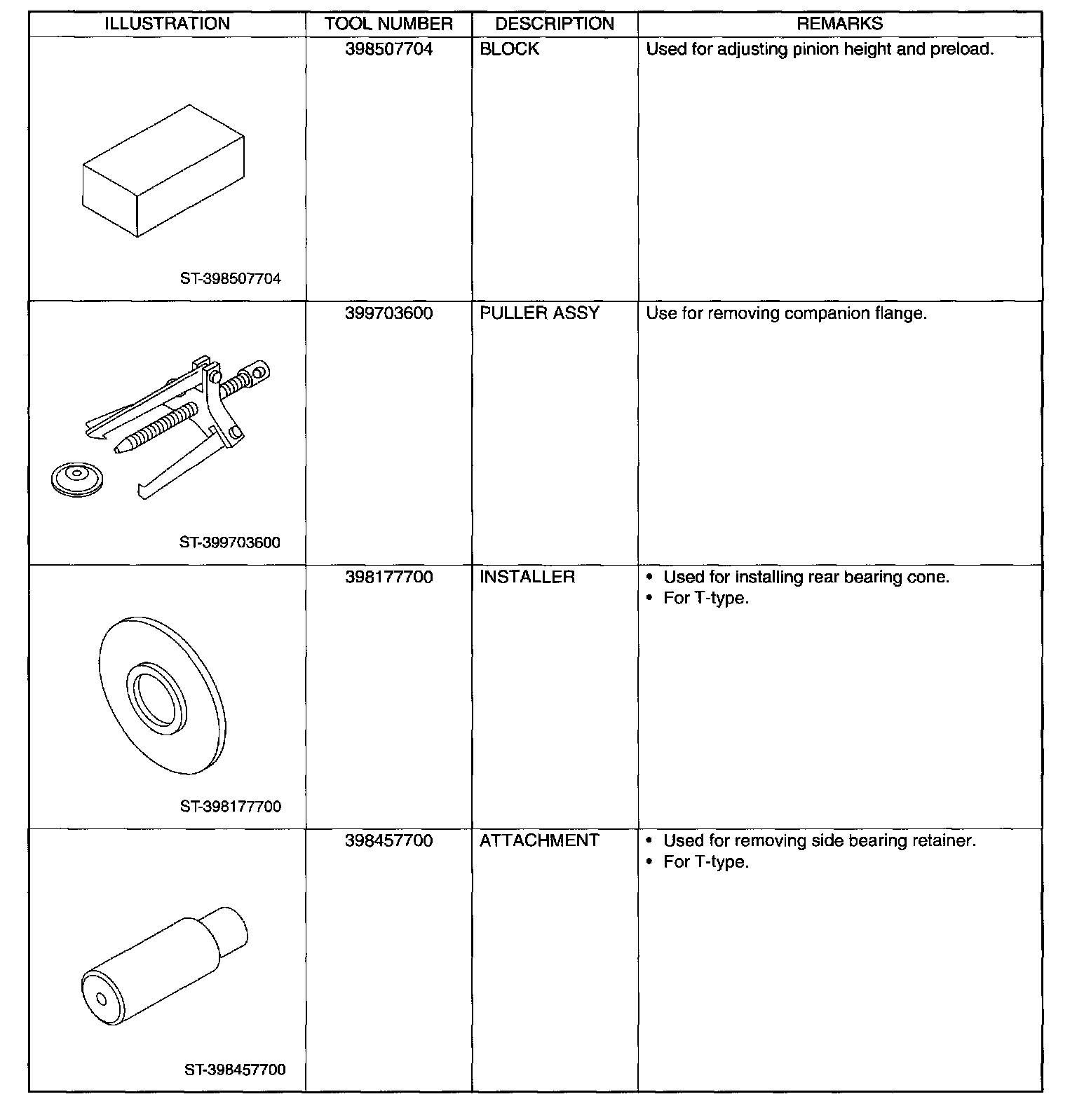

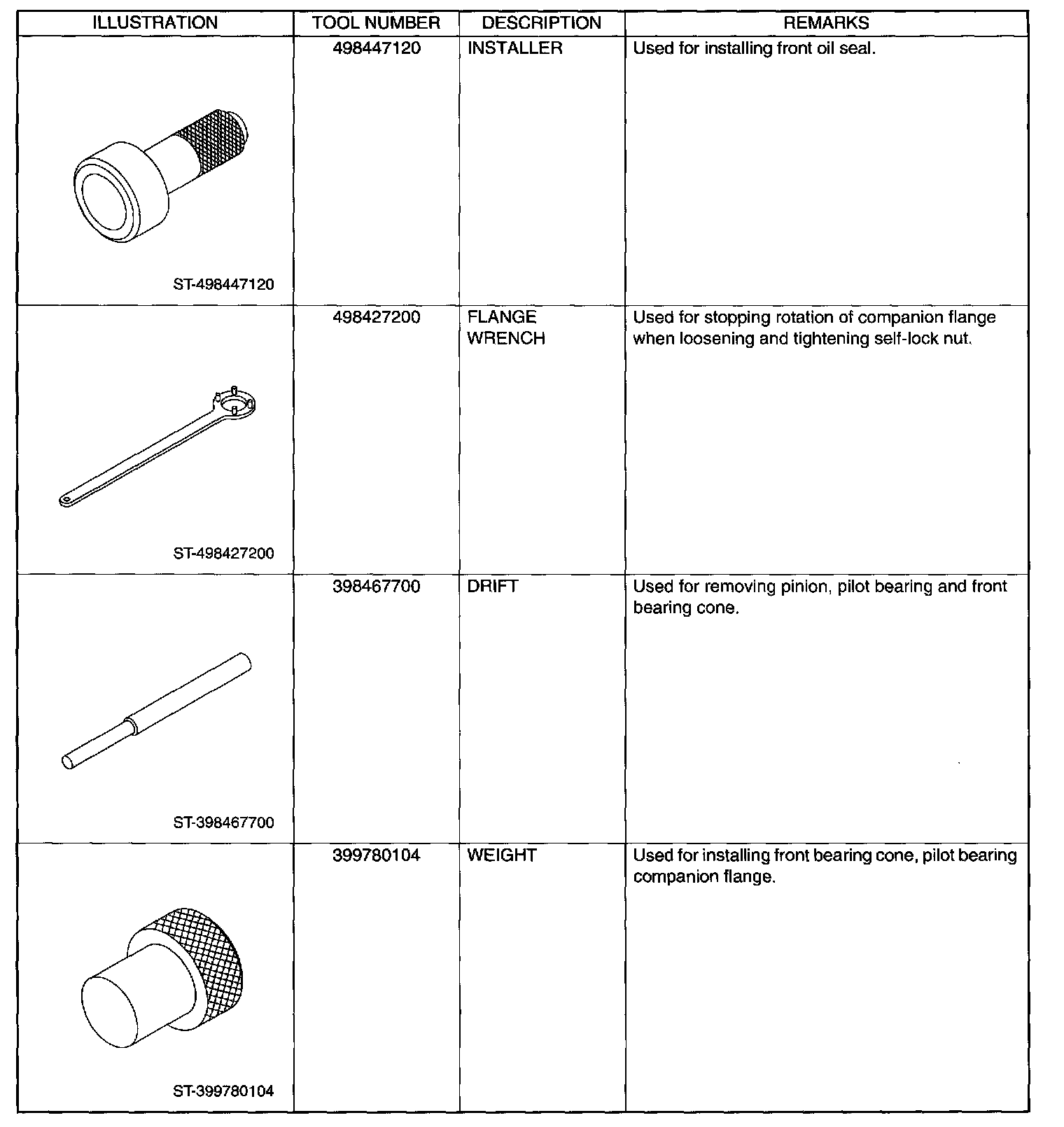

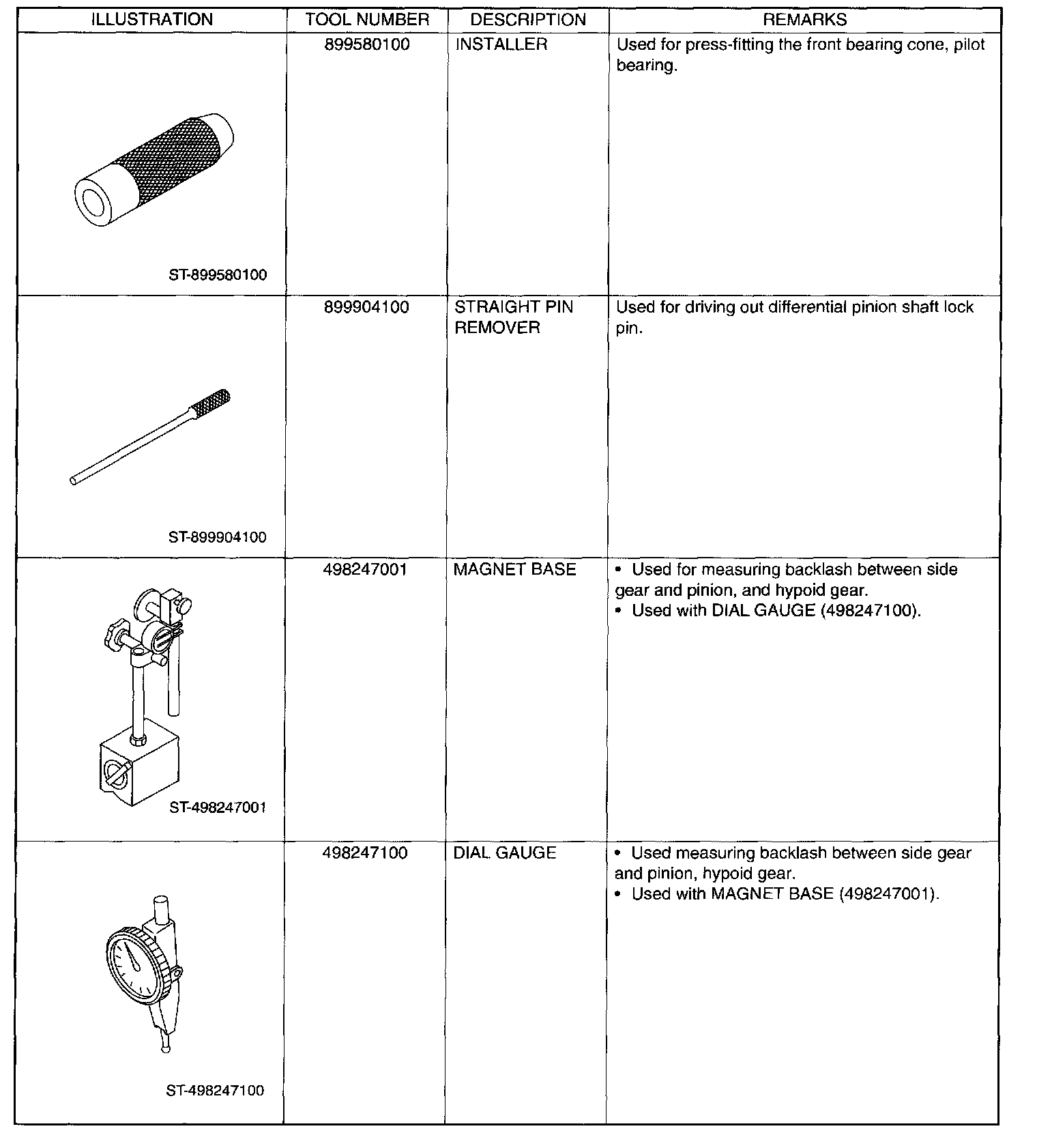

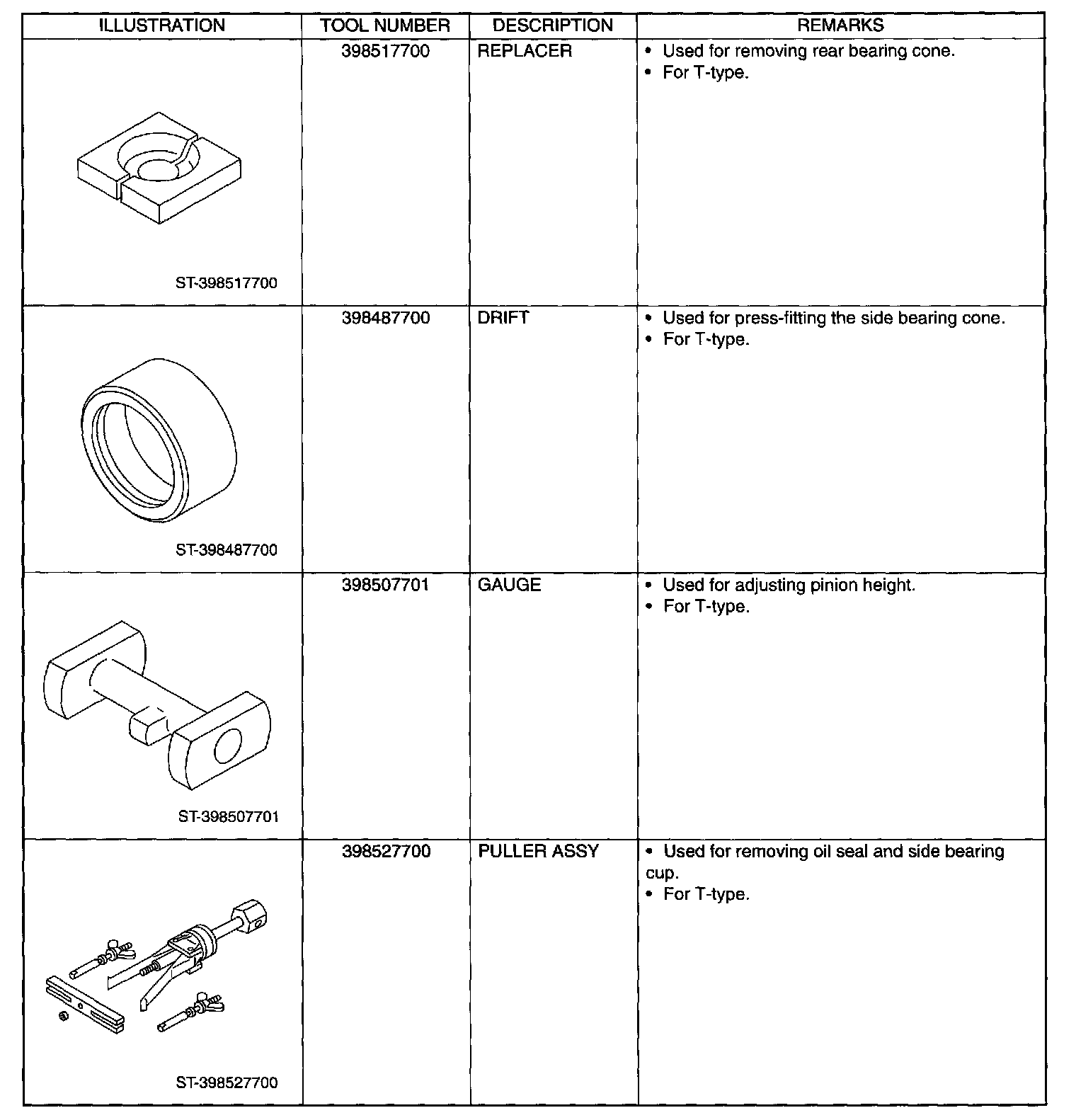

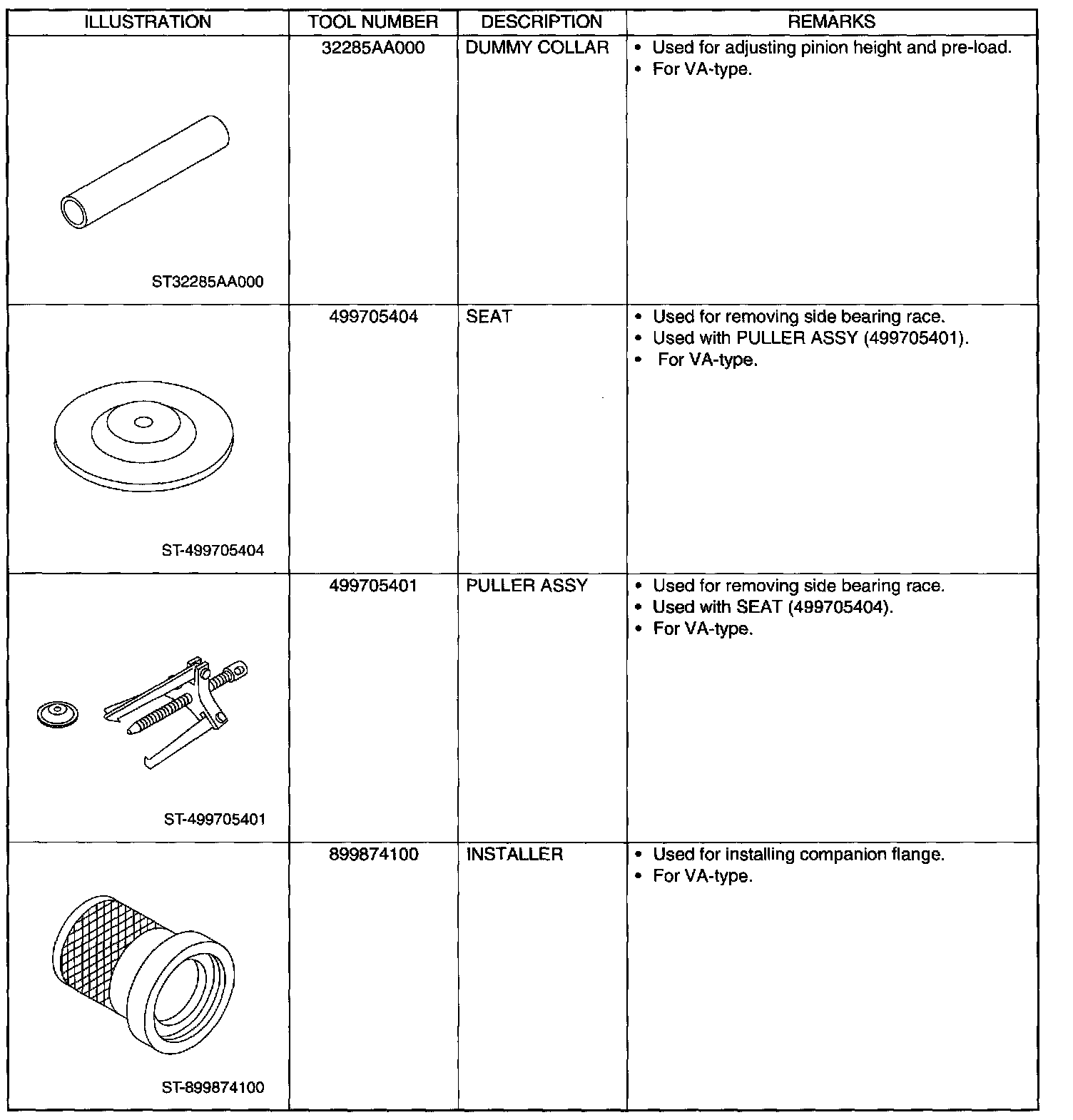

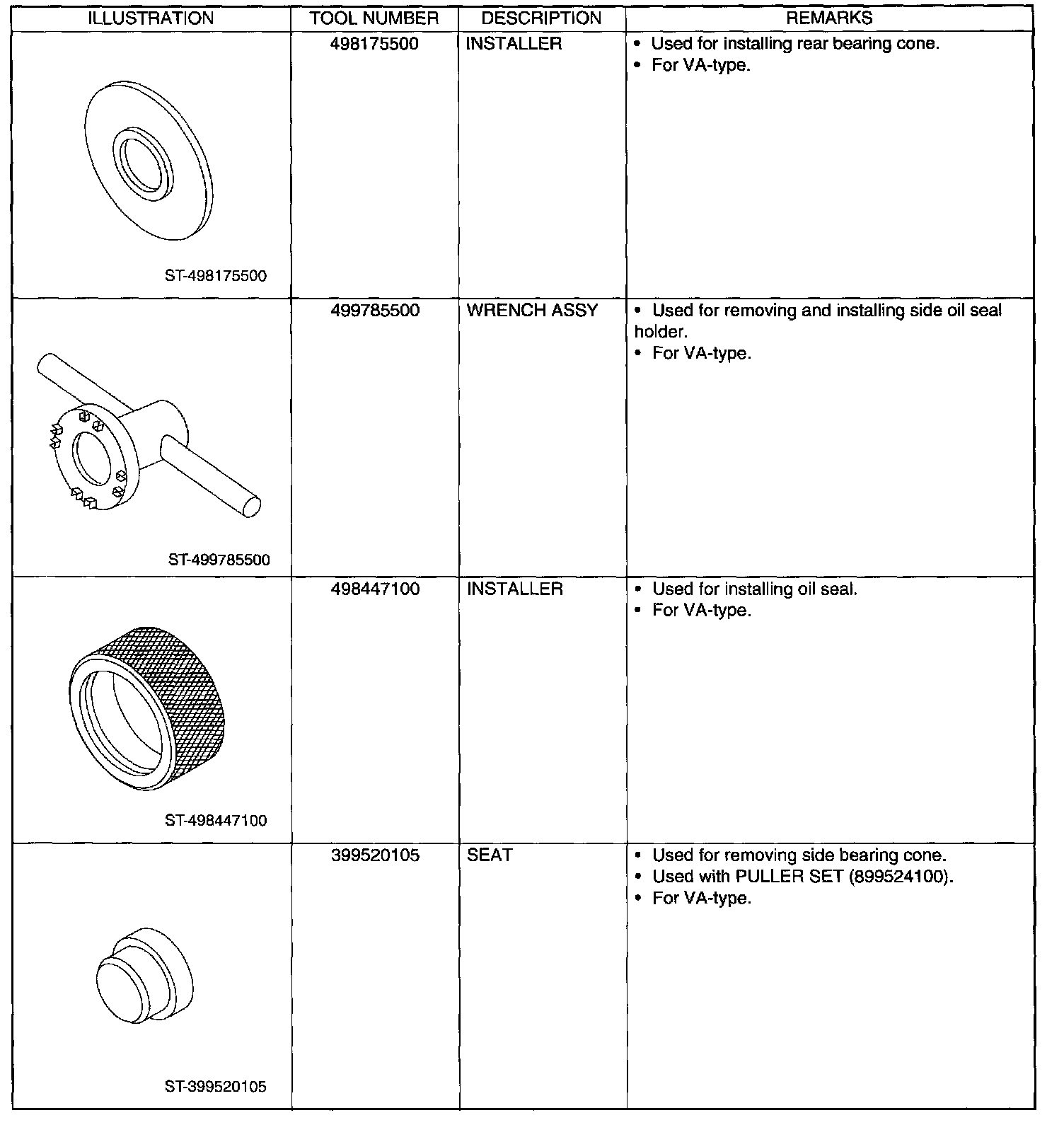

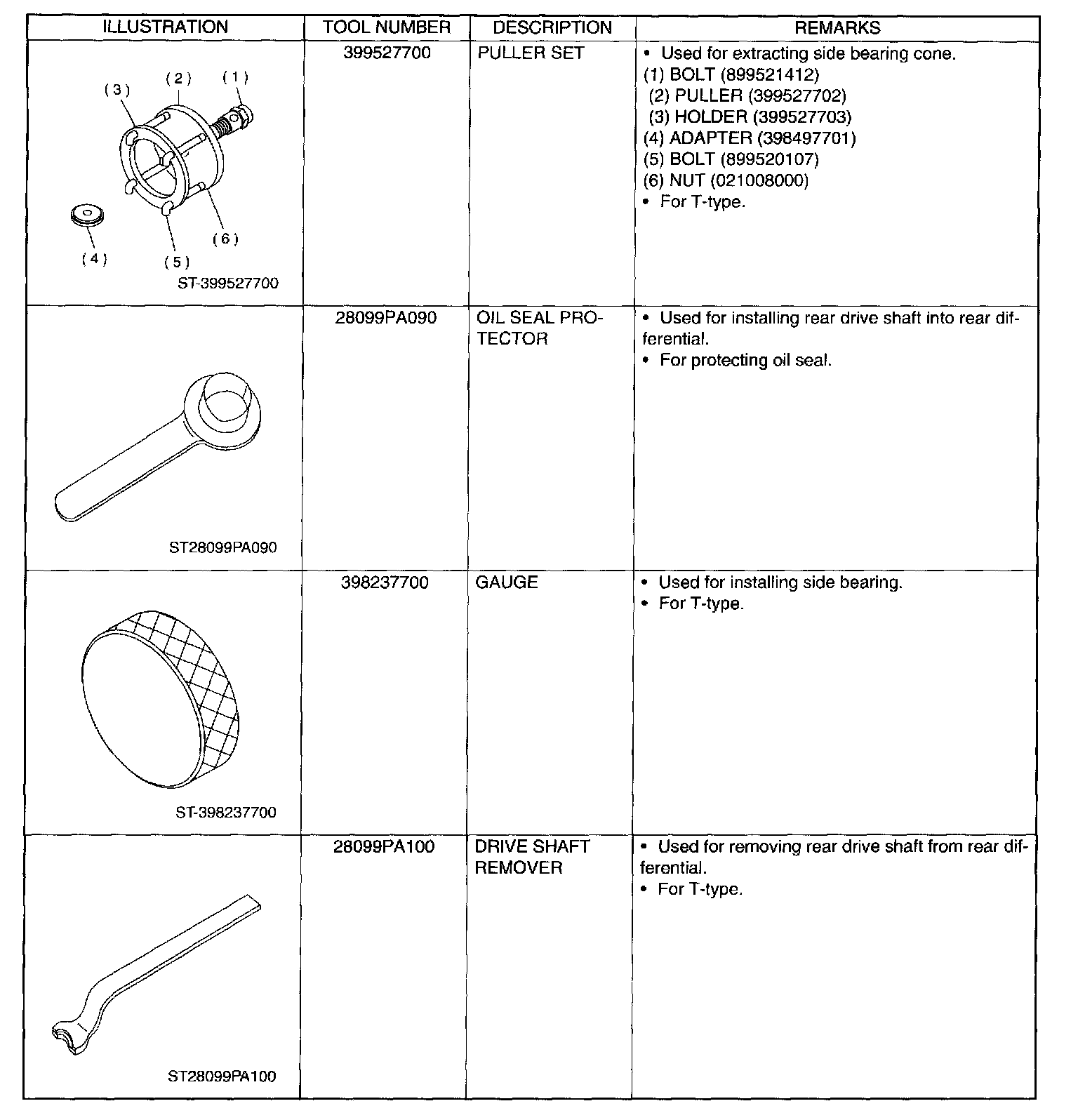

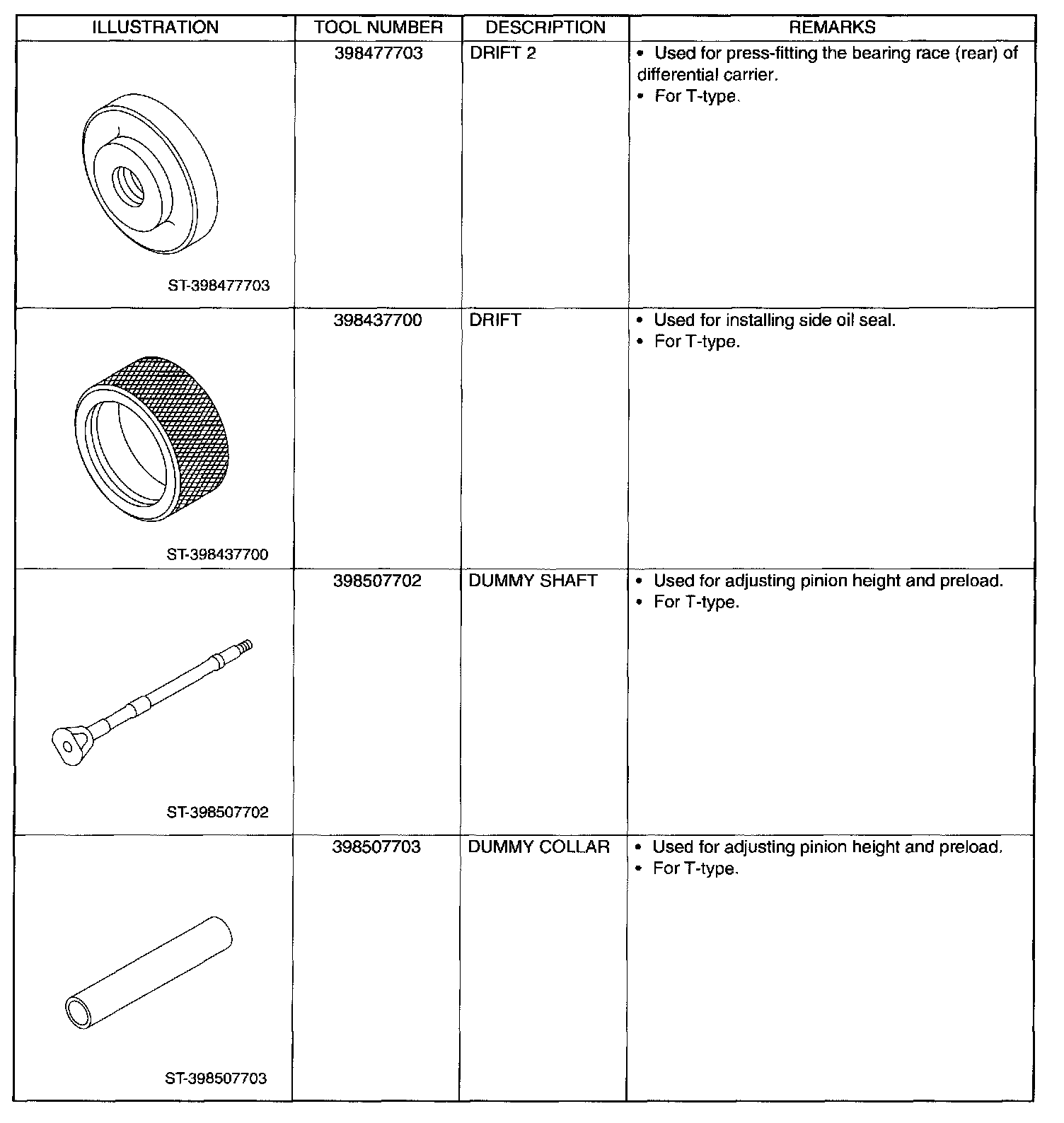

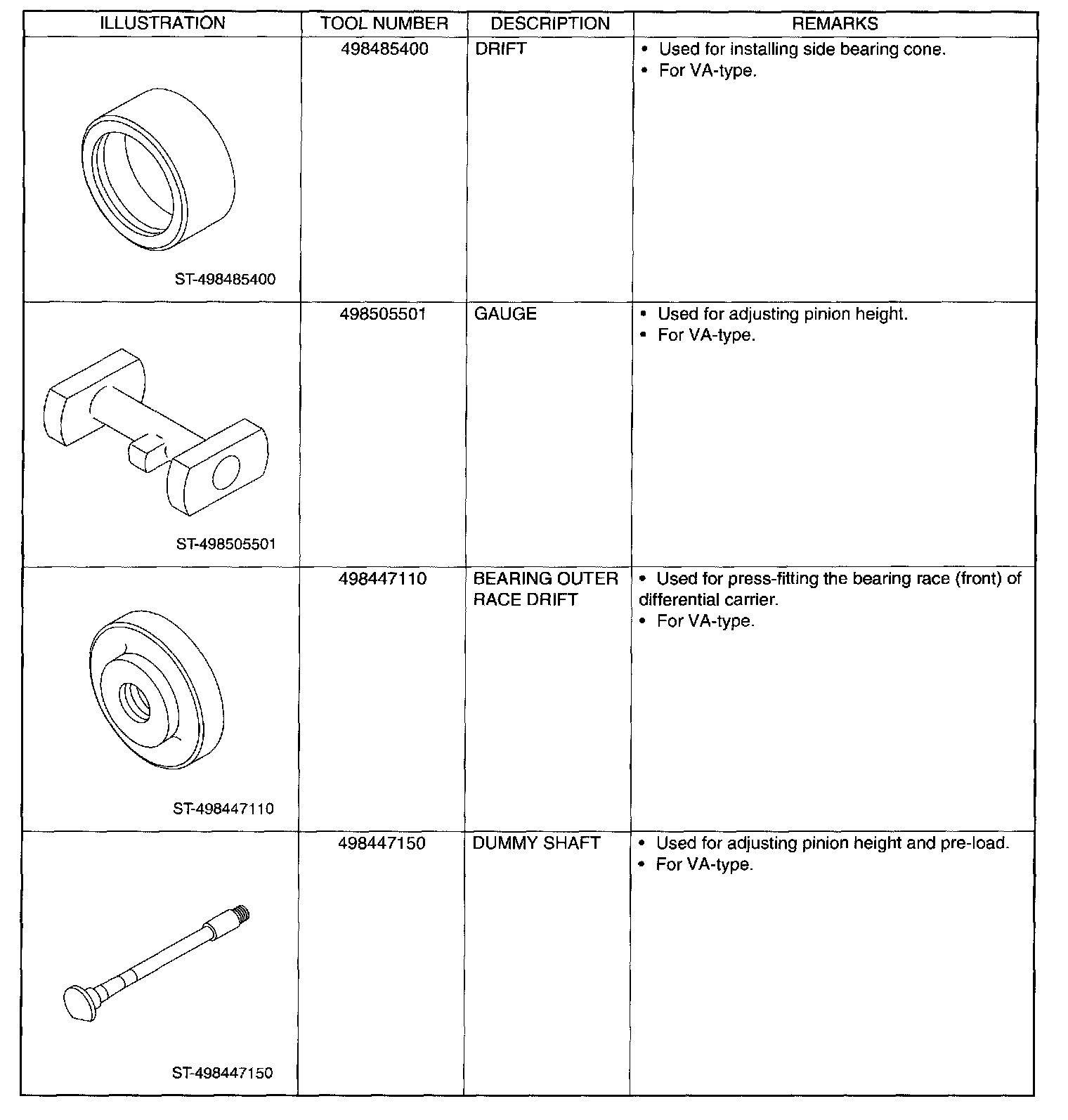

SPECIAL TOOLS





GENERAL PURPOSE TOOLS
