Manual Transmission/Transaxle: Tools and Equipment

PREPARATION TOOL

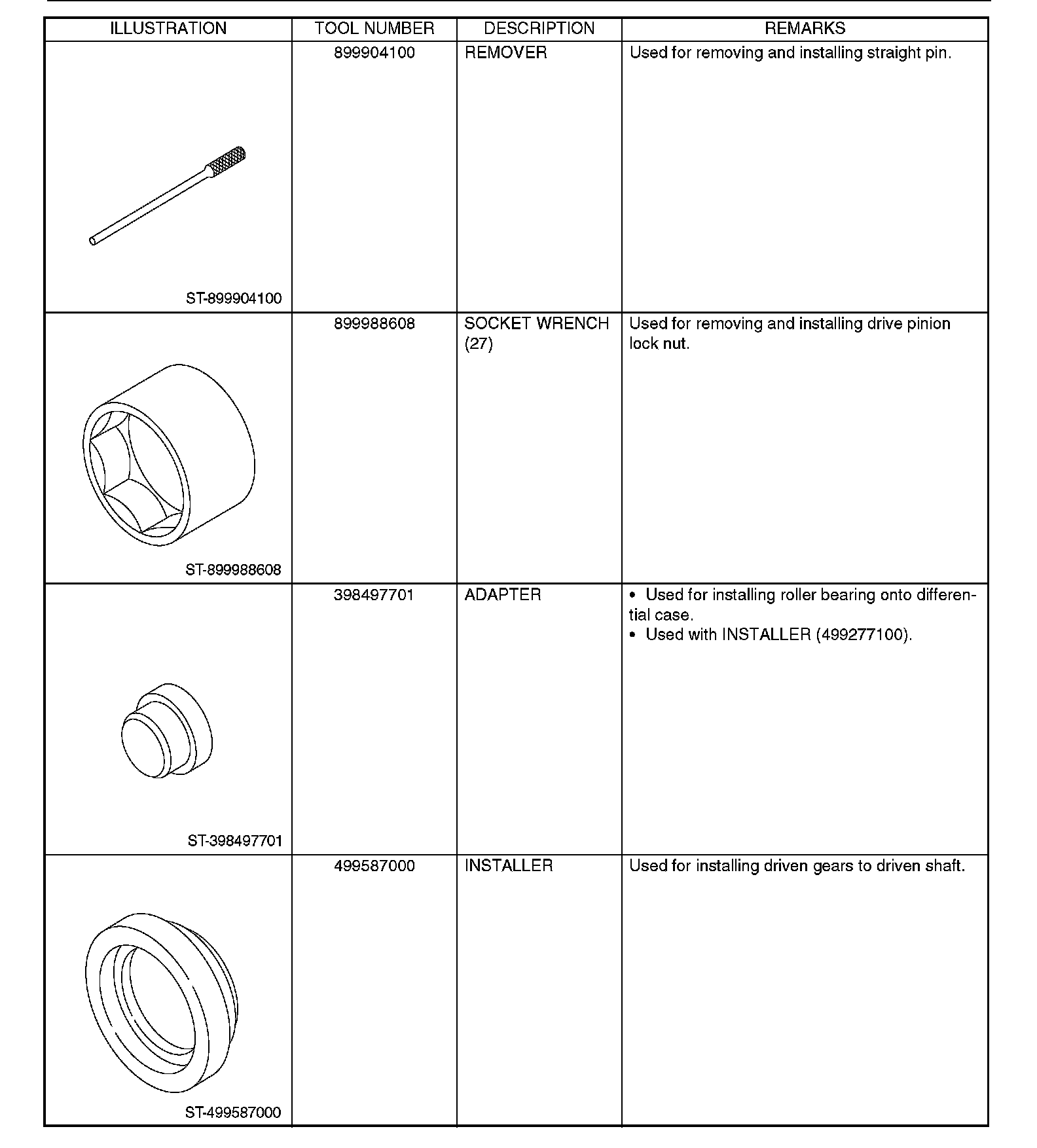

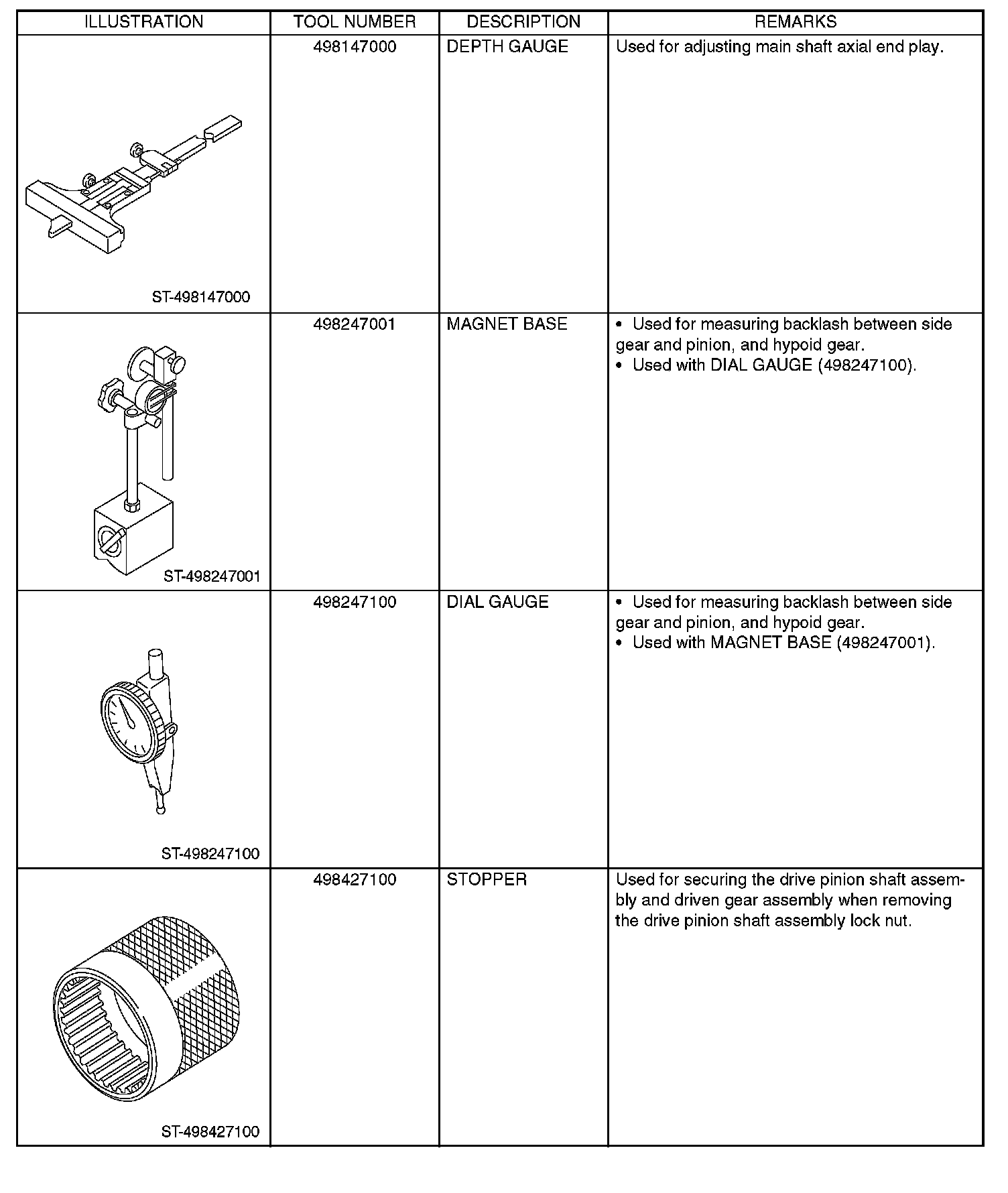

Part 1:

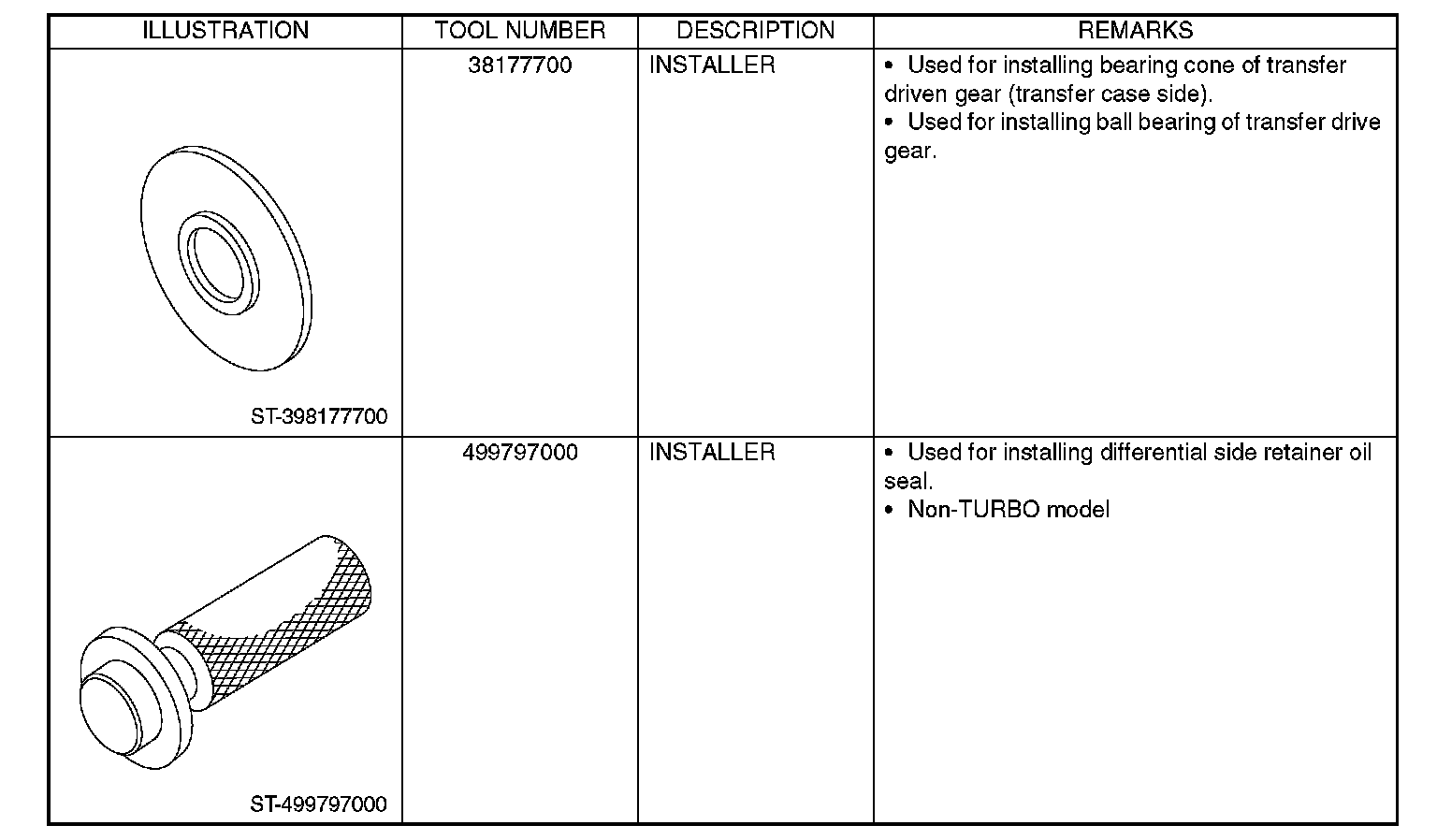

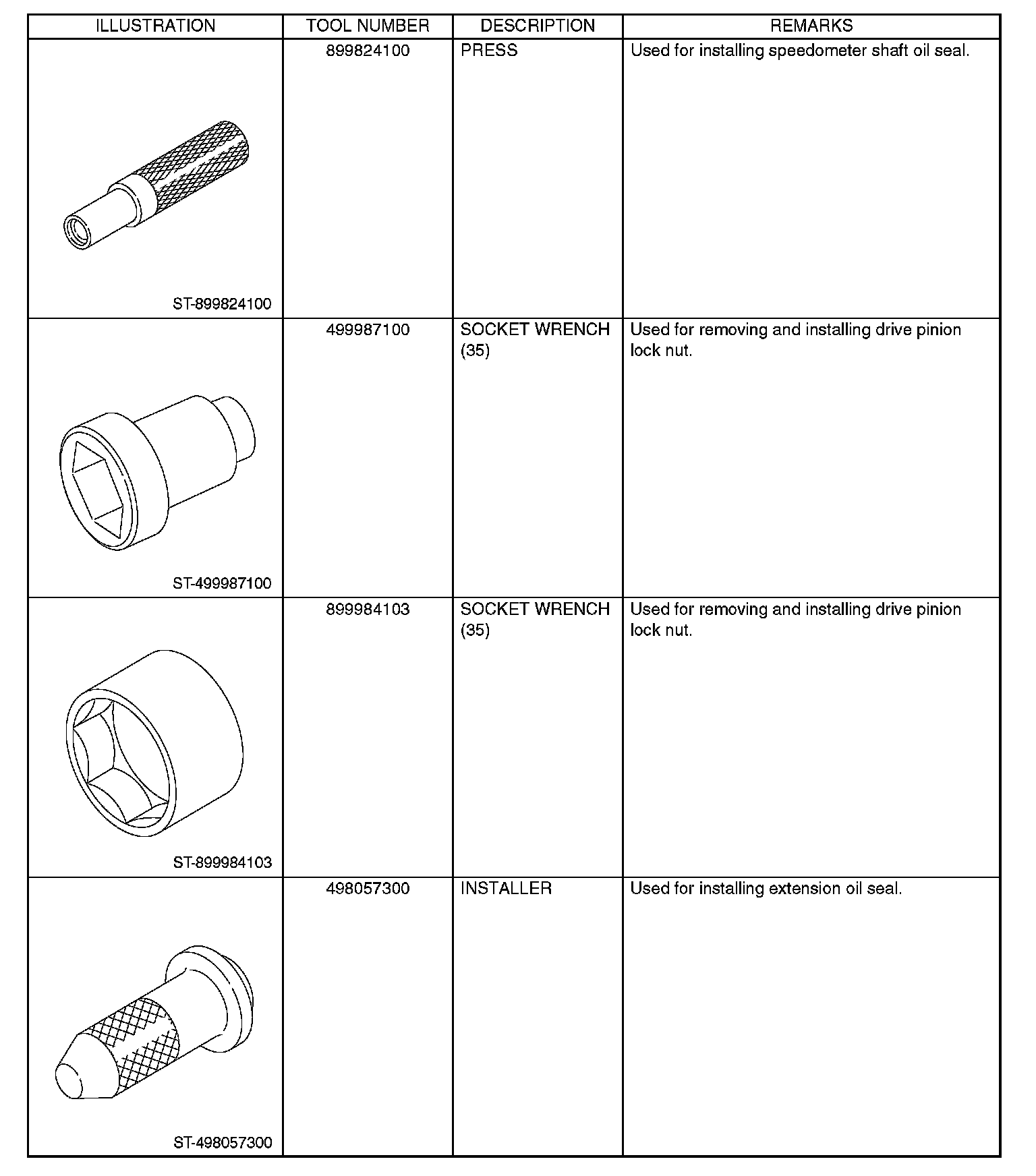

Part 2:

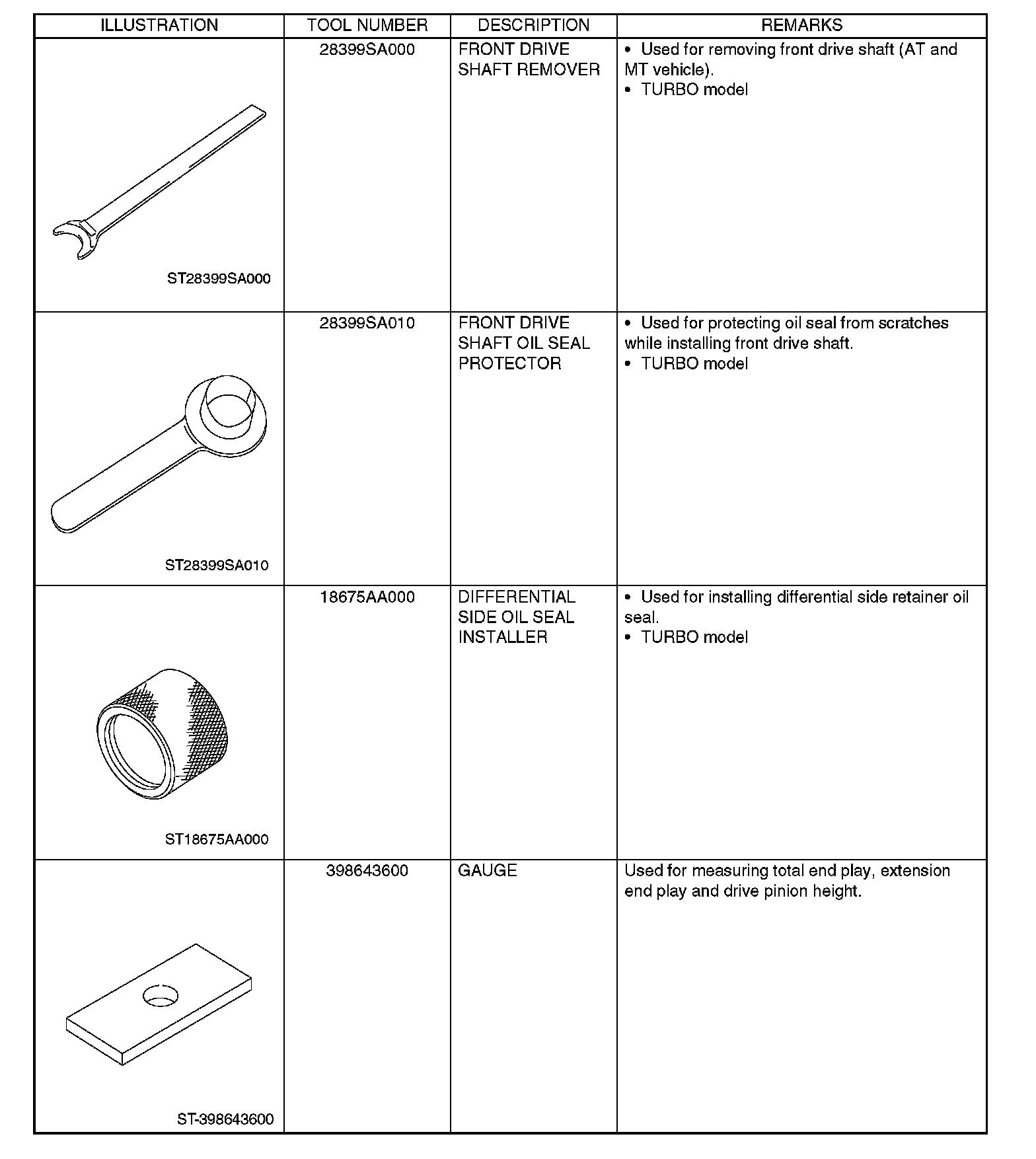

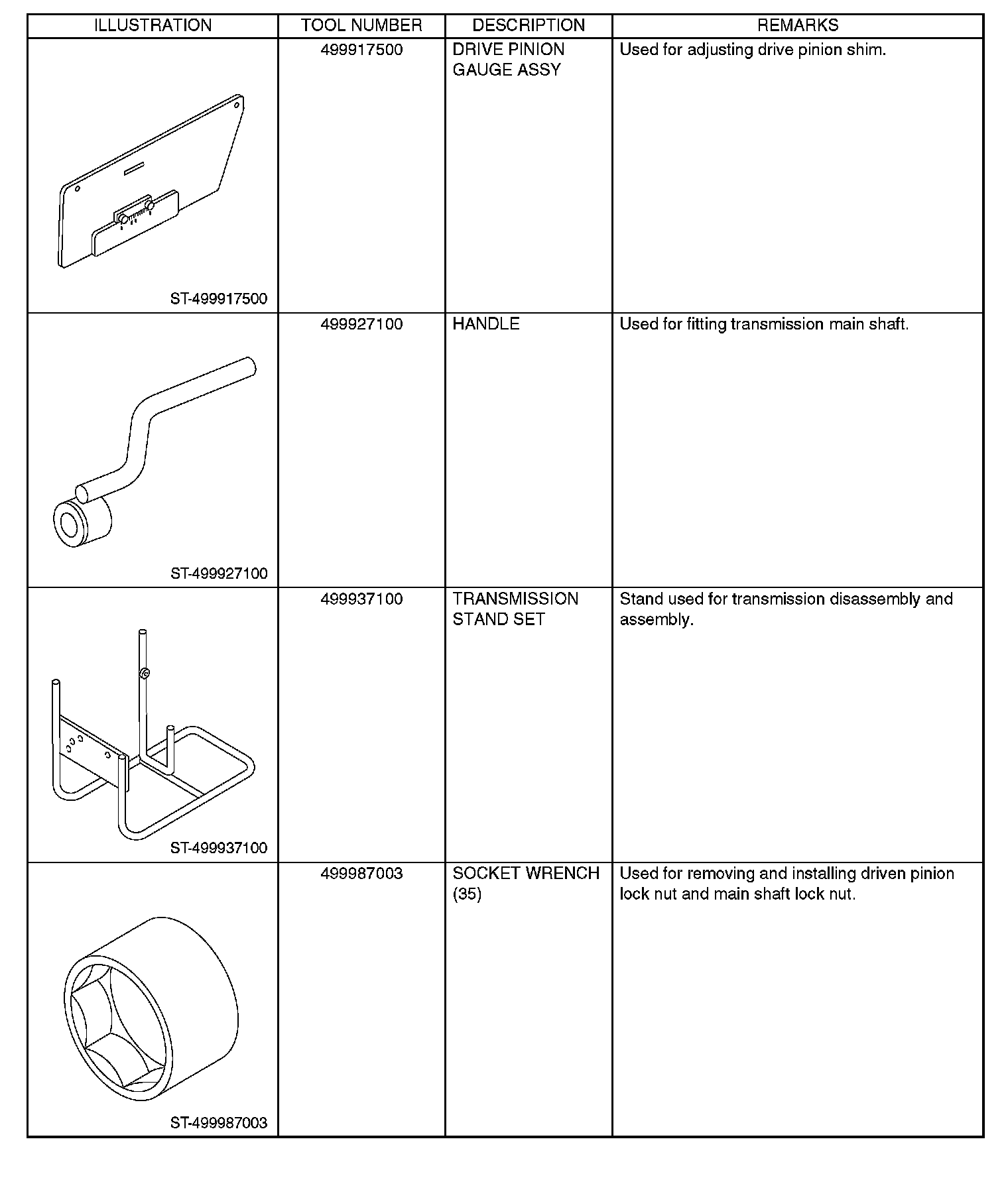

Part 3:

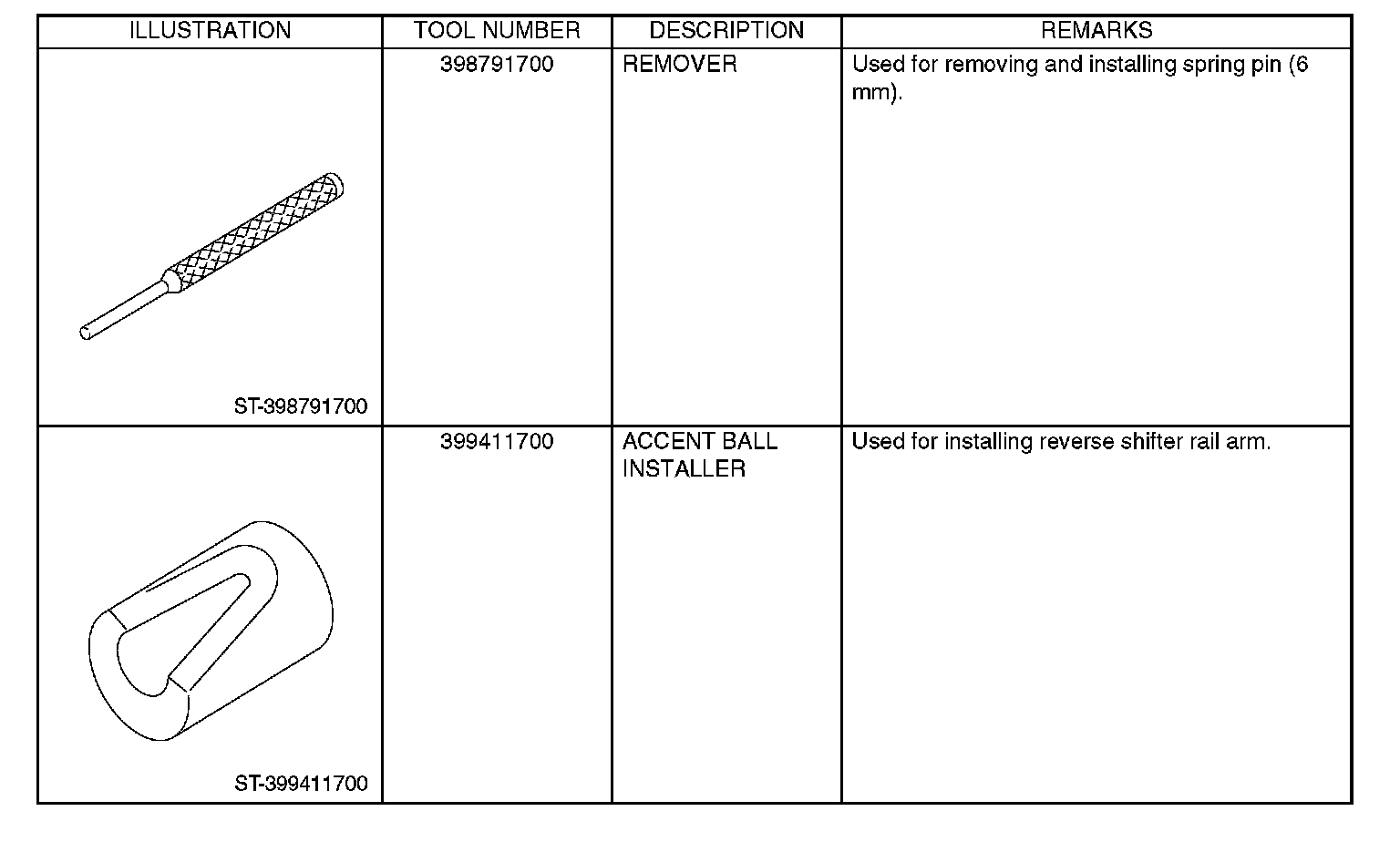

Part 4:

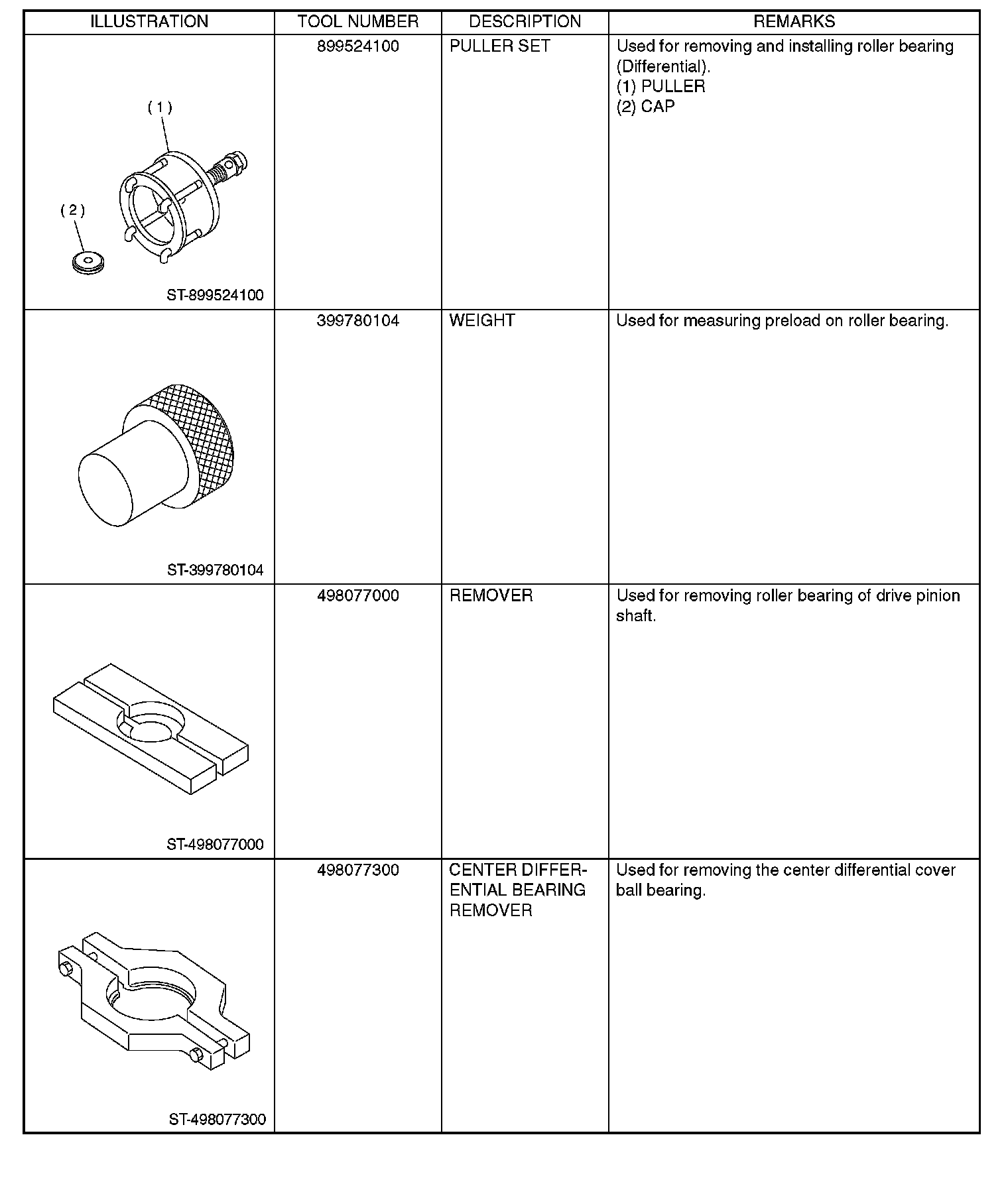

Part 5:

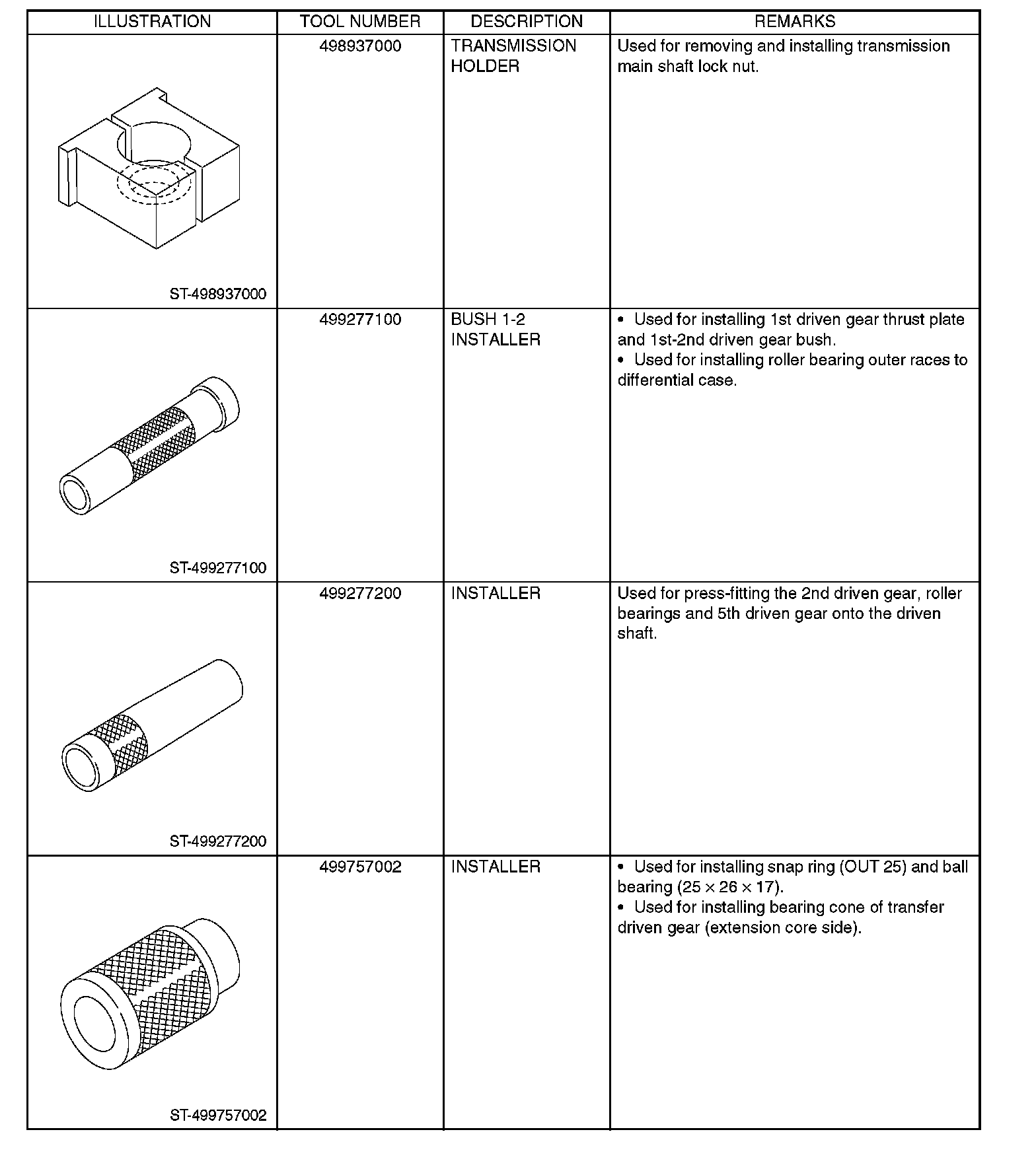

Part 6:

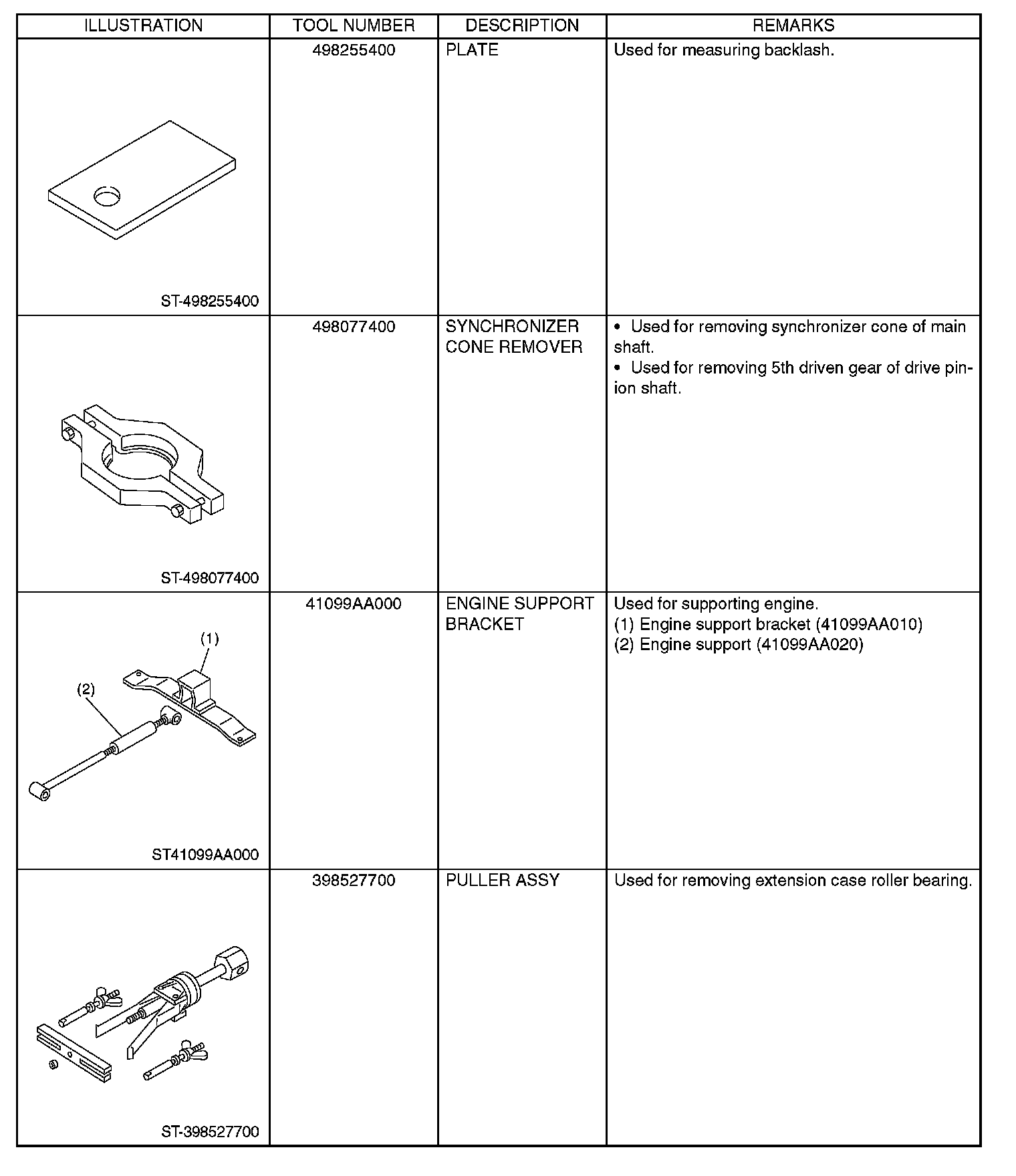

Part 7:

Part 8:

Part 9:

Part 10:

Part 11:

Part 12:

SPECIAL TOOLS

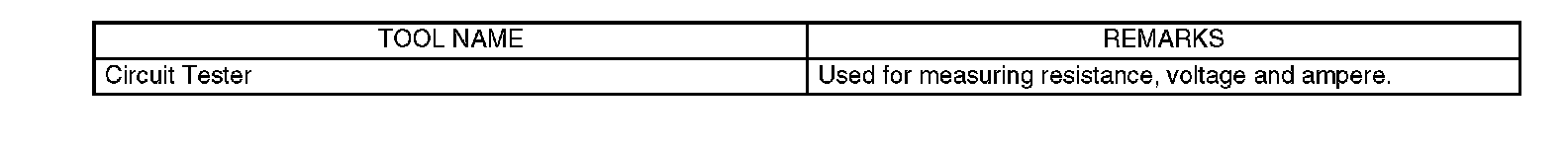

GENERAL PURPOSE TOOLS
