Datum Dimensions: Measurement: Compartment

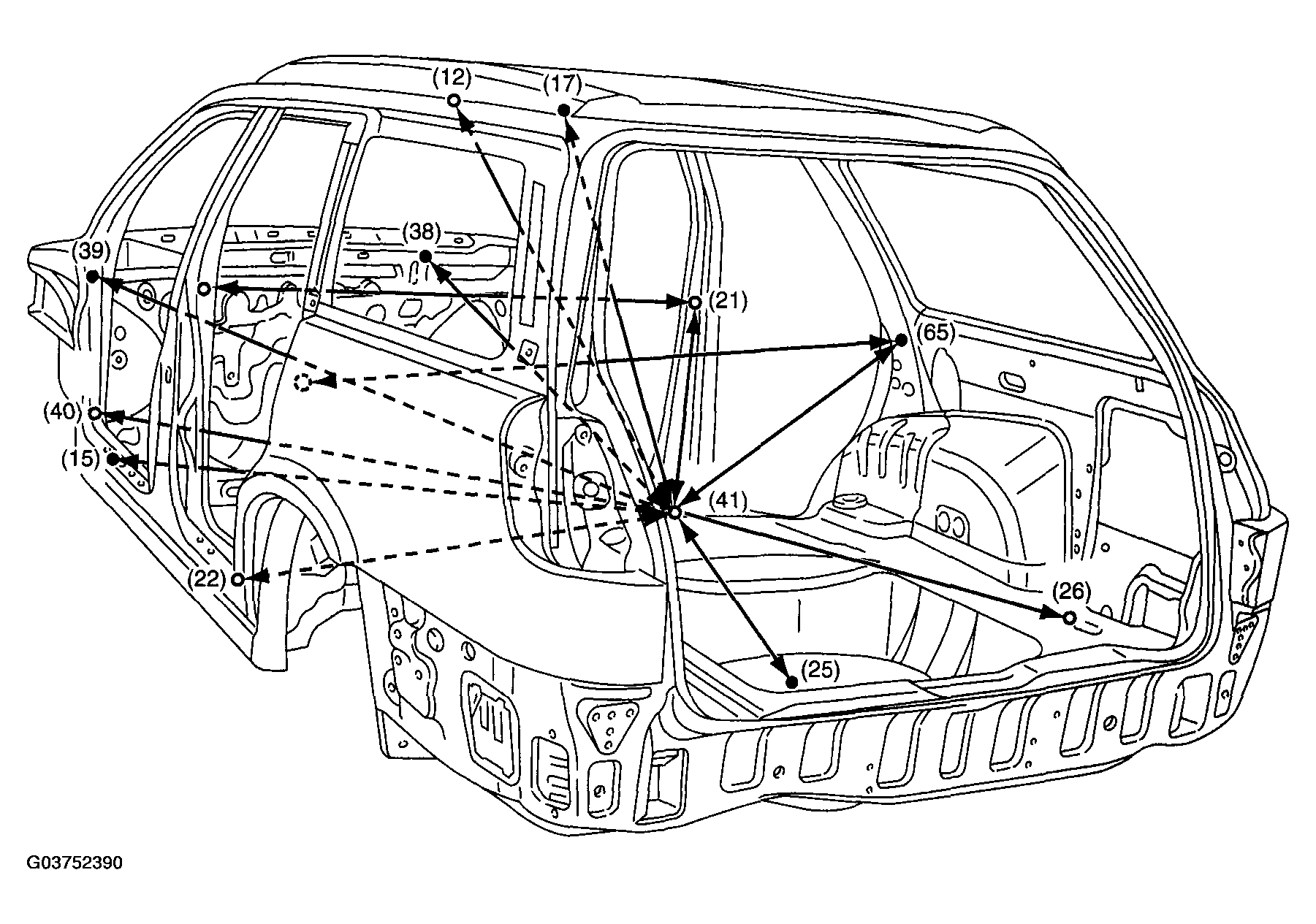

Fig 1: Identifying Compartment
G03752390Courtesy of SUBARU OF AMERICA, INC.
COMPARTMENT SPECIFICATION

Point to point Dimension Point to point Dimension
(21) RH to (21) LH 1,351 (53.19) (41) to (22) LH 738 (29.06)
(15) RH to (15) LH 1,455 (57.28) (41) to (26) RH 1,459 (57.44)
(22) RH to (22) LH 1,455 (57.28) (41) to (26) LH 1,459 (57.44)
(39) RH to (39) LH 1,385 (54.53) (41) to (25) 1,290 (50.79)
(40) RH to (40) LH 1,392 (54.80) (41) to (12) 1,228 (48.35)
(41) to (38) 1,639 (64.53) (41) to (21) RH 940 (37.01)
(41) to (39) RH 1,642 (64.65) (41) to (21) LH 940 (37.01)
(41) to (39) LH 1,642 (64.65) (41) to (17) RH 1,261 (49.65)
(41) to (40) RH 1,531 (60.28) (41) to (17) LH 1,261 (49.65)
(41) to (40) LH 1,531 (60.28) (65) RH to (65) LH 1,307 (51.46)
(41) to (15) RH 1,342 (52.83) (41) to (65) RH 969 (38.15)
(41) to (15) LH 1,342 (52.83) (41) to (65) LH 969 (38.15)
(41) to (22) RH 738 (29.06) Unit: mm (in)
