Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Disengage the two clips, and then turn over the lower mud guard.

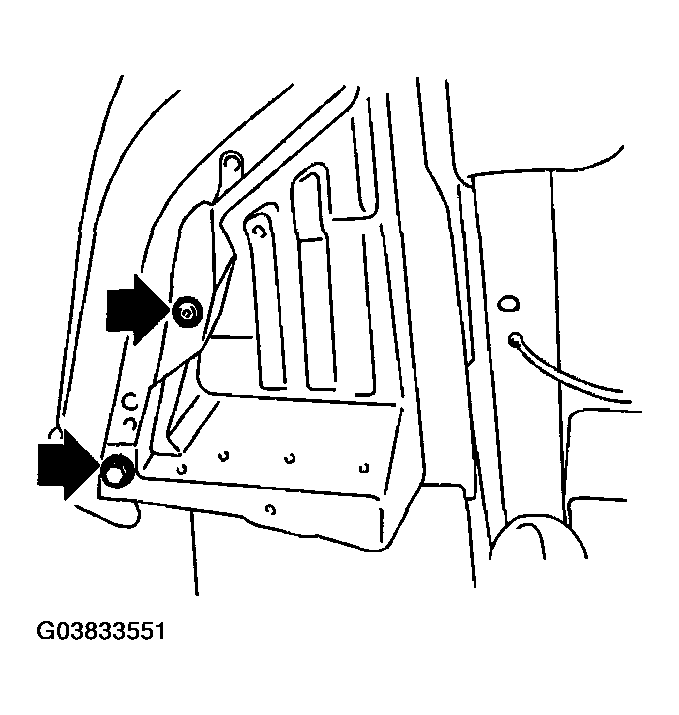

    Fig 1: Disengaging Two Clips
    G03833551Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the harness connector.
  4. Remove the back cover.

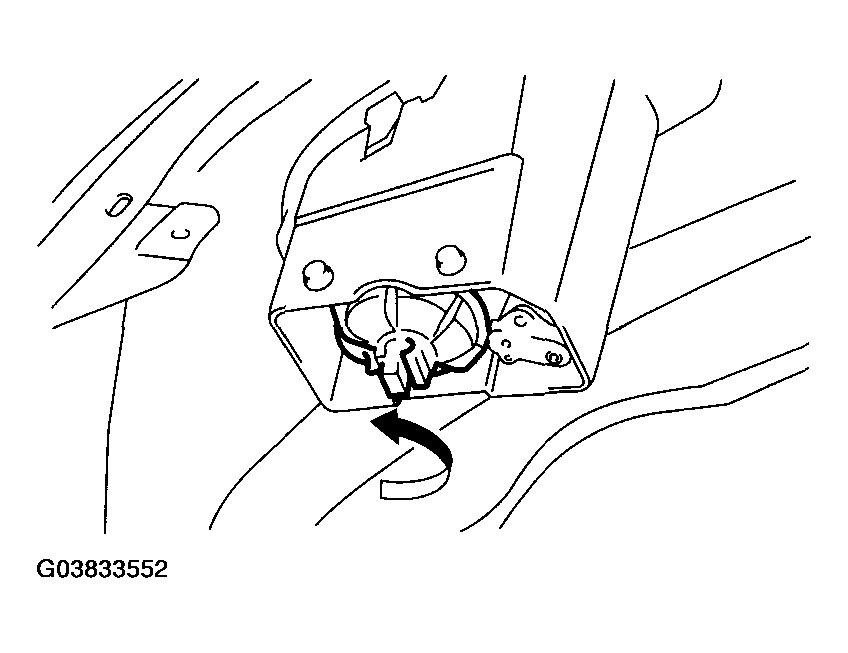

    Fig 2: Removing Back Cover
    G03833552Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spring retainer then detach the fog light bulb.
