Operating Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Apply grease (SUNLIGHT 2: P/N 003602010) to the contact point of the release lever and operating cylinder.
Install in the reverse order of removal.
Before installing the operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of the release lever and operating cylinder.

Tightening torque:

T1:18 N.m (1.8 kgf-m, 13.0 ft-lb)

T2:37 N.m (3.8 kgf-m, 27.5 ft-lb)
- Non-TURBO model

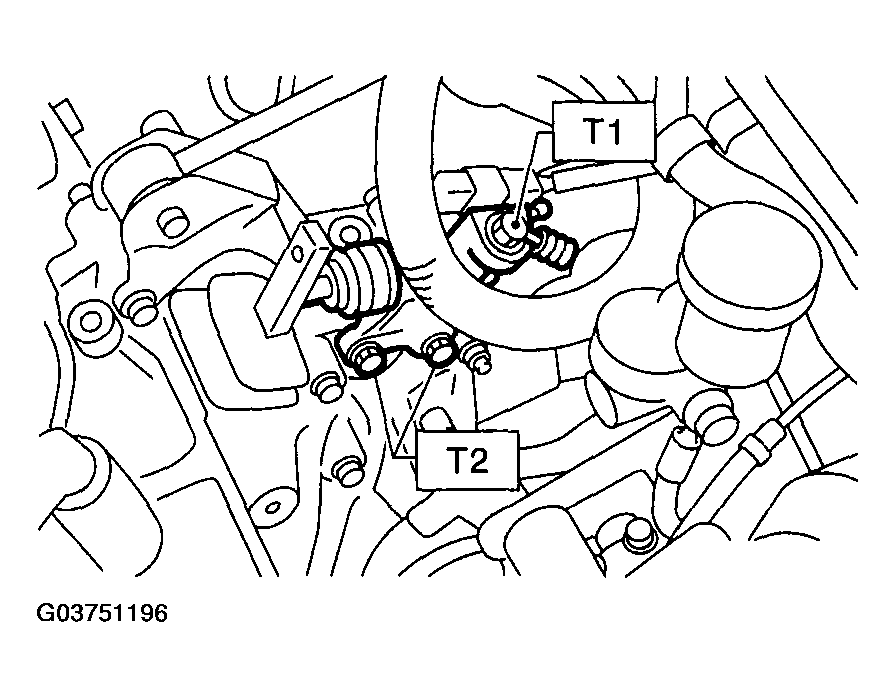

  Fig 1: Installing Operating Cylinder (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

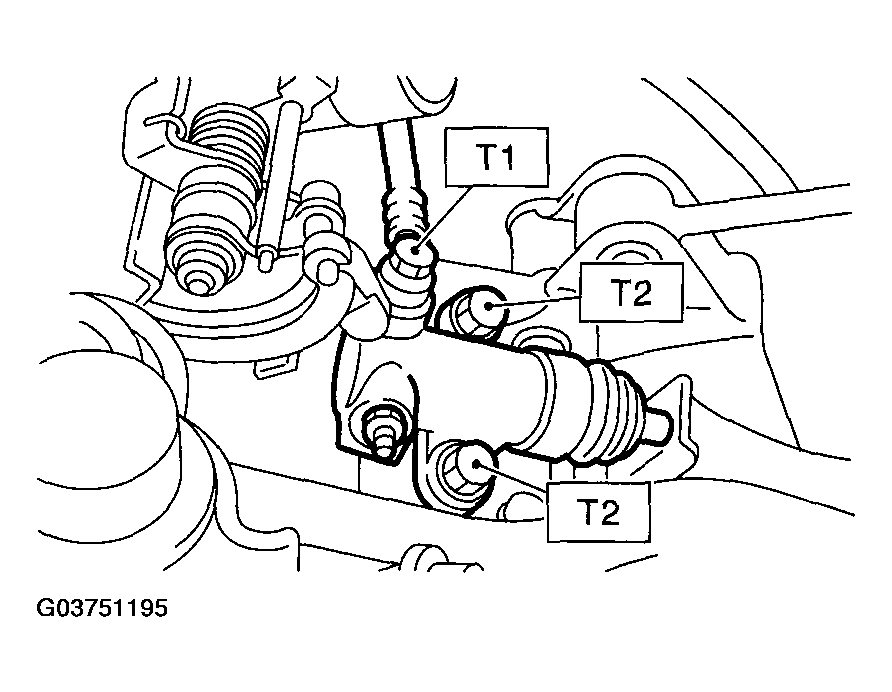

  Fig 2: Installing Operating Cylinder (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly. < Ref. to , CLUTCH FLUID AIR BLEEDING . >
