Reduction Gear With VTD

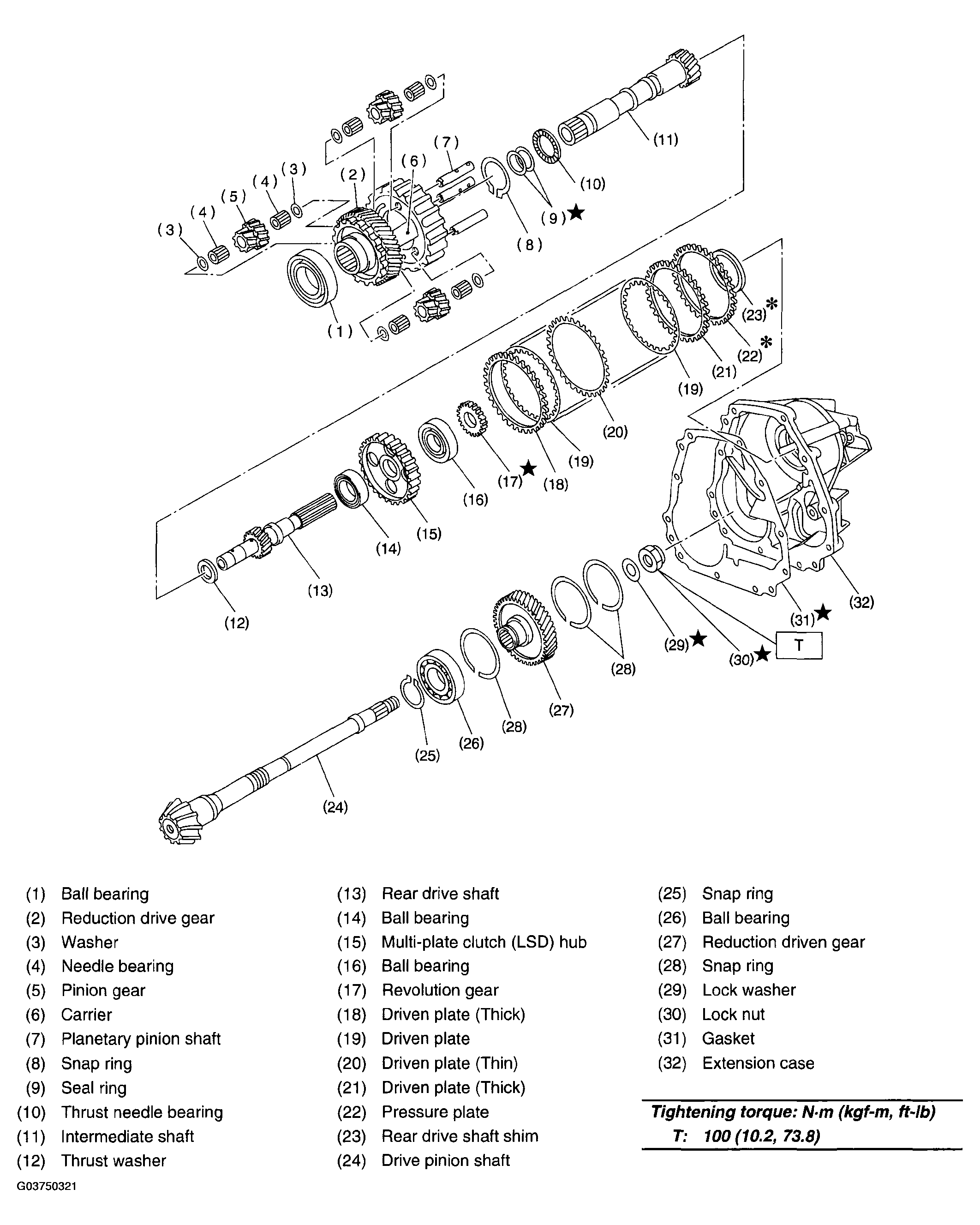

Fig 1: Exploded View Of Reduction Gear With VTD With Torque Specifications
G03750321Courtesy of SUBARU OF AMERICA, INC.
