General Description
>>
Components With Torque Specifications
>>
Shock Absorber
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Shock Absorber

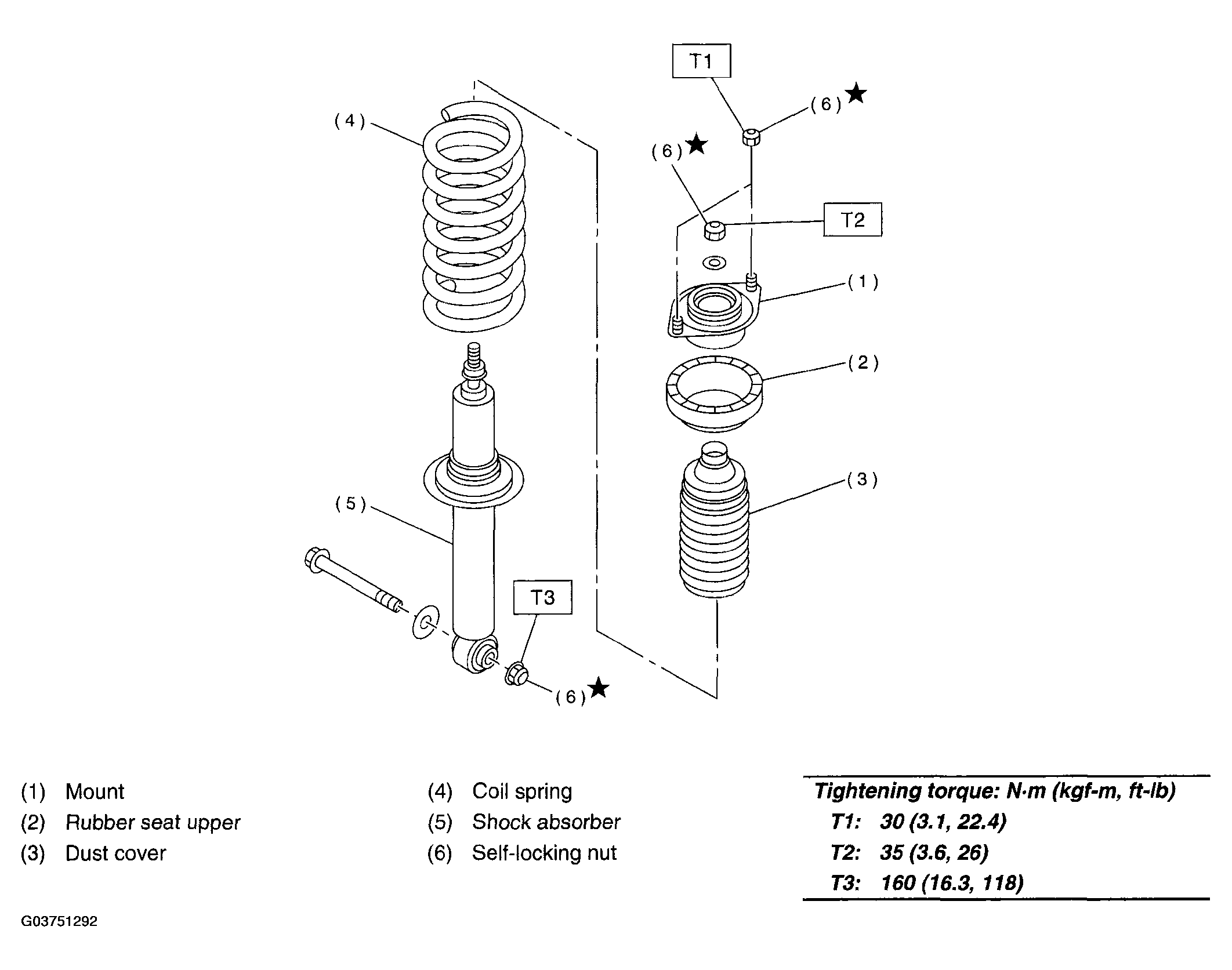

Fig 1: Exploded View Of Shock Absorber With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
