Front Differential

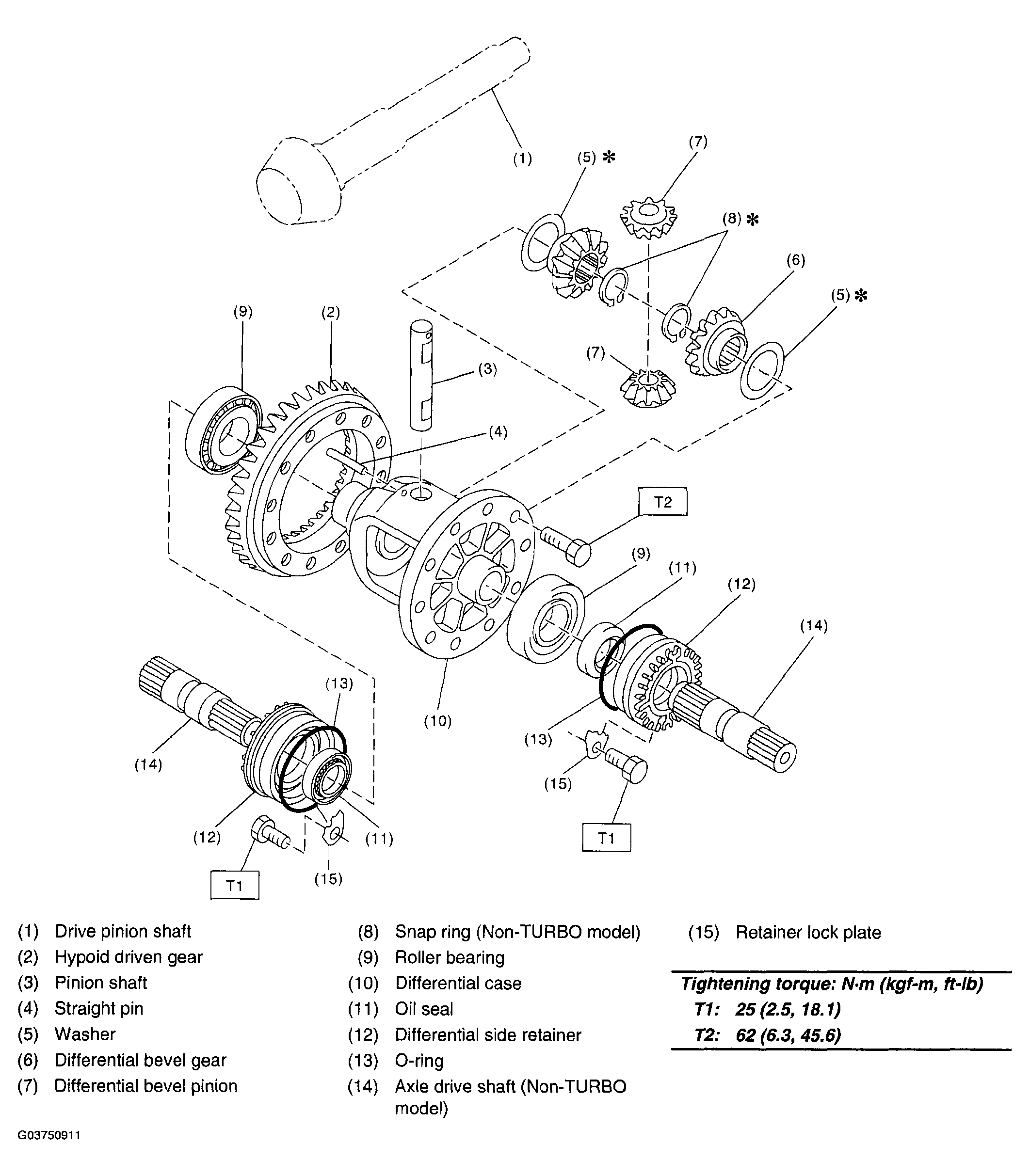

Fig 1: Exploded View Of Front Differential With Torque Specifications
G03750911Courtesy of SUBARU OF AMERICA, INC.
