Communication for Initializing Impossible

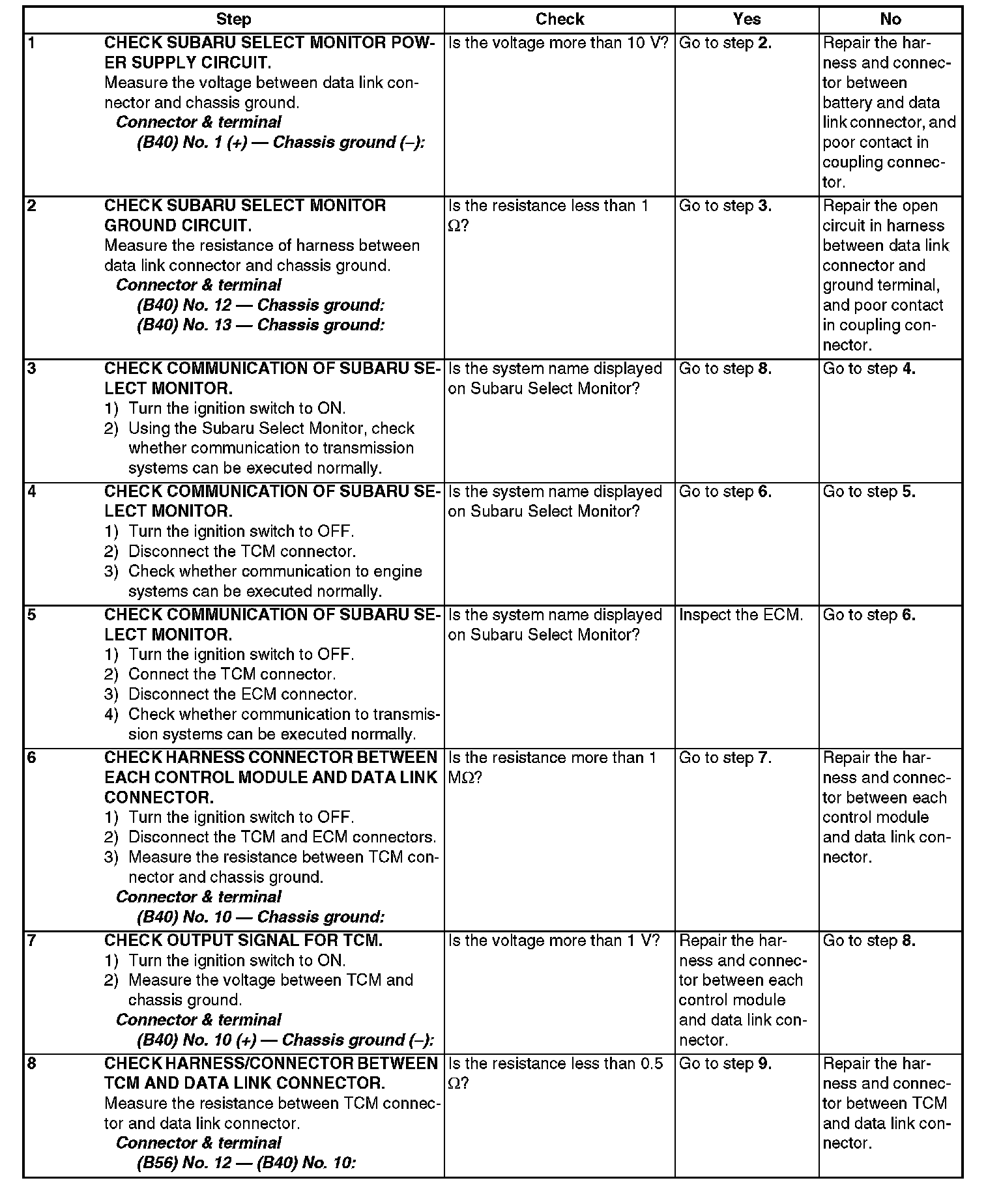

COMMUNICATION FOR INITIALIZING IMPOSSIBLESteps 1 - 8:
Steps 9 - 10:
DIAGNOSIS:
^ Faulty harness connector
TROUBLE SYMPTOM:
^ Subaru Select Monitor communication failure

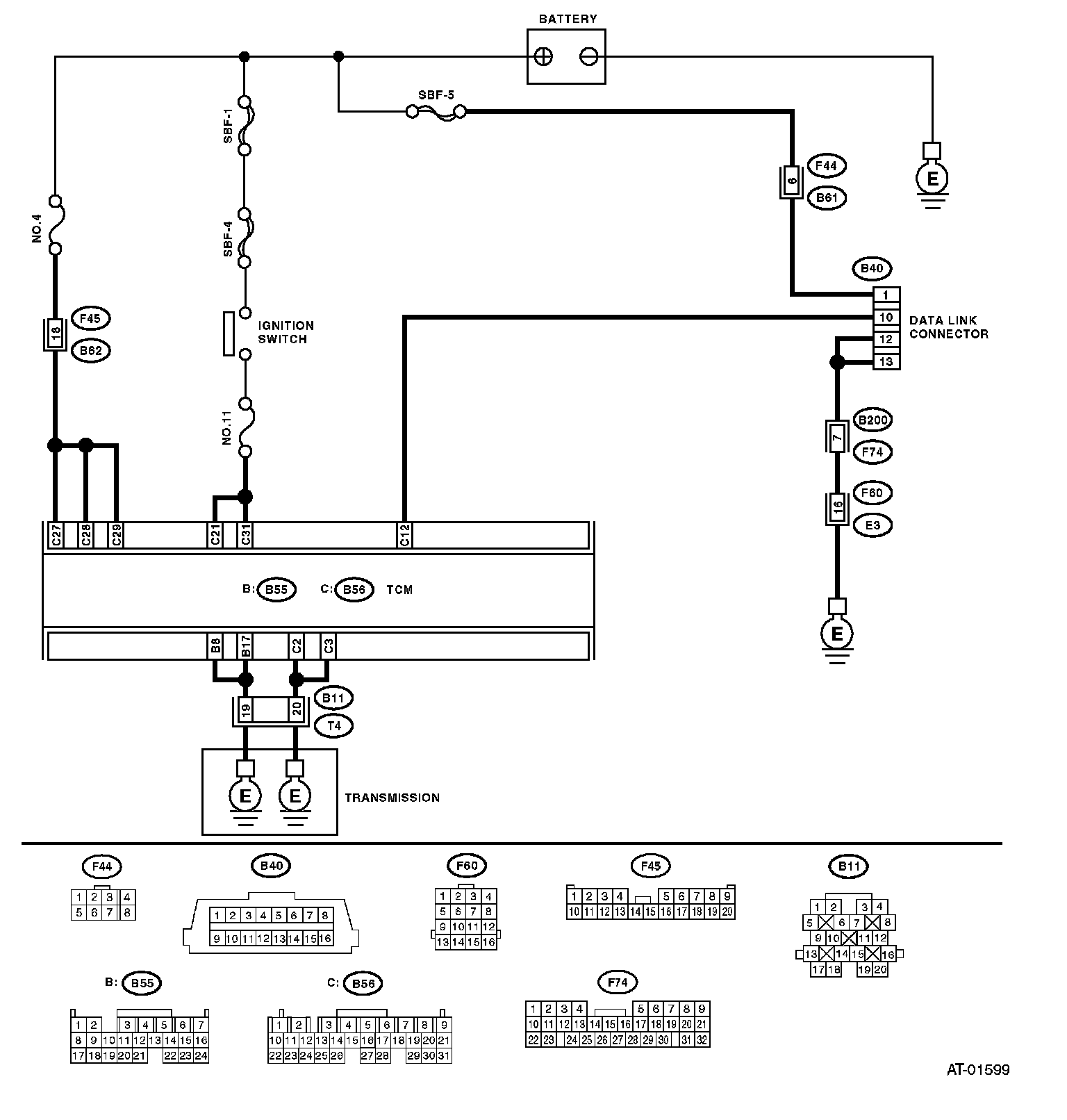

WIRING DIAGRAM
DIAGNOSIS:
^ Faulty harness connector
TROUBLE SYMPTOM:
^ Subaru Select Monitor communication failure
WIRING DIAGRAM
